COMPX eLock NARC iD Instructions Manual

Central storage unit
Hide thumbs Also See for eLock NARC iD:
Table of Contents

Advertisement

Quick Links

Download this manual
NARC iD
Central Storage Unit (CSU)
Thank you for purchasing CompX NARC iD CSU with
built-in CompX eLock. The information contained in
these instructions is intended to serve as a guide to
allow NARC iD CSU to be quickly and easily put into
service. CompX eLock can be configured to work in

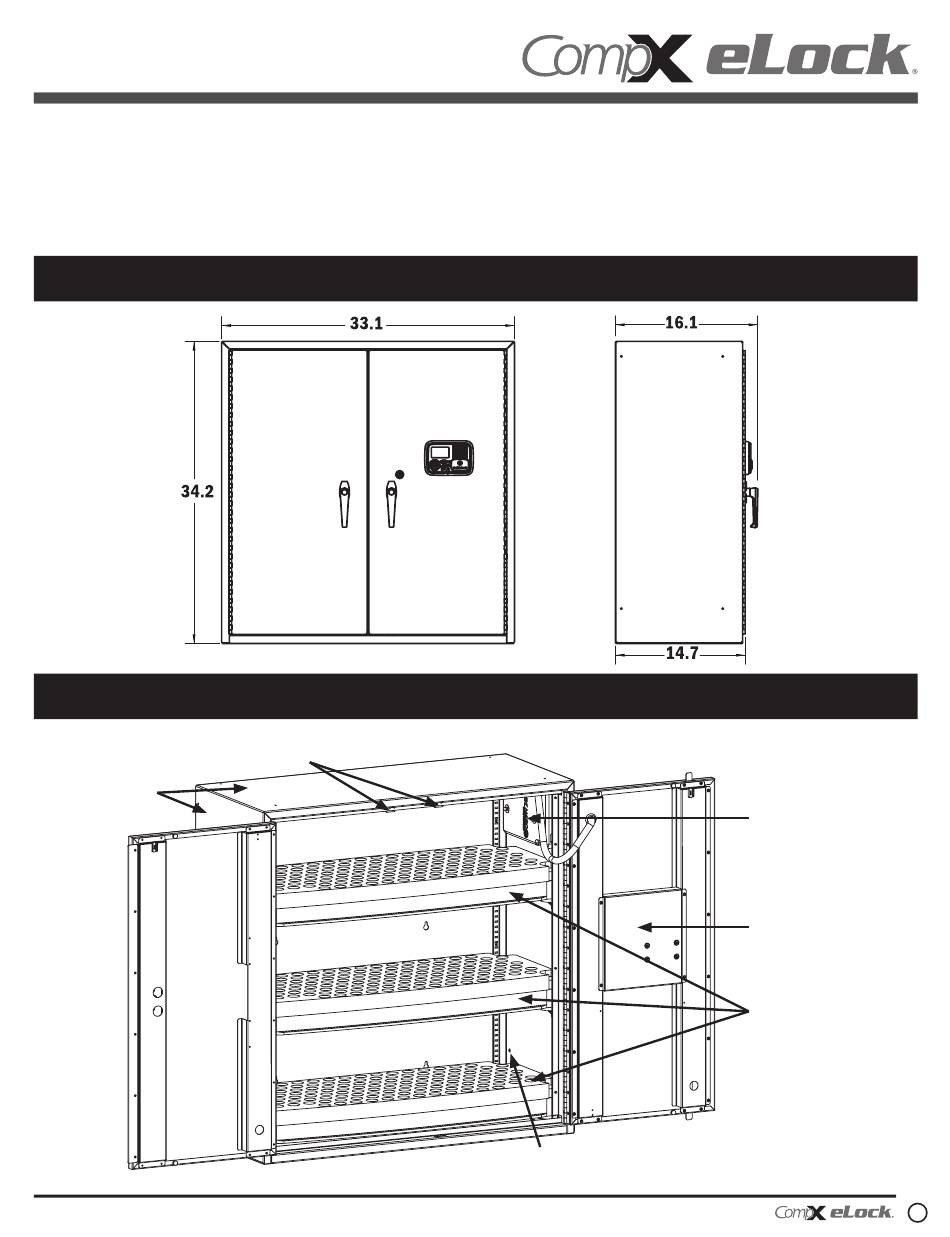

Central Storage Unit dimensions with CompX eLock installed
Central Storage Unit dimensions with CompX eLock — components
RFID antenna
(inside)
NARC ID CENTRAL STORAGE UNIT (CSU) — Instructions
Door position
switches
conjunction with existing 802.11b/g/n networks. For
complete set up instructions for networked and stand-
alone eLocks, please see the "Help" section in CompX's
LockView v5iDPro software.
Power supply
connector
Control
electronics
Integrated
motorized
latch
Three shelves
with foam
capsule holders
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eLock NARC iD and is the answer not in the manual?

Questions and answers

Related Manuals for COMPX eLock NARC iD

Summary of Contents for COMPX eLock NARC iD

  • Page 1 NARC iD Central Storage Unit (CSU) Thank you for purchasing CompX NARC iD CSU with conjunction with existing 802.11b/g/n networks. For built-in CompX eLock. The information contained in complete set up instructions for networked and stand- these instructions is intended to serve as a guide to alone eLocks, please see the “Help”...

  • Page 2: Installation

    NARC iD Central Storage Unit — continued What’s in the box? Installation w 1 - NARC iD CSU box NARC iD CSU can be installed using the 6 predrilled key holes and supplied #10 x ¾ Phillips pan head screws. Be w 3 –...
  • Page 3 NARC iD Central Storage Unit — continued NARC iD controller button layout Dot matrix LCD Network button (blue LED) “UP” button “NEXT/SELECT” button “BACK/CANCEL” button “MENU” button “DOWN” button + Button - Button 10. Low battery indicator (yellow LED) 11. Alpha-numeric keypad 12.

  • Page 4: Unit Features

    “Setup code needed to enter setup mode” At this screen, please follow the CompX eLock Database & Network type the Setup Code and press ENTER. CompX LockView Configuration & Install Manual and the CompX LockView Software v5 must be installed and the eLock must be in Software Instruction Manual before proceeding.
  • Page 5 NARC iD Central Storage Unit — continued There are two methods that can be used to add eLocks to **Once the Lock Name has been chosen in LockView, it can the LockView software: not be changed. Please be sure the name that is chosen is the one that will be used in the future.

  • Page 6: Date/Time Format

    NARC iD Central Storage Unit Interaction Guide Lock Menu The available menu choices are: Date/Time Format To enter the Lock Menu press the MENU button on the Brightness keypad. Contrast Beep Volume RFID Test WiFi Test Use the UP and DOWN buttons to scroll through the menu choices and hit NEXT/SELECT to activate one.

  • Page 7: Beep Volume

    NARC iD Central Storage Unit Interaction Guide — continued Brightness Beep Volume Use the +, - buttons to choose the brightness of the LCD Use the +, - buttons to choose the Beep Volume. Alternately, display. Alternately, choose 1-9 directly to choose the choose 1-9 directly to choose the Beep Volume.
  • Page 8 NARC iD Central Storage Unit Interaction Guide — continued WiFi Test NOTE: WiFi module in the NARC iD CSU system must be configured and programmed before the test. See LockView Database & Network Configurations & Installation Manual for details. This screen will turn on the WiFi system and connect to the network.
  • Page 9 NARC iD Central Storage Unit Capsule Assembly Instructions capsule controlled substance cap with RFID tag Put the controlled substance into the capsule, verifying that the narcotic is the same as what is Line up the slots listed on the RFID in the cap and tag, then put the capsule (to make...
  • Page 10 NARC iD CSU Capsule Assembly Instructions — continued To ensure the locking tab is fully inserted, you must hear and feel a click. Place capsules in tote or CSU cabinet. Close lid. Each tote can carry a total of 15 controlled substances.

  • Page 11: Normal Operation

    Type a valid PIN code or present a valid card to the credential the reason the tag is missing, see below). reader to access the NARC iD CSU. (See CompX LockView software instruction manual for information regarding adding valid users.) Open the door and insert a tote containing RFID enabled capsules with tags.
  • Page 12 NARC iD Central Storage Unit Operation — continued Remove some of the controlled substances from the totes If a controlled substance is being transferred out of the CSU (in the illustration below, two tags are being removed). to another NARC iD box, please choose TRANSFER. Access the NARC iD CSU system with a valid credential and return the tote to the CSU.
  • Page 13 NARC iD Central Storage Unit Operation — continued In the previous examples, the user removed the entire contents of the NARC iD CSU in the first step by removing the tote, which contained all controlled substances. The NARC iD CSU system assumed that the tote would be returning in the near future with some controlled substances consumed and some controlled substances still intact.
  • Page 14 NARC iD Central Storage Unit Operation — continued KEY OVERRIDE MALFUNCTIONING TAGS If the mechanical key is used to access the NARC iD CSU If a tag/capsule/cap has not been properly assembled, system, the LCD will immediately show KEY OVERRIDE. If any the screen will say MALFUNCTIONING TAG –...
  • Page 15 NARC iD Central Storage Unit Accessories Caps (sold in boxes of 50; includes tags): Totes (sold individually with no caps or capsules): RF-CAP-FENTA (blue for fentaNYL) RF-TOTE-SMALL (small) RF-CAP-MIDAZ (orange for Midazolam) RF-CAP-MORPH (purple for Morphine) RF-CAP-HYDRO (green for HYDROmorphone) RF-CAP-KETAM (yellow for Ketamine) RF-CAP-MEPER (tan for Meperidine) RF-CAP-DIAZE (gray for diazePAM)
  • Page 16 Part #: 334346-0000-00 Copyright 2020 © CompX Security Products / 847.752.2500 / compx.com / 715 Center St., Grayslake, IL 60030 Any companies and/or products referred to herein are marks or registered trademarks of their respective companies, owners and/or mark holders.
