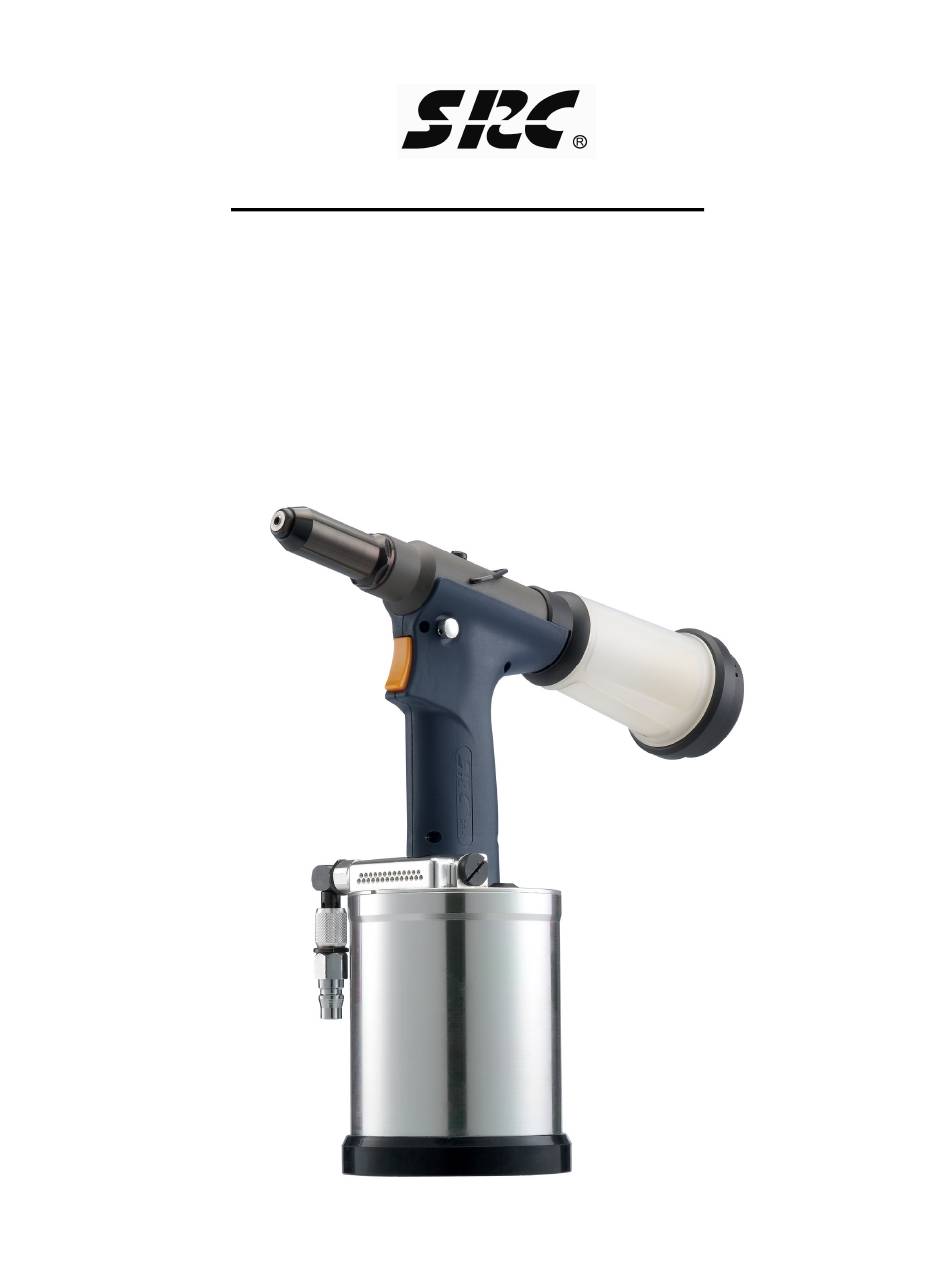

- Page 1 SR-3 Instruction Manual Page 1 of 11...
- Page 2 Contents Tool’s Characteristic ---------------------------------------------------------------3 Technical Parameter ---------------------------------------------------------------4 Safety Instructions ------------------------------------------------------------------5 Preparation ---------------------------------------------------------------------------6 Operating Demonstrate ------------------------------------------------------------7 Maintenance and Service ---------------------------------------------------------8-9 Exploded Drawing ------------------------------------------------------------------10 Part List -------------------------------------------------------------------------------11 Page 2 of 11...
- Page 3 Characteristic: ■ Light Weight ■ High-Speed Operation, Big Power ■ Low Noise ■ Small Shock ■ Long Stroke ■ Ergonomics Handle ■ Easy Maintenance ■ Sets up to diameter 6.4mm(1/4”) standard rivets in all materials. ■ Designed for Diameter 6.4mm structural high strength blind rivet i.e. Monobolt, Interlock etc.
- Page 4 Technical Parameter： Riveting Capacity： Diameter 4.0mm~6.4mm all material standard rivet 6.4mm High Strength Structural Blind Rivet Air Pressure： 5~7 KG Stroke： 26 mm Pull Force@ 5Bar： 15 KN Weight： 1.7 KG Page 4 of 11...
- Page 5 Safety Instructions： This instruction manual must be read with particular attention to the following safety direction, by any person installing, operating, or servicing this tool. Never dismantle the tool without first having thoroughly studied the instructions given in this User Manual and applying them. Always use the tool in accordance with the specified safety instructions.
- Page 6 Preparation： The tool must be connected to an air filter. This unit filters the compressed air to separate dirt and condensate. A pressure regulator with a preferred setting of 6bar must be installed. Use dry and clean materials (hose, couplings, fittings, etc.) to connect the tool to the filter.
- Page 7 Operating Process： 1. Connect the air supply then switch ON/OFF valve (48) to “ON” position. （ （ （ （ see Fig 1） ） ） ） Fig 1 2 ． ． ． ． Adjust vacuum switch clockwise counter-clockwise. Volume of air will result rivet sucked well by tool at any orientation.
- Page 8 Priming： When the stroke may be reduced and rivets are not fully placed by one operation of the trigger after 100,000 cycles, the tool need to oil. Please use the attached a bottle of lubrication oil in the box. 1．Disconnect air supply to tool and switch ON/OFF valve(48) to “OFF” position. 2．Remove seal screw (84) and seal (83).(see Fig 3) Fig 3 3.
- Page 9 Head Cleaning and Oiling： Every 10.000 cycles the tool should be oiling one drop of lubricating oil on the Jaws. (see Fig 5) - Disconnect air supply and air valve switch. - Dismantle the riveter head by wrench. Fig 5 One drop oil on the Jaws Use wrench to disassemble head components and cleaning these parts ，...
- Page 10 Page 10 of 11...
- Page 11 PART NO. DESCRIPTION PART NO. DESCRIPTION SR-3-01 Nose piece SR-3-44 on/off base SR-3-02 O-Ring (meas.9*1) SR-3-45 O-Ring (meas.6*1) SR-3-03 Nosepiece casing SR-3-46 Air interface SR-3-04 O-Ring (meas.22*2) SR-3-47 Tie ring SR-3-05 Jaw housing SR-3-48 Air tube SR-3-06 Jaws(1set=3pcs) SR-3-49 Regulatable button...
