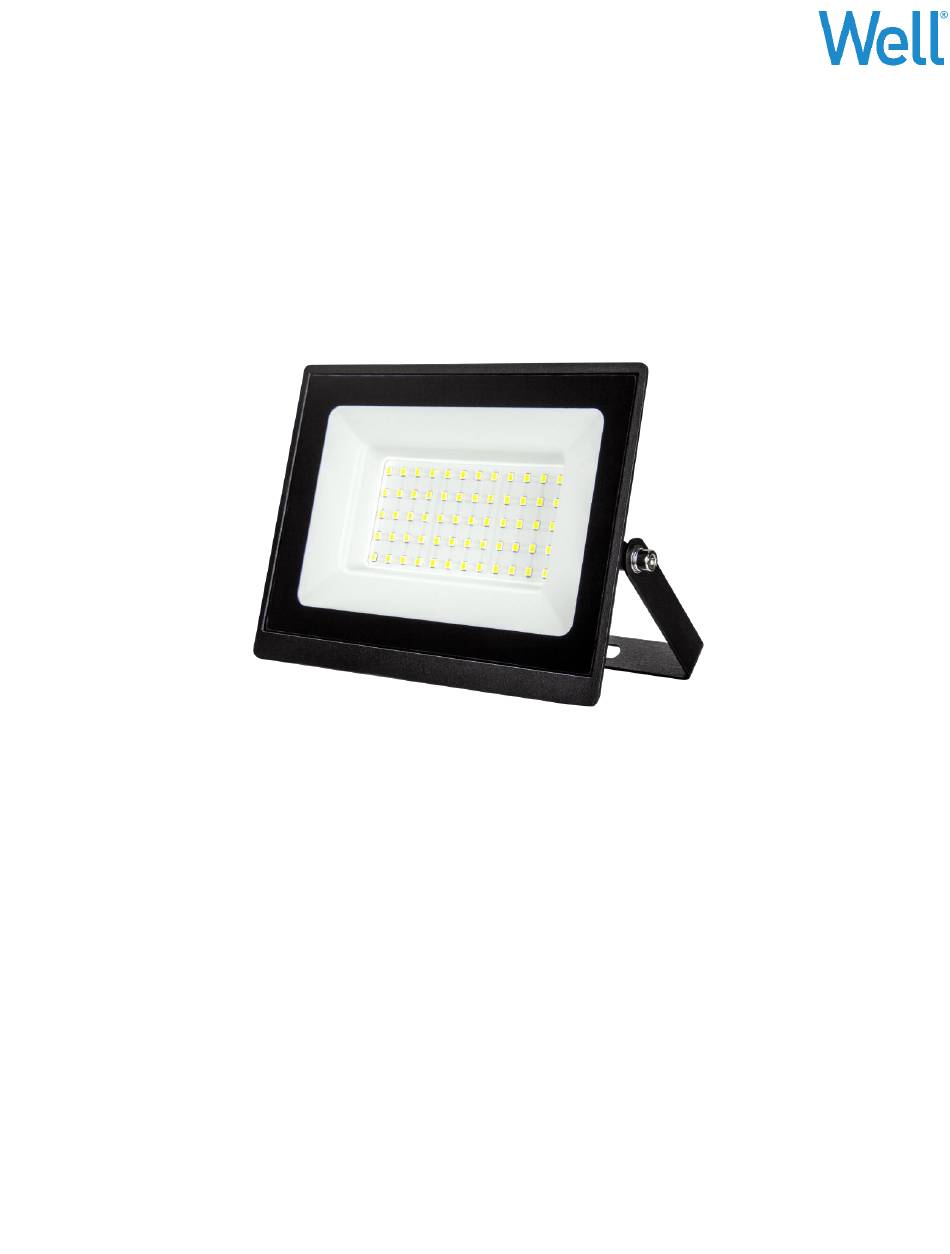

- Page 1 INSTRUCTION MANUAL LED FLOODLIGHT Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: LEDFC-TYMON30BK-WL, LEDFC-TYMON50BK-WL...
- Page 2 As a light source, LED panel with SMD-type diodes was used to save a significant amount of energy compared to conventional frames, with the same light parameters. The light source shall be replaced by the entire lighting fixture. SPECIFICATIONS: Model LEDFC-TYMON30BK-WL LEDFC-TYMON50BK-WL Voltage: 220-240V Luminous flux:...
- Page 3 Connect the power line to Connect the mains cable to the the waterproof coupler terminal (not included): (not included.) L - Phase wire (brown) N - Neutral conductor (blue) Ground (yellow-green) 1. Stabilize the frame in the selected position the power supply to the mains is to be connected shall be deactivated in order to protect against accidental connection of the voltage! 2.
