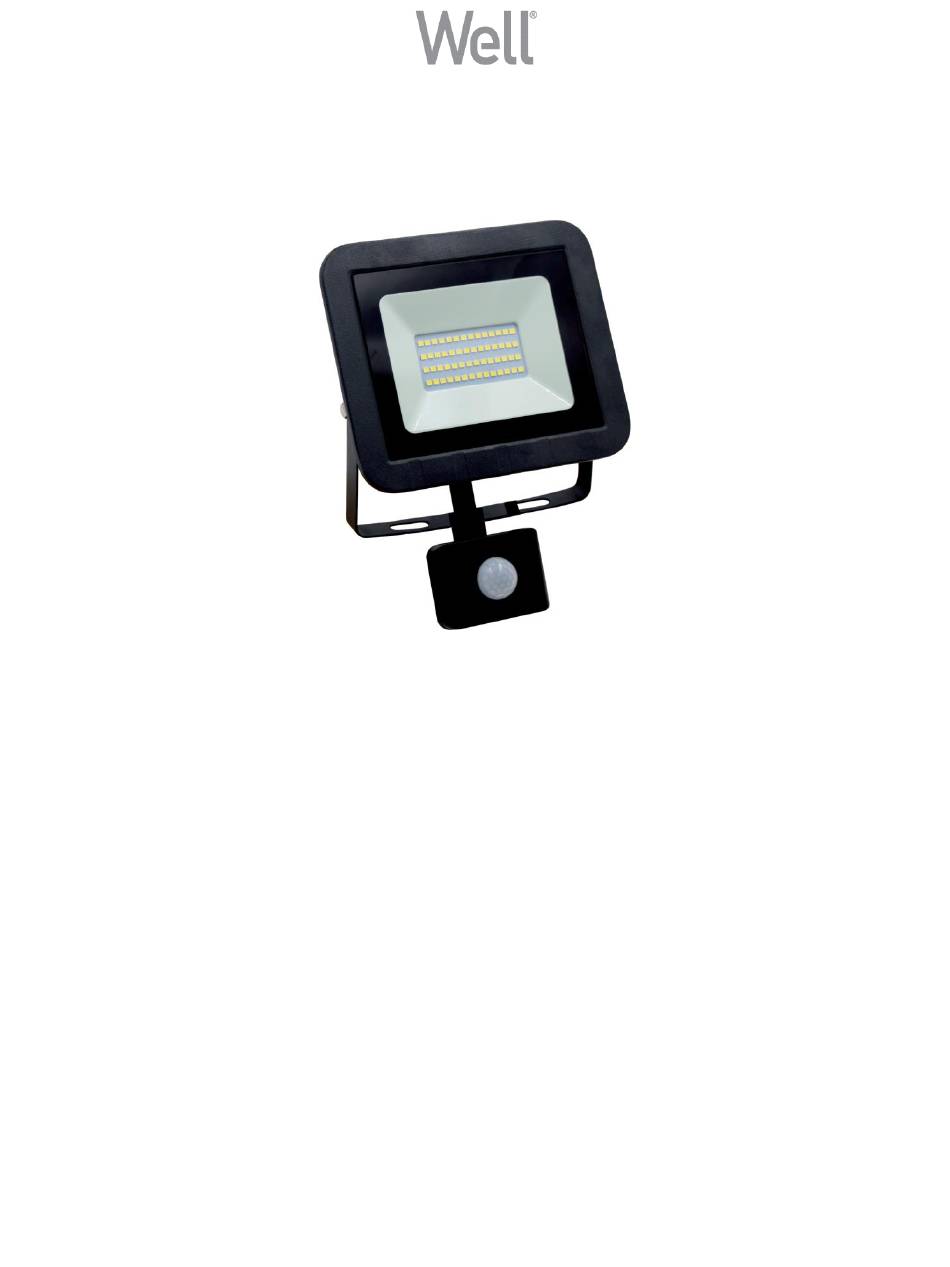

- Page 1 Installation and Operating Manual Model: SPARKLE Floodlight with sensor Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach.
- Page 2 Preorder No.: LEDFN-SPARKLE10BKPIR-WL, LEDFN-SPARKLE20BKPIR-WL, LEDFN-SPARKLE30BKPIR-WL, LEDFN-SPARKLE50BKPIR-WL PRODUCT DESCRIPTION 1. Anti-Burst glass cover 5. RA:> 70 2. Die cast aluminium body 6. IP: 44 3. Mounting Brachet 7. Voltage: AC220-240V 4. 15cm cable 8. Ambient Light: 3-2000 LUX Power Lumen Detection Time-Delay Detection Detection...
- Page 3 INSTALLATION: Shut off the power. Firstly, screw the middle part with the sensor part together, check the right figure, ( this part is screwed when leaving factory) Unscrew the beside of the middle part, and install the gimbals’ base in the ceiling or other place where you want to install, fasten the sensor part (first step in here) with the base, screw and fix the sensor part to base.
- Page 4 Considering your safety, please don’t open the cover when you find the hitch after installation. SOME PROBLEM AND SOLVED WAY: The load don’t work: Please check the power and load connect is correct. Check if the load is good. Check if the working light corresponds to the ambient light. The sensitivity is poor: Please check if there is hinder in front of the detection window to effect receiving the signals.
