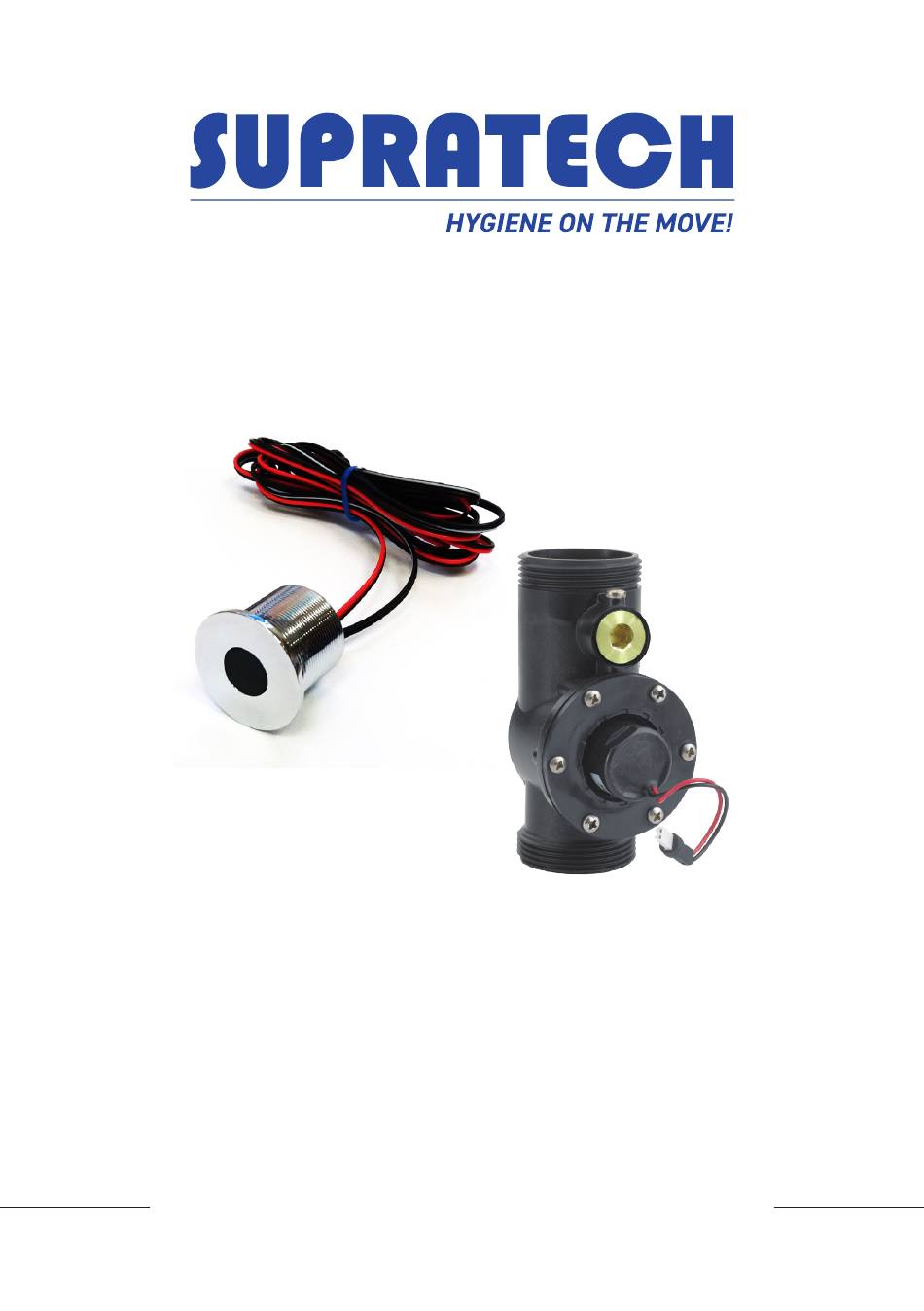

- Page 1 PROXI ELECTRONIC SENSOR KIT FOR WC INSTALLATION AND MAINTENANCE INSTALLATION AND MAINTENANCE GUIDE GUIDE...
- Page 2 The tradenames, trademarks, logos, and service marks presented in this document, including their design, are the property of SUPRATECH or other third parties and you are not permitted to use them...
- Page 3 T E C H N I C A L C H A R A C T E R I S T I C S 1 X PROXI SENSOR 1 X PROXI SENSOR FOR PANEL MOUNTED FRONT FIXATION INSTALLATION FOR RECESSED INSTALLATION...
- Page 4 P R E - I N S T A L L A T I O N CHECK CONTENTS Separate all parts from the packaging and check each item using the TECHNICAL CHARACTERISTICS section. Make sure all parts are accounted for before discarding any packaging material.
- Page 5 P R O X I S E N S O R I N S T A L L A T I O N STEP 1 – PREPPING FOR INSTALLATION Shut off the water supply. Remove nut, disk, and gasket. STEP 2 – SYSTEM INSTALLATION Place the sensor in its designated location.
- Page 6 P R O X I S E N S O R I N S T A L L A T I O N Open the central water supply and the shut-off valve and check for leaks. FROM THE SENSOR Connect the waterproof connector from the sensor to the solenoid valve connector.
- Page 7 P R O X I S E N S O R I N S T A L L A T I O N F R O N T F I X A T I O N STEP 1 – INSTALLATION PREPPING Shut off water supply.
- Page 8 P R O X I S E N S O R I N S T A L L A T I O N F R O N T F I X A T I O N Open the central water supply and the shut-off valve and check for leaks.
- Page 9 S E T T I N G A D J U S T M E N T S DETECTION RANGE FLOW TIME OUT TEMPORARY OFF ACTIVATION TIME FUNCTION COMFORT FLUSH RESET SHORT FLUSHING 24 HOUR HYGIENE TIME FLUSH FLUSHING TIME SETTING ADJUSTMENTS WITH THE (OPTIONAL) RES-31 REMOTE CONTROL The ideal detection range will be set automatically.
- Page 10 S E T T I N G A D J U S T M E N T S DETECTION RANGE: The detection range represents the optimum distance at which a person must be placed to trigger the system. If needed, the detection range can be adjusted as follows: Press the RANGE button.
- Page 11 S E T T I N G A D J U S T M E N T S RESET: The reset function allows the sensor to return to the original factory settings.Use the ADJ button to activate the self-adjustment mode. If needed, the detection length can be adjusted as follows: Press the RANGE button.
- Page 12 M A I N T E N A N C E CARE AND CLEANING OF CHROME AND SPECIAL FINISHES: DO NOT use steel wool or cleansing agents containing alcohol, acid, abrasives, or the like. Use of any prohibited cleaning or maintenance products or substances could damage the surface of the faucet.
- Page 13 L I M I T E D W A R R A N T Y This PROXI sensor kit for WC is warranted 3 years from the date of purchase. In the event of a defect during this period of regular use, SUPRATECH will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments.
- Page 14 T R O U B L E S H O O T I N G PROBLEM INDICATOR CAUSE SOLUTION Valve does 1. The sensor's Low battery. Replace battery. not flush LED flashes continuously when the user is within detection range 2.
- Page 15 N O T E S...
- Page 16 2, rue des Cyprès - 37240 Bossée - France Tel: 00 33 (0)2 47 92 23 31 - Fax: 00 33 (0)2 47 92 84 71 info@autosanit.com www.autosanit.com 06.2024...
