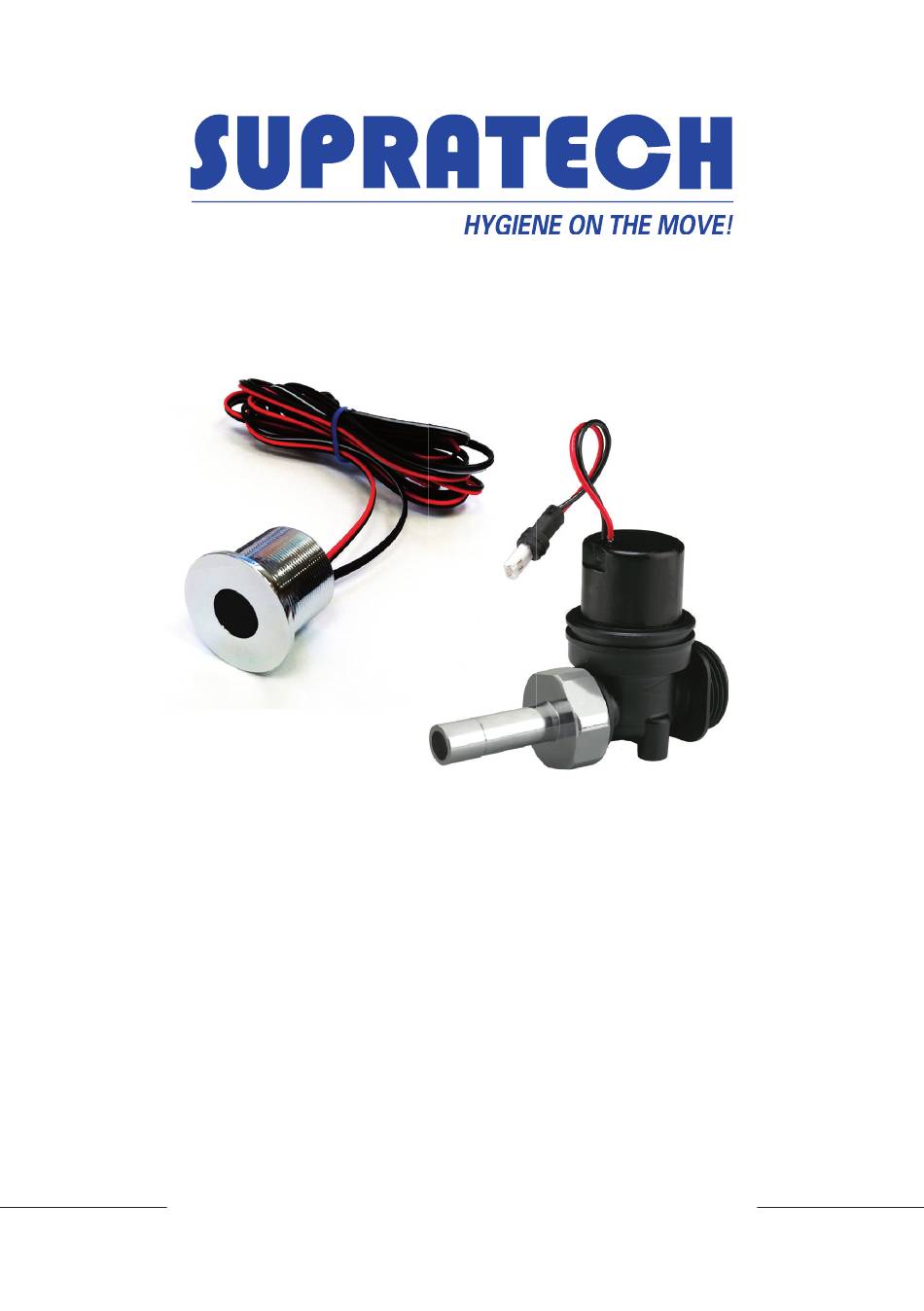

- Page 1 PROXI ELECTRONIC DETECTION KIT FOR FAUCETS INSTALLATION AND MAINTENANCE GUIDE INSTALLATION AND MAINTENANCE GUIDE...
- Page 2 The tradenames, trademarks, logos, and service marks presented in this document, including their design, are the property of SUPRATECH or other third parties and you are not permitted to use them without the prior written consent of SUPRATECH or such third party as may own them.
- Page 3 T e c h n i c a l C h a r a c t e r i s t i c s 1 X PROXI SENSOR 1 X PROXI SENSOR FOR PANEL MOUNTED FRONT FIXATION INSTALLATION FOR RECESSED INSTALLATION 1 X ACETAL 1 X SOLENOID SOLENOID...
- Page 4 P r e - I n s t a l l a t i o n Check contents Separate every part from the packaging and go over each item according to the TECHNICAL CHARACTERISTICS section. Please check that all components are present and in good condition before discarding the packaging.
-
Page 5: Step 2 - System Installation
P R O X I S E N S O R I n s t a l l a t i o n STEP 1 – PREPPING FOR INSTALLATION Shut off water supply Remove nut, disk, and gasket. GASKET STEP 2 – SYSTEM INSTALLATION Place the sensor in its designated location. -
Page 6: Step 3 - Connecting To The Power Source
P R O X I S E N S O R I n s t a l l a t i o n Open the central water supply and the shut-off valves (angle valves) and check for leaks. Connect the waterproof connector from the sensor to the solenoid valve connector. - Page 7 P R O X I S E N S O R I n s t a l l a t i o n F R O N T F I X A T I O N STEP 1 – INSTALLATION PREPPING Shut off power supply.
- Page 8 P R O X I S E N S O R I n s t a l l a t i o n F R O N T F I X A T I O N If your system is equipped NOTE: Make sure with an inlet nipple, connect the filter is set...
-
Page 9: Detection Range
S e t t i n g a d j u s t m e n t s DETECTION DELAY TIME RANGE TEMPORARY OFF TRIGGERING TIME FUNCTION SELF ADJUSTMENT RESET MODE 24 HOUR HYGIENE FLOW TIME FLUSH Adjusting the settings with the (optional) RES-31 remote control If necessary, the sensor settings can be adjusted: Turn the water supply off . - Page 10 S e t t i n g a d j u s t m e n t s the detection range refers to the greatest DETECTION RANGE: distance from which an object can be sensed in order to activate the system.
-
Page 11: Delay Time
S e t t i n g a d j u s t m e n t s DELAY TIME: this button allows for modification of the water flow time after the user removes his hands from the faucet or steps away from the shower. -
Page 12: Filter Cleaning Instructions
M a i n t e n a n c e FILTER CLEANING INSTRUCTIONS: This system is provided with a stainless steel filter preventing foreign particles to enter the lines. It is recommended to clean the filters every six (6) months. If the water flow has decreased, this may be because the filter is clogged. - Page 13 The PROXI detection sensor kit for faucet is warranted 3 years starting at the purchase date for regular use purposes. If a defect is found in normal use, SUPRATECH will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments SUPRATECH is not responsible for labour charges, installation, or other incidental or consequential costs other than those noted above.
- Page 14 T r o u b l e s h o o t i n g SOLUTION CAUSE INDICATOR PROBLEM Valve does 1. The sensor flashes Low battery(ies) Replace battery(ies). not flush continuously when the user is within detection range. 2. The sensor’s LED 1.
- Page 15 N o t e s...
- Page 16 2, rue des Cyprès - 37240 Bossée - France Tél : (33)2 47 92 23 31 - Fax : (33)2 47 92 84 71 info@autosanit.com www.autosanit.com 10.2023...
