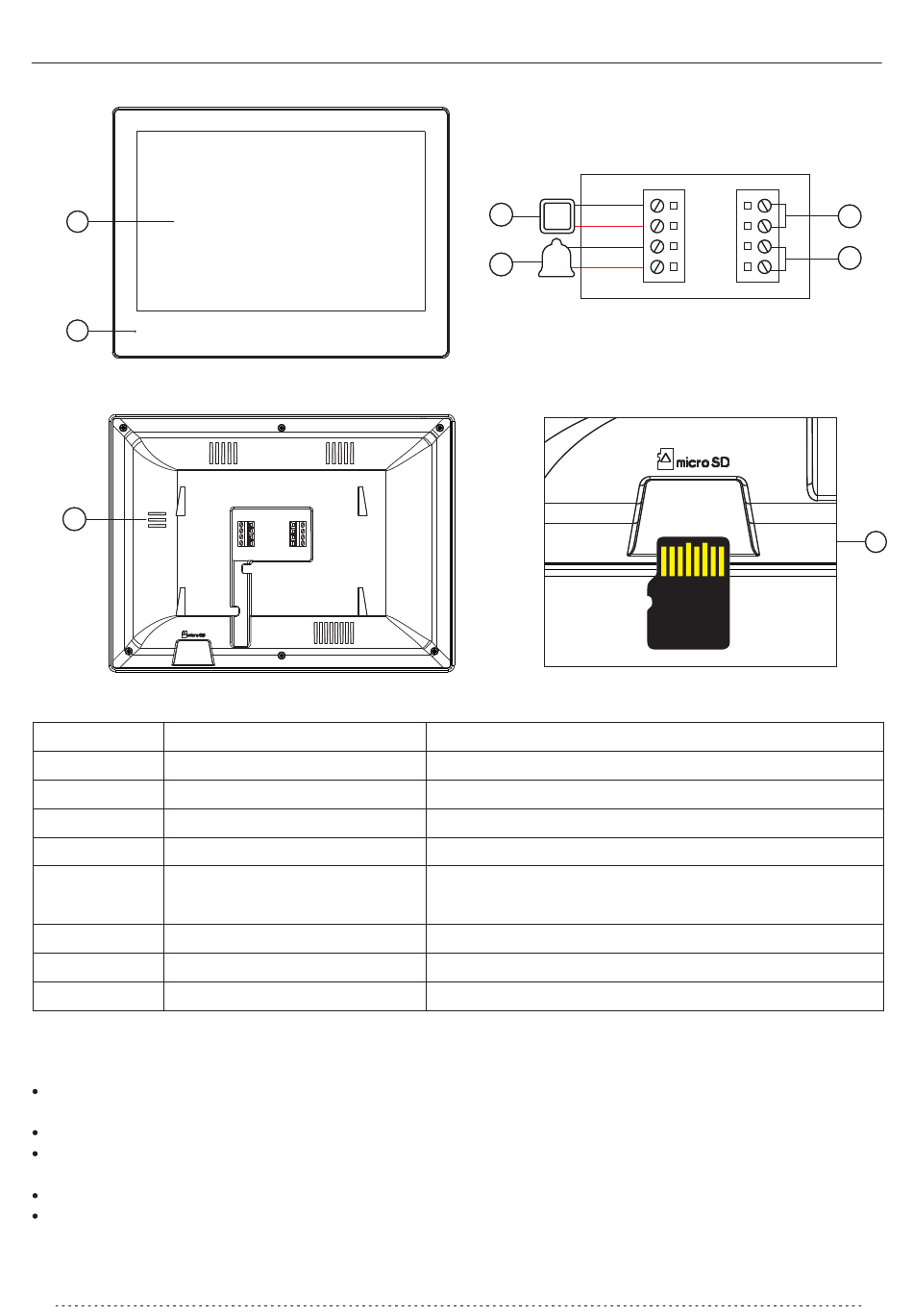

Appearance Description
1
2
3
No.
Screen
1
MIC
2
Speaker
3
SW+, SW-
4
COM, NO
5
Power input
6
2-wire BUS
7
Micro SD card slot
8
About the guide
The guide serves as a reference document and should not be taken as the sole source of information
about the product.
The actual product should always be consulted to verify any details or specifications.
We assume no liability for any losses incurred due to actions that do not adhere to the guidelines
provided in the guide.
We reserve the right to update the designs and software without prior notice.
In the event of any uncertainties or disputes, our final explanation will be considered the conclusive
interpretation.
SW-
GND
SW+
DC+
COM
BUS
NO
BUS
Name
SW-
4
SW+
CALL
COM
NO
5
BELL
Description
8" 1280*800
Microphone
Loudspeaker
Call Button (Optional, applies to the actual product)
Ringbell,NO (MAX AC/DC30V 4A)
(Optional, applies to the actual product)
DC24V-36V, 8W
Non-polarity
Max.512GB (Class 10, FAT32)
1
GND
6
DC+
BUS
7
BUS
8
Advertisement
Related Manuals for Doorsafe DS7896
Summary of Contents for Doorsafe DS7896
- Page 1 Appearance Description CALL BELL Name Description Screen 8" 1280*800 Microphone Speaker Loudspeaker SW+, SW- Call Button (Optional, applies to the actual product) Ringbell,NO (MAX AC/DC30V 4A) COM, NO (Optional, applies to the actual product) Power input DC24V-36V, 8W 2-wire BUS Non-polarity Micro SD card slot Max.512GB (Class 10, FAT32)
- Page 2 Wiring diagram CALL BELL 2 wire BUS 100M line 1Doorstation + 2Doorstations + 1Doorstation + 2Doorstations + 1Monitor 1Monitor 2Monitors 2Monitors resistance Wire (Ω) A(MAX) B(MAX) A(MAX) B(MAX) A(MAX) B(MAX) A(MAX) B(MAX) (Standard) CAT6 6.88 2x0.5mm 3.37 2x1mm 1.63 Remark: The best recommended connection diagram for the system is 8 devices(montior+panel+controller). Quick configuration 1.
- Page 3 1.2 Add a door station or camera manually You can follow the steps below to complete the access to the single-family door station or camera. Step 1: In the system main menu, click → , then click CONFIGURATION → ADD NEW DEVICES.
- Page 4 NETWORK SETTINGS CONFIGURATION IP CONFIG NETWORK SETTINGS RESET WIFI REBOOT DEVICE UNLINK APP ACCOUNT ENGINEERING PASSWORD Picture 1 Picture 2 EEGUARD_TEST WIFI EEGUARD_TEST SmartLife-8727 ChinaNet-EFTk BoxC_F2_Office MERCURY_913E ?123 ChinaNET-M4kH Picture 3 Picture 4 1.4 Channel administration Click in the main interface of indoor monitor, then click to enter setting interface of door station.
- Page 5 Selection Note Table of contents Modify the display name of the door station in the indoor monitor. DEVICE NAME The door unlock time can be set to 1-19S. The default unlock time DOOR UNLOCK TIME 1-19S is 5S. The gate unlock time can be set to 0.2-5S. The default unlock time GATE UNLOCK TIME 0.2-5S is 0.2S.
- Page 6 DEVICE MANAGEMENT CONFIGURATION APARTMENT NUMBER 192.168.0.143 CAM1 192.168.0.143 MONITOR NUMBER 192.168.0.144 CAM2 ADD NEW DEVICES 192.168.0.145 CAM3 192.168.0.146 CAM4 192.168.0.147 CAM5 192.168.0.148 CAM6 192.168.0.149 CAM7 192.168.0.150 CAM8 Picture 1 Picture 2 DEVICE MANAGEMENT DEVICE MANAGEMENT RTSP 192.168.0.143 RTSP 192.168.0.143 CAM1 192.168.0.143 192.168.0.143 CAM1...
- Page 7 4. Connect wireless chime (Optional) Please refer to the steps below to connect the indoor monitor and wireless chime: Step 1:Connect the wireless (RF433) chime to power. Step 2: Press and hold the pairing button on the chime until the music icon lights up. Step 3: Click in the main interface of indoor monitor→...
- Page 8 Step 2: Enter the desired channel (CAM1/2/3/4) and click the in the top right corner to access the QR code settings interface. You can create QR code unlock for DOOR or GATE (Refer to Pictures 3 and 4). Step 3: QR Code Type Selection: TYPE: ONE-TIME and PERMANENT.
- Page 9 QR CODE 1 QR CODE 1 UNLOCK DOOR TYPE PERMANENT BEGIN TIME 06:00 END TIME 06:00 ALWAYS REPEAT ’ PERMANENT Picture 7 Picture 8 NOTE: When set to ONE-TIME, only start and end times are available (Ref. to Picture 9). After use, a one-time QR code shows an "X"...
- Page 10 APP configuration 1. Install the APP Search for Tuya Smart in the app store of your phone and install it. 2. Apply account After the installation is completed, open the app, apply an account and log in. 3. Connection Option 1: Scanning QR code Step 1: Click in the main interface of indoor monitor to enter setting interface →...
- Page 11 Panel Wai ng for answers .. 12-01-2021 08:00:00 12-01-2021 08:00:00 12-01-2021 08:00:00 lock1 lock2 Picture 1 Picture 2 Picture 3 1. Click to talk with the visitor. 2. If no one answers after chime time ends, the calling will be automatically hung up . 3.
- Page 12 1. Click to talk with the visitor. Click to transfer the call to other indoor monitors. Before another indoor monitor answer the call, Click one more time to talk with the visitor again. 2. If no one answers after chime time ends, indoor monitor will return to standby state . 3.
- Page 13 Setting Item Description Selection Enable or disable the recording function. VIDEO Time to begin recording. BEGIN TIME Time to end recording. END TIME Can be set to HIGH / NORMAL / LOW. The higher the sensitivity, the MOTION DETECT SENSITIVITY farther the detection range.
- Page 14 ENGINEERING PASSWORD ENTER PASSWORD DISABLE PASSWORD? Picture 1 Picture 2 Unbind devices 1. Unbind door station / IP camera from indoor monitor Click to enter setting interface of indoor monitor → Click → Click CONFIGURATION → Click ADD NEW DEVICES → Click which followed IP address of door station and camera on the right list to unbind corresponding devices as your needs.
- Page 15 Step 2: Enter the Tuya Smart app to remove the device. Press and hold the device you wish to remove on the main page → select Remove Device → Click Confirm in the pop-up window → Done. My Home 1 Selected Done 1 Selected Done...
- Page 16 Installation 1. Connect wires according to relevant wiring diagram and check whether the power supply meet requirements. 2. Ensure devices is powered off before installation finished. 3. Determine the monitor installation position: suggest installation height is 1.5~1.6m. 4. Install the bracket on the wall. To remove the wall bracket from the monitor - slide the bracket upwards.
