Doorsafe 1860 Operation Instruction Manual

2-wire audio intercom system
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATION INSTRUCTION
2-Wire Audio Intercom System
Indoor Monitor
Outdoor Units
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1860 and is the answer not in the manual?

Questions and answers

Related Manuals for Doorsafe 1860

Summary of Contents for Doorsafe 1860

  • Page 1 OPERATION INSTRUCTION 2-Wire Audio Intercom System Indoor Monitor Outdoor Units User Manual...

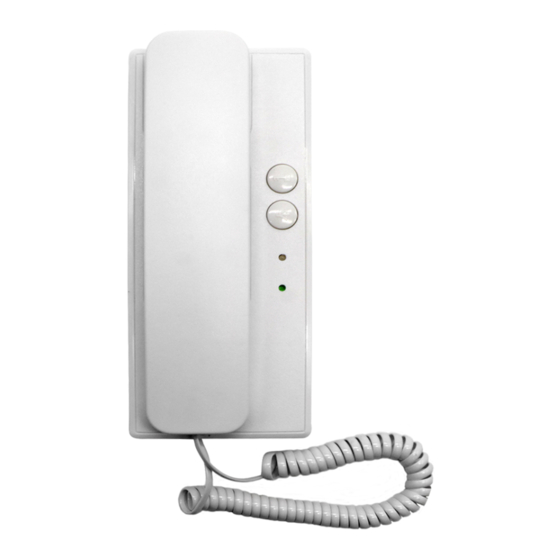

  • Page 3 INDOOR MONITOR APPEARANCE INTRODUCTION Base Microphone Unlock button Call transfer button Power LED Intercom LED...
  • Page 4 INDOOR MONITOR OPERATION INSTRUCTION 1. Intercom function: When call from outdoor station, indoor monitor will ring, answer the call can intercom with outdoor station, the green LED is ON; Hang up the handset, restore to standby mode, the green LED is OFF. 2.

  • Page 5: Wiring Diagram

    WIRING DIAGRAM V+(Door) White(V1+) ...Slave(2-4) GND(Door) Grey(GND) Red(V2+) V+(Door) Black(GND) GND(Door) ...Slave(2-4) V+(Door) White(V3+) GND(Door) Black(GND) ...Slave(2-4) V+(Door) Blue(V4+) GND(Door) Yellow(GND) ...Slave(2-4) Green(NO) Orange(COM) Brown(NC) Purple(V Lock+) Door Door Door Door ...Slave(4) Slave Slave Slave DC15V Power DC15V Power DC15V Power Switch Switch...

  • Page 6: How To Install The Indoor Unit

    HOW TO INSTALL THE INDOOR UNIT...
  • Page 7 INSTALL THE INDOOR UNIT Note: Please be far from the devices with intense radiation: TV, DVR, etc. Do not disassemble privately to avoid the electric shock. Do not drop, shake or knock the device, otherwise will damage the elements. Choose the best position to install, the horizontal view is 150cm. Please power down before installation.
  • Page 8 OUTDOOR UNITS APPEARANCE INTRODUCTION Notice: Long press button 5s switch AHD/CVBS signal. Call button(Indoor1) Microphone Call button(Indoor4) Call button(Indoor2) Volume regulator Name Tag Call button(Indoor3 System port Speaker...

  • Page 9: Outdoor Units Wiring Diagram

    OUTDOOR UNITS WIRING DIAGRAM V+(Door) White(V1+) ...Slave(2-4) GND(Door) Grey(GND) Red(V2+) V+(Door) Black(GND) GND(Door) ...Slave(2-4) V+(Door) White(V3+) GND(Door) Black(GND) ...Slave(2-4) V+(Door) Blue(V4+) GND(Door) Yellow(GND) ...Slave(2-4) Green(NO) Orange(COM) Brown(NC) Purple(V Lock+) Door Door Door Door ...Slave(4) Slave Slave Slave DC15V Power DC15V Power DC15V Power...
  • Page 10 NC(Brown) Power COM (Orange) GND(Grey) NO(Green) V Lock+ (Purple) Power COM(Orange) NO(Green) COM(Orange) OUTDOOR UNITS PRODUCT SPECIFICATIONS...
