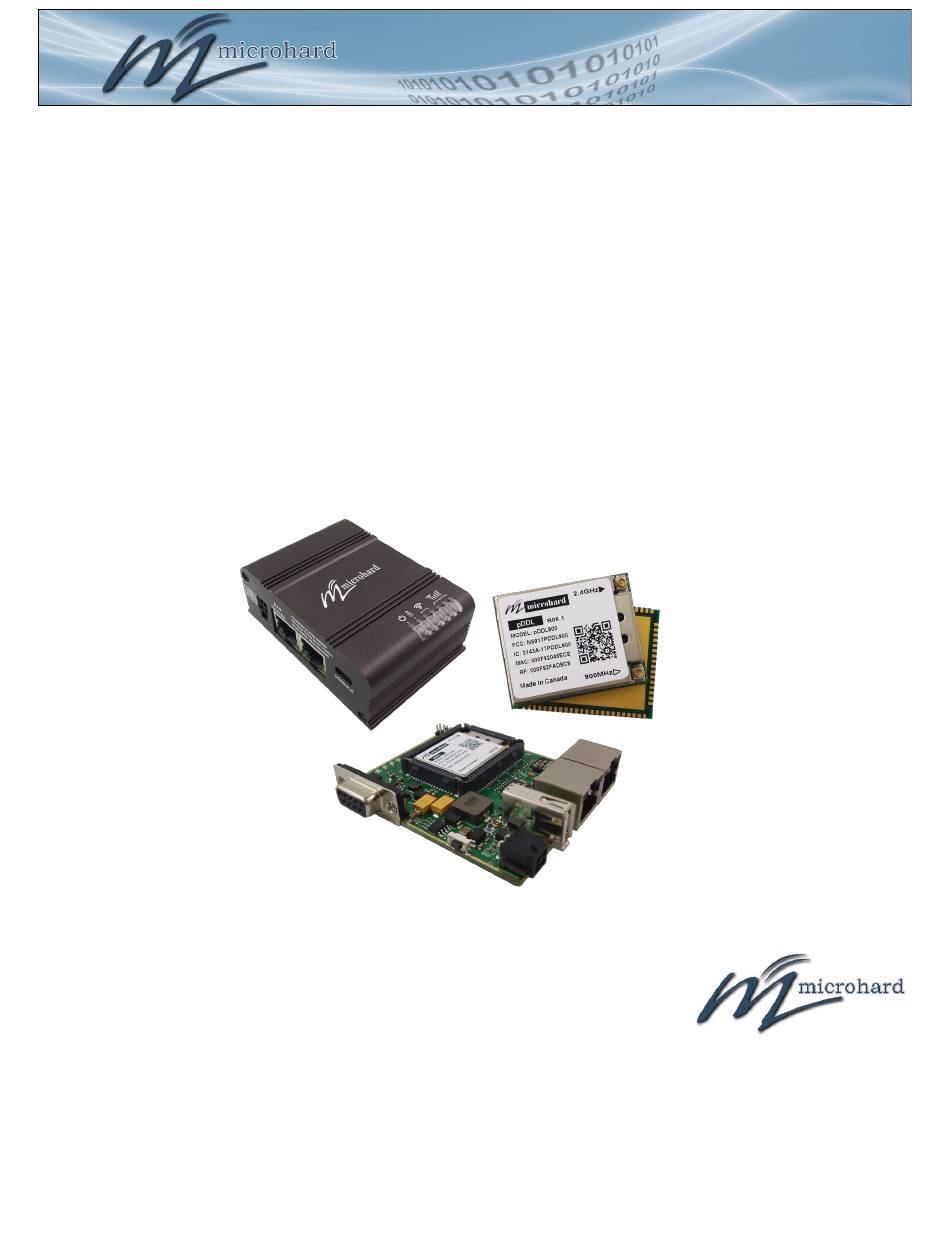

Page 1 Operating Manual pDDL900 1W Dual Frequency 900MHz/2.4GHz OEM Digital Data Link pDDL1800 1W 1800MHz OEM Digital Data Link Document: pDDL900_pDDL1800.Operating Manual.v1.2.0.pdf FW: v1.3.0 Build 1040 150 Country Hills Landing NW Calgary, Alberta Canada T3K 5P3 Phone: (403) 248-0028 Toll Free: 1-855-353-0028...
Page 2 Important User Information Warranty Microhard Systems Inc. warrants that each product will be free of defects in material and workmanship for a period of one (1) year for its products. The warranty commences on the date the product is shipped by Micro- hard Systems Inc.
Page 3 Highlights a key feature, point, or step which is noteworthy. Keeping these in mind will simplify or enhance device usage. An idea or suggestion to improve efficiency or enhance usefulness. Information Information regarding a particular technology or concept. © Microhard Systems Inc.
Page 4 WARNING: Changes or modifications not expressly approved by Microhard Systems Inc. could void the user’s authority to operate the equipment. This device has been tested with UFL to Reverse Polarity SMA connectors with the antennas listed in Appendix A When integrated in OEM products, fixed antennas require installation preventing end-users from replacing them with non-approved antennas.
Page 5 WARNING: Les changements ou modifications non expressément approuvés par Microhard Systems Inc. pourraient annuler l'autorité de l'utilisateur à utiliser l'équipement . Ce dispositif a été testé avec MCX et connecteurs SMA à polarité inverse sur les antennes répertoriées à l'annexe A Lorsqu'il est intégré...
Page 6 First Release. Based on Firmware v1.3.0 Build 1019-32 Dec 2016 1.1.0 Updated to firmware version v1.3.0 Build 1040. Updated Images, June 2018 Added FCC/IC Numbers, Added Enclosed Model, Updated AT Com- mands, Updated Screenshots, Misc Updates 1.2.0 Added reference to pDDL1800 Feb 2019 © Microhard Systems Inc.
Page 7 4.2.1 Status ........................48 4.2.2 LAN ........................... 49 LAN DHCP ....................... 51 4.2.3 WAN ......................... 53 4.2.4 USB .......................... 55 4.2.5 DHCP (MAC Binding) ....................56 4.2.6 Routes ........................57 4.2.7 Ports ......................... 59 4.2.8 Device List ........................ 60 © Microhard Systems Inc.
Page 8 4.6 Diag ............................ 83 4.6.1 Ping ......................... 83 4.6.2 Traceroute ....................... 83 4.6.3 Iperf ......................... 84 4.7 Admin ..........................85 4.7.1 Users ........................85 4.7.2 SNMP ........................87 4.7.3 Discovery ........................ 92 4.7.4 Logout ........................93 © Microhard Systems Inc.
Page 9 6.2.4 External Filter ......................110 Appendices ......................Appendix A: Serial Interface ....................... 111 Appendix B: Firmware Recovery ....................112 Appendix C: Sample Interface Schematic .................. 113 Appendix D: Serial Port Extension ..................... 114 Appendix E: Troubleshooting/FAQ ..................... 115 © Microhard Systems Inc.
Page 10 RSSI LED pins for Antenna Alignments • Industrial grade operating temperature (-40 C to +85 • Administration via local console, telnet, web browser, SNMP • Local and remote wireless firmware upgradable • * See Section 1.3 Performance Specifications © Microhard Systems Inc.
Page 11 For detailed specifications, please see the specification sheets available on the Microhard website @ http:///www.microhardcorp.com for your specific model. Electrical/General Frequency: pDDL900: 902 - 928 MHz or 2.402 - 2.482 GHz pDDL1800: 1810 - 1850 MHz Link Rate: See Section 1.3 Performance Specifications TX Power: Up to 30 dBm (Selectable)
Page 12 Antenna: RP-SMA Female x2 (Main, Diversity*), SMA Female (Aux) Ethernet: RJ45 x2 Serial: DB9 RS232/485 USB: Type A Console: Micro-AB USB Power: 4-Pin Micro MATE-N-LOK AMP 3-794618-4 Mating Connector: 4-Pin Micro MATE-N-LOK AMP 794617-4 *No diversity antenna on pDDL1800. © Microhard Systems Inc.
Page 13 29dBm 27dBm 64QAM_2/3 64QAM_3/4 27dBm 64QAM_5/6 27dBm 1 MHz Channel Bandwidth BPSK_1/2 0.35 -103 30dBm QPSK_1/2 0.72 -101 30dBm QPSK_3/4 30dBm 29dBm 16QAM_1/2 16QAM_3/4 29dBm 64QAM_2/3 27dBm 27dBm 64QAM_3/4 27dBm 64QAM_5/6 Table 1-2: pDDL900 Performance Specifications © Microhard Systems Inc.
Page 14 IP address to you), or STATIC with an IP Address of (e.g.) network settings: 192.168.168.10 and a Subnet Mask of 255.255.255.0. IP: 192.168.168.1 Subnet: 255.255.255.0 ✓ Open a Browser Window and enter the IP address 192.168.168.1 into the ad- dress bar. 192.168.168.1 © Microhard Systems Inc.
Page 15 Subnet: admin change You will be forced to change the default password upon logging in for the first time. ✓ Once successfully logged in, the System Summary window will be displayed. © Microhard Systems Inc.
Page 16 Once both units have finished changing settings (~60 seconds) a wireless link ✓ should automatically be established between them, this can be seen by observ- ing the RSSI LEDS, they should be on solid, indicating a link (the more LEDs il- luminated = stronger the link). © Microhard Systems Inc.
Page 17 Once the IP Address is changed, Refer to Section 5.2.2 LAN for additional you will need to type the new ad- information. dress into your browser to continue the configuration. © Microhard Systems Inc.
Page 18 Click on the Submit button to write the If any additional changes to the pDDL900. The Cancel button settings need to be will revert back to previously saved values changed, ensure they are also changed on the Slave. © Microhard Systems Inc.
Page 19 Once the IP Address is changed, you Refer to Section 5.2.2 LAN for additional will need to type the new address into information. your browser to continue the configu- ration. © Microhard Systems Inc.
Page 20 Click on the Submit button to write the changes to the pDDL900. The Cancel button If any additional will revert back to previously saved values settings need to be changed, ensure they are also changed on the Slave. © Microhard Systems Inc.
Page 21 Open a browser and type in the address of the slave: 192.168.168.12 Log into the unit. The System Summary screen should be dis- played If any additional settings need to be changed, ensure they are also changed on all radios. © Microhard Systems Inc.
Page 22 ’sparing’ perspective, as well for convenience in becoming familiar and proficient with using the module: if you are familiar with one unit, you will be familiar with all units. Image 3-1: pDDL900 Top View Image 3-2: pDDL900 Bottom View © Microhard Systems Inc.
Page 23 3.0 Hardware Features 3.1.1 Mechanical Drawings The pDDL900/1800 OEM Modules have an extremely small form factor as seen below. 31.0 The pDDL1800 only has 1 antenna. 2.79 2.79 33.0 0.80 Detail 1.27 1.18 26.5 1.50 3.41 22.35 Ground Plane 30.01 28.70...
Page 24 3.0 Hardware Features 3.1.2 Recommended Solder Mask (Pad Landing) 22.35 0.99 30.02 28.70 34.34 Detail 19.86 27.99 Detail 0.81 Units: millimeters 1.27 1.83 Drawing 3-2: pDDL900/1800 Recommended Solder Mask © Microhard Systems Inc.
Page 25 Drawing 3-3: pDDL900/1800 Recommended Solder Paste 3.1.4 OEM Connectors Antenna All pDDL900/1800 OEM Modules use an UFL connector for the antenna connection. Data The interface to the pDDL900/1800 OEM module is a tight integration using 80 pad SMT connections. © Microhard Systems Inc.
Page 26 The pDDL900/1800 OEM modules must be baked before mounting, the following baking instruction should be followed for the best results: 12 hours at 125°C +/- 5°C for high-temperature device containers. Minimum of 8 to b) Unused modules should be stored at ≤ 10% RH © Microhard Systems Inc.
Page 27 The above drawing depicts a top view of the pDDL900 OEM Module. A full description of the Inputs and outputs are 3.3V nominal (3.0V min connections and function of each pin is provided on the pages that follow. — 3.6V max) unless otherwise specified. © Microhard Systems Inc.
Page 28 34 Request To Send. Active low input. Table 3-3: pDDL900/1800 Pin Description All serial communications signals are logic level (0 and 3.3V). DO NOT connect RS-232 level (+12, - 12VDC) signals to these lines without shifting the signals to logic levels. © Microhard Systems Inc.
Page 29 Drivers can be installed on a USB Host to provide Ethernet and Serial functionality to the USB port on the pDDL900. To enable USB Device mode, Pin 14 must be connect to GND through a 1K resistor as shown below: 1 kΩ USB Mode pDDL900 Drawing 3-6: pDDL900 USB Device Mode © Microhard Systems Inc.
Page 30 - Power / CPU Status LED (Blue) - Wireless Activity (Tx/Rx) LED’s (Red/Green) - RSSI (x3) LED’s (Green) - RS485 LED (Blue) - Config Button (Reset/Recovery Operations) - 2x RP-SMA Female Antenna (ANT1(900MHz/1800MHz), ANT2(2.4GHz)) - 1x SMA Female (Aux) Image 3-3: pDDL900/1800-ENC © Microhard Systems Inc.
Page 31 3.0 Hardware Features 3.2.1 pDDL900/1800-ENC Mechanical Drawings Drawing 3-7: pDDL900/1800-ENC Mechanical © Microhard Systems Inc.
Page 32 The RS485 LED indicates that the serial port has been configured as a RS485 port. CPU/Status (Blue): The CPU/Status LED indicates that power has been applied to the module. A Solid LED indicates normal operation, while flashing indicates boot or firmware upgrade status. © Microhard Systems Inc.
Page 33 The console port is a Micro-AB USB port that uses a generic FTDI driver as a USB/Serial Interface. When a cable is connected to this port from a PC the FTDI driver should automatically be installed. © Microhard Systems Inc.
Page 34 USB (Type A, 2.0): Ground Specific Serial to USB Converters can be plugged into this port to provide additional serial ports. Adapters that use generic FTDI drivers are compatible at this time. Data+ Table 3-5: DE9 Data Pin Assignment © Microhard Systems Inc.
Page 35 - RS232 Serial Port - USB Port (Type A) - Power (7-30 VDC) - CPU Status LED - Tx/Rx LED’s - RSSI (x3) LED’s - Config Button (Reset/Recovery Operations) - Vpa (3/5V) Jumper Block Image 3-4: pDDL900/1800 Development Board © Microhard Systems Inc.
Page 36 Ethernet RJ45 Connector Pin Number Source Voltage 12 - 30 Vdc Data Data Data Data Table 3-2: Ethernet (WAN) PoE Connections Power: The pDDL900 development board can powered using an input voltage in the 7-30 VDC Vin- Vin+ range. © Microhard Systems Inc.
Page 37 The Vpa jumper allows the radio inside the pDDL900 to be connected to 3.3 or 5VDC. For the pDDL900 to operate at maximum output Transmit 5VDC (Tx) power of 1 Watt (30dBm), the Vpa jumper must be set to 5VDC (Pin 1+2). © Microhard Systems Inc.
Page 38 • refer to Section 2.0: Quick Start for step by step instructions. In this section, all aspects of the Web Browser Interface, presented menus, and available configuration options will be discussed. © Microhard Systems Inc.
Page 39 FORGET the new password as it cannot be recovered. Image 4-0-3: Logon Window : Password Entry After successfully logging into the Pico DDL for the first time, you will be forced, and prompted to change the admin password. © Microhard Systems Inc.
Page 40 The System Summary screen is displayed immediately after initial login, showing a summary and status of all the functions of the pDDL900 in a single display. This information includes System Status, LAN/WAN network information, version info, Radio Status etc. Image 4-1-1: System Summary Window © Microhard Systems Inc.
Page 41 This value can be viewed on the System > Summary screen. pDDL900 (varies) up to 64 characters Console Timeout (s) This value determines when a console connection (made via Console Values (seconds) Port or Telnet) will timeout after becoming inactive. 0-65535 © Microhard Systems Inc.
Page 42 Select the Date and Time Setting Mode required. If set for ‘Local Time’ Values (selection) the unit will keep its own time and not attempt to synchronize with a network server. If ‘NTP’ is selected, a NTP server can be defined. Local Time © Microhard Systems Inc.
Page 43 By default the modem only synchronizes the time and date during (seconds) Values system boot up (default: 0), but it can be modified to synchronize at a regular interval. This process does consume data and should be set accordingly. © Microhard Systems Inc.
Page 44 80 (http) and port 443 (HTTPS). HTTP/HTTPS Change as required, but keep in mind that if a non standard port is HTTP used, it must be specified in a internet browser to access the unit. HTTPS (example: http://192.168.168.1:8080). © Microhard Systems Inc.
Page 45 4.0 Configuration 4.1.4 System > Maintenance Firmware Upgrade Occasional firmware updates may be released by Microhard Systems which may include fixes and/or new features. The firmware can be updated wirelessly using the WebUI. Image 4-1-5: Maintenance > Firmware Upgrade Erase Current Configuration Choose to keep or erase the current configuration.
Page 46 Restore File’ button to verify that the file is valid, and then the option to restore the configuration is displayed, as seen above. If the selected file is password protected the password must be set before restoring the file using the “Set Password” field under “Security for Configurations”. © Microhard Systems Inc.
Page 47 In a monthly configuration it is simply the date of the month (1 to 31). Once the day or date has been selected, specify (varies) the time (24hr clock) in which to initiate the scheduled reboot. © Microhard Systems Inc.
Page 48 4.2.1 Network > Status The Network Summary display gives a overview of the currently configured network interfaces including the Connection Type (Static/DHCP), IP Address, Net Mask, Default Gateway, DNS, and IPv4 Routing Table. Image 4-2-1: Network > Network Status © Microhard Systems Inc.
Page 49 Within any IP network, each This option allows the pDDL900 to participate in the Spanning Tree Values (selection) device must have its own protocol with other devices to prevent local loops. By default this is unique IP address. disabled. © Microhard Systems Inc.
Page 50 Set the DNS (Domain Name Server) for use by devices on the LAN Values (IP Address) port, if required. (no default) Within any IP network, each device must have its own unique IP address. © Microhard Systems Inc.
Page 51 The DHCP lease time is the amount of time before a new request for a Values (minutes) network address must be made to the DHCP Server. Alternate Gateway Specify an alternate gateway for DHCP assigned devices if the default Values (IP Address) gateway is not to be used. (IP Address) © Microhard Systems Inc.
Page 52 (no default) WINS/NBT Node Type Select the method used to resolve computer names to IP addresses. Values (selection) Four name resolution methods are available: B-node: broadcast none P-node: point-to-point b-node M-node: mixed/modified p-node H-node: hybrid m-node h-node © Microhard Systems Inc.
Page 53 If ‘Static’ Connection Type is selected, the Network Mask must be Values (IP Address) entered for the Network. If ‘DHCP’ is chosen this field will not appear and it will be populated automatically from the DHCP server. (no default) © Microhard Systems Inc.
Page 54 IP addresses. If set to auto and the Connection Type is set for DHCP the DHCP server will populate this field and the value set (no default) can be viewed on the Network > Status page. To add additional static servers, enter them here. © Microhard Systems Inc.
Page 55 In USB device mode, there are two functions supported, RNDIS/CDC Ethernet and CDC Serial port, when connected a host machine (PC etc). RDNIS Ethernet and CDC Serial composite drivers are available from Microhard Systems. Image 4-2-7: Network > USB...
Page 56 Displays the MAC Binding table that is configured in the pDDL900 device. Active DHCP Leases Displays the active DHCP leases for any IP Addresses that have been assigned. This includes the IP address, the MAC, Device Name as well as the lease expiry. © Microhard Systems Inc.
Page 57 Enter the network IP address for the destination. Values (IP Address) (192.168.168.0) Gateway Specify the Gateway used to reach the network specified above. Values (IP Address) 192.168.168.1 Netmask Enter the Netmask for the destination network. Values (IP Address) 255.255.255.0 © Microhard Systems Inc.
Page 58 Define the exit interface. Is the destination a device on the LAN, LAN1 Values (Selection) (If physical WAN port is bridged as an independent LAN), or the WAN? LAN / LAN1 / WAN / USB / None © Microhard Systems Inc.
Page 59 If the mode and auto negotiation are set you manual the connection Values (selection) speed can be specified. 100Mbit/s / 10 Mbit/s Duplex Selection between full or half duplex for the direction of data. Values (selection) Full / Half © Microhard Systems Inc.
Page 60 Devices can also be filtered by the network that they are attached to. Devices with a MAC and no IP and vise versa can also be filtered. Image 4-2-11: Network > Device List © Microhard Systems Inc.
Page 61 TX & RX Modulation, Signal to Noise ratio (SNR), Signal Strength (RSSI), and a graphical representation of the signal level or quality, as well as a RSSI Graph Link. Image 4-3-1: Wireless > Status (RSSI Graph Shown Below) © Microhard Systems Inc.
Page 62 MHz RF band OR the 2.4 GHz band. Use this field to toggle which mode is currently in use. Separate antenna connections are required. 900MHz / 2.4 GHz The pDDL800 only operates in the 1800 MHz band. © Microhard Systems Inc.
Page 63 The pDDL900 sets various internal timeouts to account for this travel time. Longer 3000 distances will require a higher setting, and shorter distances may perform better if the setting is reduced. © Microhard Systems Inc.
Page 64 For example, for a link (8MHz channel) with a signal strength of at least –75dBm, a TX rate of 16-QAM 3/4 FEC is recommended. Setting to the highest rate with a poor link may result in reduced performance. © Microhard Systems Inc.
Page 65 When using Ethernet and Serial data. If the volume of serial data is high, leave at the default (Normal Rate), if the volume of Ethernet data is high set com data to High Rate (Compressed). Normal / High © Microhard Systems Inc.
Page 66 The Firewall Summary allows a user to see detailed information about how the firewall is operating. The All, Filter, Nat, Raw, and Mangle options can be used to view different aspects of the firewall. Image 4-4-1: Firewall > Status © Microhard Systems Inc.
Page 67 The scrub directive also reassembled fragmented packets, protecting some Enable / Disable operating systems from some forms of attack, and drops TCP packets that have invalid flag combinations. © Microhard Systems Inc.
Page 68 DMZ Server IP listed below. Disable / Enable DMZ Server IP Enter the IP address of the device on the LAN side of the pDDL900 where Values (IP Address) all the traffic will be forwarded to. 192.168.100.100 © Microhard Systems Inc.
Page 69 If the internal server is behind a GRE tunnel this option will not add SNAT rule because the GRE tunnel has already masqueraded all requests which go through the GRE tunnel. © Microhard Systems Inc.
Page 70 Each rule must have a unique name, up to 10 characters in length. MAC_List MAC Address Specify the MAC Address to be added to the list. Must be entered in the Values ( MAC Address correct format as seen above. Not case sensitive. 00:00:00:00:00:00 © Microhard Systems Inc.
Page 71 Match incoming traffic from the specified destination IP range. Boxes Values (IP Address) accept single IP Addresses without network masks, example: 192.168.1.0 to 192.168.1.255 represents all IP Addresses in the 192.168.1.0/24 192.168.0.0 network. (Put same IP in both boxes for a single IP match.) © Microhard Systems Inc.
Page 72 This is configured based on how the WAN Request and LAN to WAN Access Control are configured in the previous menus. Source Select the zone which is to be the source of the data traffic. The LAN/WAN Values refers to local connections on the pDDL900. LAN/WAN/Independent LAN/None © Microhard Systems Inc.
Page 73 Match incoming traffic directed at the given destination port or port range. Values (port) (To specify a port range use a From:To (100:200) format) Protocol The protocol field defines the transport protocol type controlled by the rule. Values Both ICMP © Microhard Systems Inc.
Page 74 The firewall can be returned to default setting without requiring the entire modem to be reset to defaults. It is recommended to restart the modem once changes to the firewall or a reset is performed. Image 4-4-6: Firewall > Default © Microhard Systems Inc.
Page 75 Connect As - The type of IP Protocol Config is displayed here (TCP, UDP, SMTP, PPP, etc) • Connect Status - Shows if there are any current connections / if the port is active. • Image 4-5-1: Serial > Summary © Microhard Systems Inc.
Page 76 IP network through TCP, UDP, or multicast; it may also exit the pDDL900 network on another pDDL900 serial port. The fully-featured RS232 interface supports hardware Image 4-5-2: Serial > Settings Configuration © Microhard Systems Inc.
Page 77 Character Timeout set to 4, the timeout period is 4ms. When the calculated time is less than 3.5ms, the serial server will set the character timeout to a minimum value of 3.5ms. If the baud rate is greater than 19200bps, the minimum character timeout is internally set to 750us (microseconds). © Microhard Systems Inc.
Page 78 Disable / Enable serial data port when radio synchronization is lost. MODBUS TCP Status This option will enable or disable the MODBUS decoding and Values (selection) encoding features. Disable / Enable © Microhard Systems Inc.
Page 79 Established when the TCP Server will terminate the TCP connection is the connection is in large amounts of data are an idle state. being communicated. Default: 300 (seconds) Requires more bandwidth than UDP. © Microhard Systems Inc.
Page 80 UDP port which the IP Series listens to (monitors). UDP packets received on this port are uses port 80. forwarded to the unit’s serial port. Default: 20001 • UDP Timeout(s) UDP Timeout in seconds. Default: 10 © Microhard Systems Inc.
Page 81 PPP Idle Timeout(s) It is the timeout for tearing down the ppp connection when there is no data traffic within the time interval. When there is data coming, new ppp connection will be created. Default: 30 © Microhard Systems Inc.
Page 82 GS0 Serial Port Configuration The USB port configuration is identical to the Serial Port > Settings parameters. For help or definitions of each field, refer to the previous section of this manual which describes the available settings. © Microhard Systems Inc.
Page 83 4.6.2 Diag > Traceroute The Traceroute command can be used to provide connectivity data by providing information about the number of hops, routers and the path taken to reach a particular destination. Image 4-6-2: Diagnostics > Trace Route © Microhard Systems Inc.
Page 84 Select the type of packets to be sent to test the throughput. TCP packets Values (selection) are connection oriented and require additional overhead for the handshaking that occurs, while UDP is a connectionless, best effort TCP / UDP oriented protocol. © Microhard Systems Inc.
Page 85 The default password for ‘admin’ is ‘admin’. admin Confirm Password The exact password must be entered to confirm the password change, Values (characters) if there is a mistake all changes will be discarded. admin © Microhard Systems Inc.
Page 86 Min 5 characters Max 32 characters Password / Confirm Password Passwords must be a minimum of 5 characters. The Password must Values (characters) be re-entered exactly in the Confirm Password box as well. (no default) min 5 characters © Microhard Systems Inc.
Page 87 The pages that follow describe the different fields required to set up SNMP on the pDDL900. MIBS may be requested from Microhard Systems Inc. The MIB file can be downloaded directly from the unit using the ‘Get MIB File’ button on the Network >...
Page 88 SNMPv1 and SNMPv2c requests. This community name has private only READ/WRITE priority. Listening Port Enter the UDP port on which the pDDL900 listens for incoming SNMP Values (UDP Port) get/set messages. The default is port 161. © Microhard Systems Inc.
Page 89 The community name which may receive traps. (SNMP v1 & v2 only). Values (string) TrapUser Trap Manage Host IP Defines a host IP address where traps will be sent to (e.g. SNMP Values (IP Address) management system PC IP address). (SNMP v1 & v2 only). 0.0.0.0 © Microhard Systems Inc.
Page 90 Enable or Disable RSSI traps. The threshold in which that traps are Values (selection) triggered can also be configured, as well as the frequency at which the traps are sent when the threshold has been crossed. Disable / Enable (30-120) in -dBm (0 - 65535 seconds, 0=disabled.) © Microhard Systems Inc.
Page 91 4.0 Configuration WAN IP Values (selection) Enable or Disable WAN IP Traps. Device will send a trap any time the WAN IP has been changed. Generally used with dynamic IP addresses. Disable / Enable © Microhard Systems Inc.
Page 92 Microhard Radios employ a discovery service that can be used to detect other Microhard devices on a network. This can be done using a stand alone utility from Microhard Systems called ‘IP Discovery’ or from the Tools > Discovery menu. The discovery service will report the MAC Address, IP Address, Description, Product Name, Firmware Version, Operating Mode, and the Network ID.
Page 93 4.0 Configuration 4.7.4 Admin > Logout The logout function allows a user to end the current configuration session and prompt for a login screen. Image 4-7-6: Admin > logout © Microhard Systems Inc.
Page 94 Once verified, the AT Command Line Interface menu is shown and AT Commands can now be issued. (Type “?” or Help to list the commands). The factory default network settings: IP: 192.168.168.1 Subnet: 255.255.255.0 Gateway: 192.168.168.1 Image 5-2: Telnet AT Command Session © Microhard Systems Inc.
Page 95 Once AT commands are entered, they must be saved into the file system to enable the changes. AT&W Saves changes. ATO or ATA Exits the AT Command Line Interface, if used before AT&W, changes are discarded. © Microhard Systems Inc.
Page 96 <AuthPassword> : V3 Authentication Password 5 to 64 characters <Privacy> : V3 Privacy Protocol 0 - DES 1 - AES <PrivacyPassword>: V3 Privacy Password 5 to 64 characters Usage: NoAuthNoPriv : AT+MASNMPV3=<UserName>,<RWLimit>,0 AuthNoPriv : AT+MASNMPV3=<UserName>,<RWLimit>,1,<Auth>,<AuthPassword> AuthPriv AT+MASNMPV3=<UserName>,<RWLimit>,2,<Auth>,<AuthPassword>,<Privacy>,<PrivacyPassword> © Microhard Systems Inc.
Page 97 Get/Set Serial port no-connection data intake AT+MCNCDI2=<Mode> AT&W Parameters: COM2 Mode Option: 0 - Disable 1 - Enable AT+MCMTC2 Get/Set Serial port Modbus tcp configuration AT+MCMTC2=<Status> AT&W Parameters: COM2 Modbus Status: 0 - Disable 1 - Enable © Microhard Systems Inc.
Page 98 Get/Set Serial port escape sequence configura- AT+MCESCP2[=<Escape Mode>[,<Escape Guard Interval>,<Escape Sequence String>]] AT&W tion Parameters: COM2: Escape Mode : 0 - Disabled; 1 - Enabled Escape Guard Interval : 1 to 10 seconds Escape Sequence String : 3 to 7 characters © Microhard Systems Inc.
Page 99 : 0 - LAN 1 - Independent LAN 2 - WAN 3 - USB Source IP : Valid IP address Prefix : 0 ~ 32. 32 (default) - single IP address Usage: AT+MFIP AT+MFIP=<Name> AT+MFIP=<Name>,DEL AT+MFIP=<Name>,ADD,<Action>,<Source>,<IP Address>[,<Prefix>] AT+MFIP=<Name>,EDIT,<Action>,<Source>,<IP Address>[,<Prefix>] © Microhard Systems Inc.
Page 100 : Alternate DNS server address to be assigned to DHCP devices WINS/NBNS Server : WINS/NBNS Servers WINS/NBT Node : WINS/NBT Node Type 0 - none 1 - b-node 2 - p-node 3 - m-node 4 - h-node © Microhard Systems Inc.
Page 101 Alt. Gateway : Alternate Gateway for DHCP assigned devices if the default gateway is not to be used Pre. DNS : Preferred DNS server address to be assigned to DHCP devices Alt. DNS : Alternate DNS server address to be assigned to DHCP devices © Microhard Systems Inc.
Page 102 Transmit packets : 0 Default Gateway : 192.168.168.1 DNS Server(s) : None Kernel IP routing table Destination Gateway Subnet Mask Flags Metric Ref Use Iface 0.0.0.0 192.168.168.1 0.0.0.0 0 br-lan 192.168.168.0 0.0.0.0 255.255.255.0 U 0 br-lan © Microhard Systems Inc.
Page 103 AT+MNUSBDNS[=<Mode>[,<Primary DNS>,<Secondary DNS>]] AT&W Usage: AT+MNUSBDNS AT+MNUSBDNS=<Mode> Where <Mode>=0 AT+MNUSBDNS=<Mode>[,<Primary DNS>,<Secondary DNS>] Where <Mode>=1 Parameters: Mode: 0 - Auto 1 - Manual Primary DNS: Valid IP Address or 0 (Reset) Secondary DNS: Valid IP address or 0 (Reset) © Microhard Systems Inc.
Page 104 AT+MSWEBUI[=<Mode>[,<HTTP Port>][,<HTTPS Port>]]] AT&W Parameters: <Mode> : 0 - HTTP/HTTPS 1 - HTTP 2 - HTTPS 3 - Disable <HTTP Port> : 2 to 65534. 80 by default <HTTPS Port> : 2 to 65534. 443 by default © Microhard Systems Inc.
Page 105 : 0 - GS0 IP Protocol Config : 0 - TCP Client 1 - TCP Server 2 - TCP Client/Server 3 - UDP Point to Point 4 - UDP Point to Multipoint(P) 5 - UDP Point to Multipoint(MP) © Microhard Systems Inc.
Page 106 UDP point to multipoint (MP) Parameters: USB Serial: 0 - GS0 Remote IP: valid IP address Remote Port: 1 to 65535 Multicast IP: valid IP address Multicast Port: 1 to 65535 Multicast Interface: 0 - default 1 - LAN © Microhard Systems Inc.
Page 107 1 - QPSK FEC 3/4 2 - 16-QAM FEC 1/2 3 - 16-QAM FEC 3/4 4 - 64-QAM FEC 2/3 AT+MWVMODE Get/Set radio mode AT+MWVMODE[=<Virtual Interface Mode>] AT&W <Virtual Interface Mode> : 0 - Master 1 - Slave © Microhard Systems Inc.
Page 108 AT+MWNOISEFLOOR <enter> Immediate Sample Output: AT+MWSQTHRESH Get/Set Squelch threshold AT+MWSQTHRESH[=<Squelch Threshold>] AT&W Squelch Threshold : -1 to -128 (-1 = Turn off the threshold) AT+MWRSSI Get radio RSSI AT+MWRSSI <enter> Immediate Sample Output: 00:0F:92:FA:59:F9 -74 dBm © Microhard Systems Inc.
Page 109 ‘numbers’ for radio path calculations. Fortunately, the Pico Series features the maximum available transmit power combined with exceptional receive sensi- tivity - two ‘numbers’ which will produce the most favorable path calculation results. © Microhard Systems Inc.
Page 110 The channel selection of the pDDL often allows it to work well in an environment within which there may be sources of in-band interference. Cavity filters are also available if required: con- tact Microhard Systems Inc. for further information. © Microhard Systems Inc.
Page 111 Tx power = 30dBm Tx antenna gain = 6dBi System Gain = [30+(6-2)+(3-2)+108]dB Tx cable/connector loss = 2dB = [30+4+1+108]dB = 143dB. Rx antenna gain = 3dBi Rx cable/connector loss = 2dB Rx sensitivity = -108dBm © Microhard Systems Inc.
Page 112 The network topology, application, and path calculation are all taken into consideration when selecting the various antenna types to be used in a radio network deployment. Never work on an antenna system when there lightning in the area. © Microhard Systems Inc.
Page 113 Paging towers and cellular base stations in close prox- comply with imity to the pDDL’s antenna can desensitize the receiver. Microhard Systems Inc.’s external cavi- regulations, the maximum ty filter eliminates this problem. The filter has two N-female connectors and should be connected...
Page 114 (DCE); the module transmits data on the RX line, and receives on TX. “DCE” and “module” are often synonymous since a module is typically a DCE device. “DTE” is, in most applications, a device such as a host PC. © Microhard Systems Inc.
Page 115 9. Wait for the unit to recover and reboot. * Windows PCs may not have TFTP enabled by default. To add TFTP to your system. Search for “Turn Windows Features On or Off” and set up according to your system. © Microhard Systems Inc.
Page 117 The pDDL can support a second serial port by utilizing a FT234XD USB to serial UART interfaced to the USB lines of the pDDL. The sample circuit below shows how this is done. Drawing App-D: FTDI USB to Basic UART © Microhard Systems Inc.
Page 118 Answer: In addition to the basic serial port settings, the IP Protocol Config has to be configured. Refer to the COM0/1 Configuration pages for a description of the different options. ___________________________________________________________________ Additional topics will be added in future releases. © Microhard Systems Inc.
Page 119 150 Country Hills Landing NW Calgary, Alberta Canada T3K 5P3 Phone: (403) 248-0028 Toll Free: 1-855-353-0028 www.microhardcorp.com © Microhard Systems Inc.
