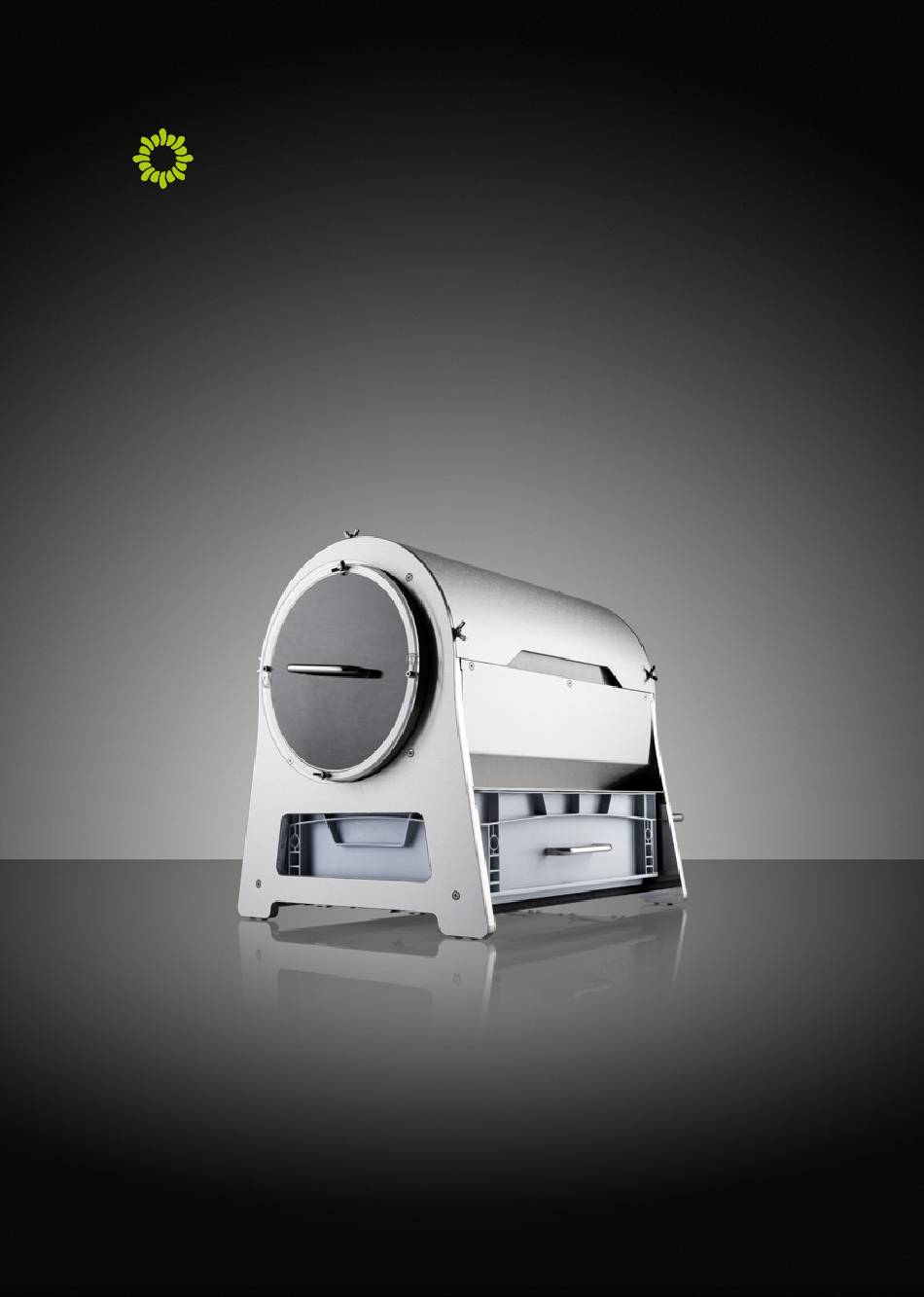

- Page 1 SUNFLOWER TRIMMER® TRIMMING IS EASY TRIMMER M, L® USER MANUAL WARRANTY FORM www.sunflower-trimmer.com...
- Page 2 Dry trimming for mid-sized growers The perfect balance of speed and efficiency for highly productive operations. The Dry Trimmer M © and Dry Trimmer L © share the same design, features, and opera- tion, differing mainly in capacity. This manual applies to both models, with any differences noted where necessary.
- Page 3 1. Potential risks and safety warning 1.1 Protective equipment 1.2 Machine unpacking and installation 1.3 Other risks and recommendations 2. Machine basic description 2.1 General information 2.2 Range of use 2.3 Electrical connection 3. Operating and handling 3.1 Connection to power source 3.2 Leveling and start up 3.3 Flowers infeeding and trimming 3.4 Cleaning after work...
- Page 4 1.2 MACHINE UNPACKING AND INSTALLATION When unpacking the machine out of the box, please follow the instruction below: 1. Unpacking the machine from the wooden box 2. Assembly completed SUNFLOWER TRIMMER ®...
- Page 5 1.3 OTHER RISKS AND RECOMMENDATIONS Keep in mind your own safety at all time. Do not use the trimmer in a dusty or wet environment. The electromotor is not water resistant. Never touch or open the top cover when the motor and the rotor is rotating. Never open the top cover of the machine when the motor and rotor is rotating.
- Page 6 2. MACHINE BASIC DESCRIPTION The Dry Trimmer M © is a fully automated dry trimming device with a dry trimming capacity of 3 kg/hour suitable for smaller-scale home growers and those working on budget. Its optimized cutting system and compact size ensure quick and effortless dry trimming results for home cultivators.
- Page 7 2.1 GENERAL INFORMATION • The ON / OFF switch is positioned on the top of the power source box. • The end of the tumbler can be covered by a removable transparent lid which prevents the buds from spilling and allows for an easy inspection of the trimming process. •...
- Page 8 Connect the proper end of the power cable into the connector. Connect the other end of the cable into the wall socket. 3.2 LEVELING AND START UP The machine is ready when placed on stable surface in a horizontal position. SUNFLOWER TRIMMER ®...
- Page 9 Make sure that the butterfly screws are tightened! Do not power on the machine without the trasparent lid and tightened screws screws tightened The machine starts up by the ON/ OFF button on the power source box. ON/OFF button Keep in mind all the safety precautions stated above during power on of the trimmer! www.sunflower-trimmer.com...
- Page 10 3.3 FLOWERS INFEEDING AND TRIMMING 1. Remove the transparent lid. 2. Tilt the machine upwards Never insert dirty flowers into the machine. Insert only clean flowers without stalks or other parts which could damage the machine. SUNFLOWER TRIMMER ®...
- Page 11 3. Feed the flowers 4. Tilt the machine back to the horizontal position and put back and secure the transparent lid. Now the machine is ready for trimming. www.sunflower-trimmer.com...
- Page 12 5. After the trimming, collect the trimmed buds from the tumbler. 6. Then discard the cut leaves collected in the drawer. SUNFLOWER TRIMMER ®...
- Page 13 3.4 CLEANING AFTER WORK We recommend to clean the cutting plastic sheet, the tumbler and both transparent lids, drawer and any parts of the machine which came into contact with flowers. Always disconnect the machine from the power source before cleaning! We don‘t recommend cleaning the surface with hard materials, especially iron tools! There is a risk of damage to the surface which may result in corrosion! Pay close attention to avoid injury from contact with sharp parts of the machine!
- Page 14 Make sure the machine is uplugged from electricity and its parts are not moving. 1. Remove the transparent lid and unscrew one butterfly screw in the tumbler. 2. Then uscrew six butterfly screws which are holding the tumbler cover and remove it. SUNFLOWER TRIMMER ®...
- Page 15 3. Unscrew the three butterfly screws which are holding the brush and release the two springs which are holding the cutting sheet. 4. Remove the tumbler from the machine. 5. Exchange the tumbler and perform the steps above in the reversed order. www.sunflower-trimmer.com...
- Page 16 • Clean all the dirty spots on the machine using alcohol-based cleaner or other solvent. • Make sure that no cut pieces of the plant get outside of the cutting area. • Empty and clean the drawer. SUNFLOWER TRIMMER ®...
- Page 17 5. STORAGE Store your machine in a clean and dry place! www.sunflower-trimmer.com...
- Page 18 You want to trim dry and fast our machines will make it happen. It makes you more competitive. It‘s a key factor in your business success DRY TRIMMER M® Small batch dry trimming Dry trimming solution for small and mid-sized...
- Page 19 Include name of the retailer, date of purchase and serial number of the machine. • You will receive a confirmation by email within one week. Model of the machine Serial number: DRY TRIMMER M Stamp Sunflower-Trimmer, s.r.o.: Stamp seller: Sunflower-Trimmer, s.r.o. Kaprova 42/14 tel.: +420 602 418 139...
- Page 20 WWW.SUNFLOWER-TRIMMER.COM...
