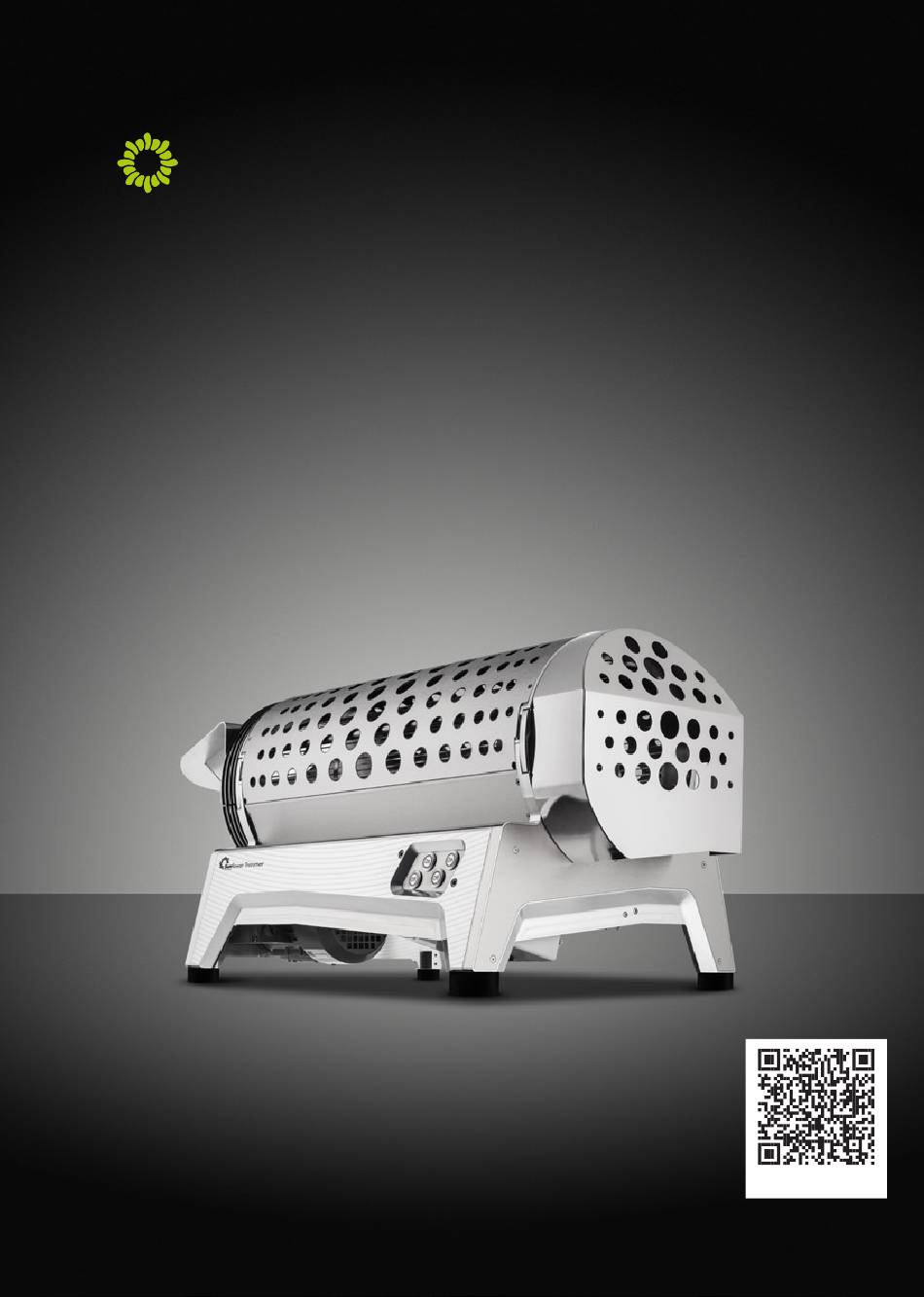

- Page 1 SUNFLOWER TRIMMER® TRIMMING IS EASY AUTOMATIC XL 2.0, L 2.0 L-LIGHT 2.0 USER MANUAL WARRANTY FORM Video manual www.sunflower-trimmer.com...
- Page 2 L 2.0 L-LIGHT 2.0 The instructions in this manual apply to these automatic trimmer models. Their operation, functionality and handling is very similar. AUTOMATIC TRIMMER XL 2.0 AUTOMATIC TRIMMER L 2.0 AUTOMATIC TRIMMER L - LIGHT 2.0 SUNFLOWER TRIMMER ®...
-
Page 3: Table Of Contents
1. Potential risks and safety warning 1.1 Protective equipment 1.2 Machine unpacking and installation 1.3 Other risks and recommendations 2. Machine basic description 2.1 General information 2.2 Range of use 2.3 Electrical connection 3. Operating and handling 3.1 Connection to power source 3.2 Leveling and start up 3.3 Rotor / cutting blade adjustment 3.4 Flowers infeeding... -
Page 4: Machine Unpacking And Installation
When unpacking the machine out of the box, please follow the instruction below: This procedure is the same for all 3 automatic trimmer models ( XL 2.0, L 2.0, L-Light 2.0) 1. Unpacking of the workstation 2. Unpacking of the trimmer 3. Installation of the trimmer on the workstation SUNFLOWER TRIMMER ®... - Page 5 4. Unpacking of the hopper 6. Mounting of the hopper and of the front cover 5. Unpacking of the front cover 7. Ventilator connection Connect the ventilator to the trimmer via the plastic hose. www.sunflower-trimmer.com...
- Page 6 8. Bag installation 9. Machine assembly completed SUNFLOWER TRIMMER ®...
-
Page 7: Other Risks And Recommendations
Model L - Light 2.0 operates on the table top and does not have a workstation. 1.3 OTHER RISKS AND RECOMMENDATIONS Keep in mind your own safety at all time. Do not use the trimmer in a dusty or wet environment. The electromotor is not water resistant. Never touch the top cover when the motor and the rotor is rotating. -
Page 8: Machine Basic Description
The frame is made of aluminum sides. A stainless steel casing is attached to the frame of the device. The motor is located outside the device. Next to the motor there is a rotor of the cutter together with an adjustable knife. The whole device stands on adjustable silent blocks. SUNFLOWER TRIMMER ®... -
Page 9: General Information
2.1 GENERAL INFORMATION • The control panel is positioned on the front side of the trimmer. • The blade and cutting mechanism are self adjustable. You can read more about the cutting mechanism adjustment in the chapter 3.3 - Rotor / cutting blade adjustment. •... -
Page 10: Operating And Handling
Serves for the ventilator connection. 3.2 LEVELING AND START UP We recommend to set up the machine to be inclined a bit using the adjustable legs. Automatic Trimmer XL 2.0, Automatic Trimmer L - Light 2.0 Automatic Trimmer L 2.0, SUNFLOWER TRIMMER ®... - Page 11 Make sure that the locking levers are in the correct position! Do not power on the trimmer without levers in the "locked" position unlocked locked The trimmer starts up by the left power ON button. The ventilator starts up by the right power ON button. motor ON ventilator ON motor ON/OFF...
-
Page 12: Rotor / Cutting Blade Adjustment
The blade is released and ready for cleaning. After cleaning, put the blade back to the trimming position and secure the levers. Always make sure the machine is disconnected from power source when opening it. SUNFLOWER TRIMMER ®... -
Page 13: Flowers Infeeding
unlocked locked 3.4 FLOWERS INFEEDING The flowers are inserted into the machine using the hopper. Never insert dirty flowers into the machine. Insert only clean flowers without stalks or other parts which could damage the machine. www.sunflower-trimmer.com... -
Page 14: Cleaning During Work
Unscrew 4 butterfly screw to gain access to the rotor. Cleaning of the cutting blade Turn 2 levers to release the blade and clean all the dirty spots. Don't forget to put the levers and blade to the locked position after cleaning. SUNFLOWER TRIMMER ®... -
Page 15: Tumbler Exchange
Cleaning of the ventilator Before cleaning of the ventilator unscrew the winged screws and remove the upper flange from the ventilator. 3.6 TUMBLER EXCHANGE Use maximum caution when exchanging the tumbler and follow these instruction: Make sure the trimmer is uplugged from electricity and its parts are not moving. 1. - Page 16 3. Remove the tumbler and insert a new one 4. Close the upper frame of the device and secure the locks in the correct position locked unlocked SUNFLOWER TRIMMER ®...
-
Page 17: Cleaning
4. CLEANING After each use of the trimmer we recommend the following: • Clean all the dirty spots on the machine using alcohol-based cleaner or other solvent. • Make sure that no cut pieces of the plant get outside of the cutting area. - Page 18 SUNFLOWER TRIMMER® TRIMMING IS EASY THE ULTIMATE TRIMMING EXPERIENCE By automating harvesting routines, we help professional cannabis and hemp growers produce a higher quality product faster to increase profits. fast & reliable light & compact efficient SUNFLOWER TRIMMER ®...
-
Page 19: Warranty
6. WARRANTY FORM In order to acquire a 5 year warranty according to our warranty conditions available on www.sunflower-trimmer.com it‘s necessary to complete the following: • Fill out and keep the warranty form. • Complete the warranty form with stamp of the seller and date of purchase. •... - Page 20 WWW.SUNFLOWER-TRIMMER.COM...
