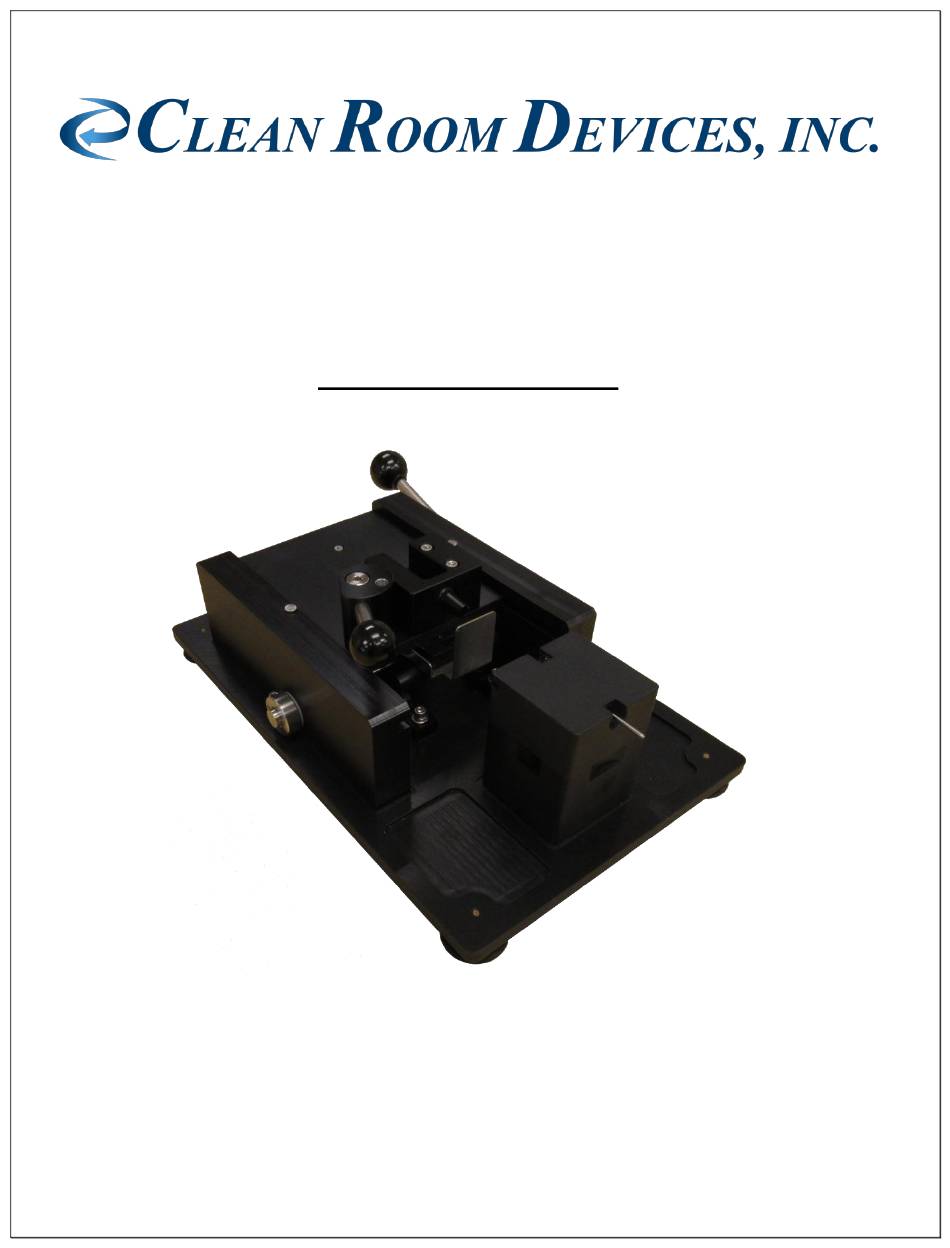

  • Page 1 CRD 410 MANUAL FITTING INSERTER OPERATIONS MANUAL VERSION 2.2 LAST EDITED 03.01.2022 cleanroomdevices.com...
  • Page 2 Table of Contents Title Page…………………………………………………………………………1 Table of Contents…………………………………………………………………2 1.0 General Product & Safety Information……………………………………...3 Product Information Safety Information 2.0 Installation……………………………………………………………….….3 Jaw Installation Nest Installation 3.0 Operation……………………………………………………………………5 4.0 Maintenance……………………………………………………………...…7 5.0 Product Specifications……………………………………………………..7 6.0 Durometer Scale…………………………………………………………….8 7.0 Parts List…………………………………………………………………..8 8.0 Warranty……………………………………………………………………..10 Warranty Warranty Period...
  • Page 3 1.0 General Product & Safety Information Product Information • The Fitting Inserter is designed to hold and locate soft tubing and push it onto fittings. • The minimum/maximum outside tube diameter is 1/16” to 3/8” Safety Information • This product uses a geared lever action to insert fitting into tubing. Avoid placing your hands or fingers between the jaws or the nest.
  • Page 4 Figure 3 Figure 4 2.2 Nest Installation • Select the nest set that corresponds to the fitting being used. • Rotate the nest to fitting position desired and simply place on the four (4) dowel pins. • A magnet holds the nest in place. (Figure 5) Figure 5 3.0 Operation Setting the Stop Gate...
  • Page 5 Figure 6 Loading Nest and Jaws • Ensure that the thrust lever is all the way back and the stop gate is in the upright position. • Lock the fitting into the nest, ensuring the fitting is properly seated. (Figure 6) Figure 6 •...
  • Page 6 Figure 7 Figure 8 • Pull the thrust lever back until the fitting is inserted to desired position. (Figure 9) • Open the jaws and then push the thrust lever partway forward so as to clear the stop gate. (Figure 10) •...
  • Page 7 Figure 11 • Move the Stop Gate Lever to the “up” position to reset the Stop Gate. (Figures 11a & 11b) 4.0 Maintenance • Wipe down outer surfaces with alcohol, septihol or mild detergents as required. • Once every three months check screws for tightness. 5.0 Product Specifications Unit Weight 11 LBS / 4.99 KG...
  • Page 8 6.0 Durometer Scale 7.0 Parts List...
  • Page 9 Item Part Number Number Description P00469 SHOULDER SCREW, .375 X 1.25 P00470 WAVE SPRING, .375 ID P00473 BALL KNOB, 1.00 DIA, BLACK P00472 LEVER SHAFT, .375 X 1.75 410-008 CAM, JAW ACTION P00468 WASHER, .375, PTFE P00471 HEX NUT, .3125-18 THIN 410-006 PLATE, SLIDE P00524...
  • Page 10 For additional information contact: www.cleanroomdevices.com Clean Room Devices, Inc. 10855 Dover Street, Suite 100 Westminster, CO 80021...
