Bonaire
Convector Heater
Convector Heater
HPF5100024
BONAIRE CONVECTOR HEATER 2400W
READ AND SAVE THESE INSTRUCTIONS
Read all instructions carefully before setting up and operating this unit.
This manual is designed to provide you with important information needed to setup, operate, and maintain
your convector heater.
Failure to follow these instructions may damage and/or impair its operation and void the warranty.
.
Due to continuous research and development the specifications herein are subject to change without notice
Advertisement
Related Manuals for BONAIRE HPF5100024
Summary of Contents for BONAIRE HPF5100024

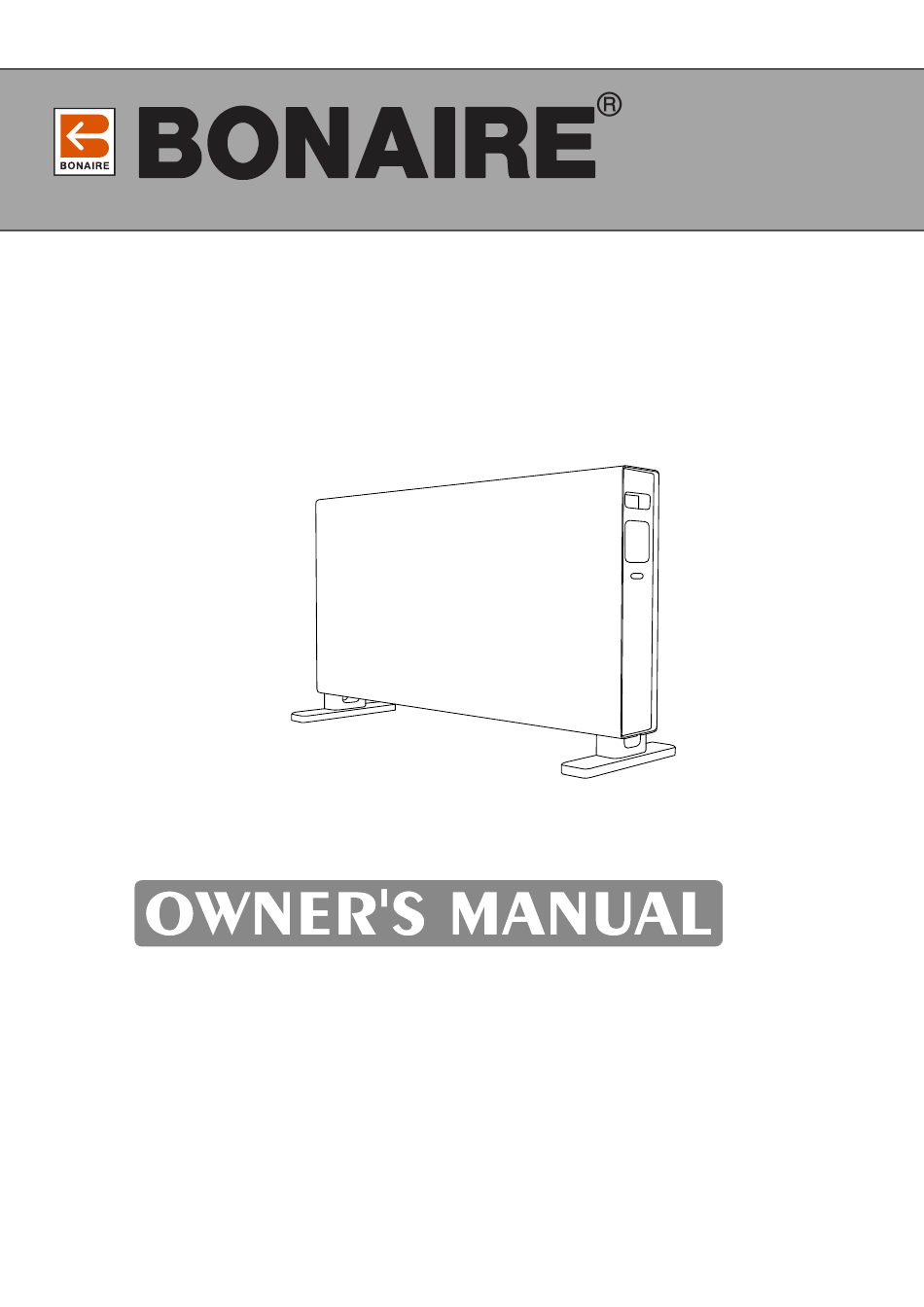

- Page 1 Convector Heater Convector Heater HPF5100024 BONAIRE CONVECTOR HEATER 2400W READ AND SAVE THESE INSTRUCTIONS Read all instructions carefully before setting up and operating this unit. This manual is designed to provide you with important information needed to setup, operate, and maintain your convector heater.
- Page 2 Bonaire Convector Heater SAFETY PRECAUTIONS • This product is not a toy. It should not be used by children or infirm persons without supervision. • Children of less than 3 years should be kept away unless continuously supervised. • Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 3 Bonaire Convector Heater • When the heater is turned on for the first time, it may release a slight, harmless odour. This odour is a normal occurrence caused by the initial heating of the internal heating elements and should not occur again.
- Page 4 Bonaire Convector Heater CONTROL PANEL 1. Air outlet 2. Handle 3. LED display 4. Power switch 5. Control panel 6. Standing feet ACCESSORIES 1. Screws: 4 pcs 2. Standing feet: 2pcs FEET ASSEMBLY INSTRUCTIONS Gently turn the heater body upside down and put it on a soft, flat surface. Please refer to following pictures:...
- Page 5 Bonaire Convector Heater turn the heater in the upright direction again and put the heater on a flat floor. INSTALLATION Your appliance shall be used as portable appliance only. 1. Put the heater on a flat, dry and clean floor.
- Page 6 Bonaire Convector Heater Operation Power1 indicator Power2 indicator WiFi indicator LED display Temperature/Timer display Fan indicator Fan/WiFi button Standby button Decrease button Operation button Power setting button Increase button Timer button 1. Plug the appliance to AC 220-240V 50-60Hz socket. Please verify the rated current of the power socket whether it fits the requirements and equipped with a safety grounding device;...
- Page 7 Bonaire Convector Heater setting selected accordingly on the LED display. ICON display Power 1 Power 2 Power 3 Power Level 1000W 1400W 2400W 6. Timer setting: Press button , the display will show “0h”, Press s to set the timer for 1/2/3…23/24 hours, the display will show the heating time left before the heater is switched off...
- Page 8 Bonaire Convector Heater Wi-Fi Connection Use your phone to scan the QR code below or search for the “TUYA SMART” App to download and create a free account. You can also visit www.tuya.com for more information. Select your country code, enter your mobile number, and select “Get” to receive a message containing your verification code.
- Page 9 Bonaire Convector Heater 1. Quick Connection: Turn on the Bluetooth of you mobile phone, then follow these steps:...
- Page 10 Bonaire Convector Heater 2. Normal Connection: If the Bluetooth is not on, please follow the next steps:...
- Page 11 Bonaire Convector Heater App control panel...
- Page 12 Bonaire Convector Heater Remote Control...
- Page 13 Bonaire Convector Heater Fan button WiFi button Power setting button Increase button Decrease button Timer button Standby button Cleaning and Maintenance Warning! Always disconnect the main power supply before cleaning the unit. Follow the instructions below for cleaning the unit: Use a soft dry cloth to clean the surface of the product.
- Page 14 Bonaire Convector Heater Specifications Power supply: AC220-240V, 50-60Hz Low power ( ) : 1000 W Middle power ( ): 1400W High power ( ): 2400W Overheat Safety Device Your heater is fitted with a safety device to switch off the heater in the event of overheating. If the safety device is activated, please turn the heater off, unplug the appliance and let it completely cool.
- Page 15 Bonaire Convector Heater WARRANTY INFORMATION Product Sr. No. The warranties contained in this document ("the warranty") are provided voluntarily by Climate Technologies (as manufacturer) to you (as consumer) in relation to your purchase of a product from Climate Technologies ("the product") and are in addition to any rights you may have under the Australian Consumer Law or other applicable legislation.
- Page 16 Bonaire Convector Heater • This warranty is only valid if the product is operated and maintained in accordance with the manufacturer's instructions. • The appliance must not be modified or changed in any way. • Your proof of purchase MUST be produced before free service will be provided together with a valid serial number.
- Page 17 Climate Technologies to proceed with the remedial action prescribed under this warranty. Service Hotline: 1300 665087 e-mail us: service@climtech.com.au Book a request online at: www.bonaire.com.au/support Warranty on Replacement Parts Parts replaced under warranty are warranted for the balance of the original warranty period.
- Page 18 Scan the QR code below using your mobile device and follow the fill out the online warranty registration form. Option2 Visit our website at: www.bonaire.com.au/service and complete our online warranty registration form. Option3 Fill out the details below and post this page together with a copy of your proof of purchase to:...
