Bonaire
Infrared Radiant Heater
INFRARED RADIANT HEATER
READ AND SAVE THESE INSTRUCTIONS
Read all instructions carefully before setting up and operating this unit.
This manual is designed to provide you with important information needed to setup, operate, maintain for your
radiant heaters.
Failure to follow these instructions may damage and/or impair its operation and void the warranty.
.
Due to continuous research and development the specifications herein are subject to change without notice
Advertisement
Table of Contents
Related Manuals for BONAIRE HOR5400024
Summary of Contents for BONAIRE HOR5400024

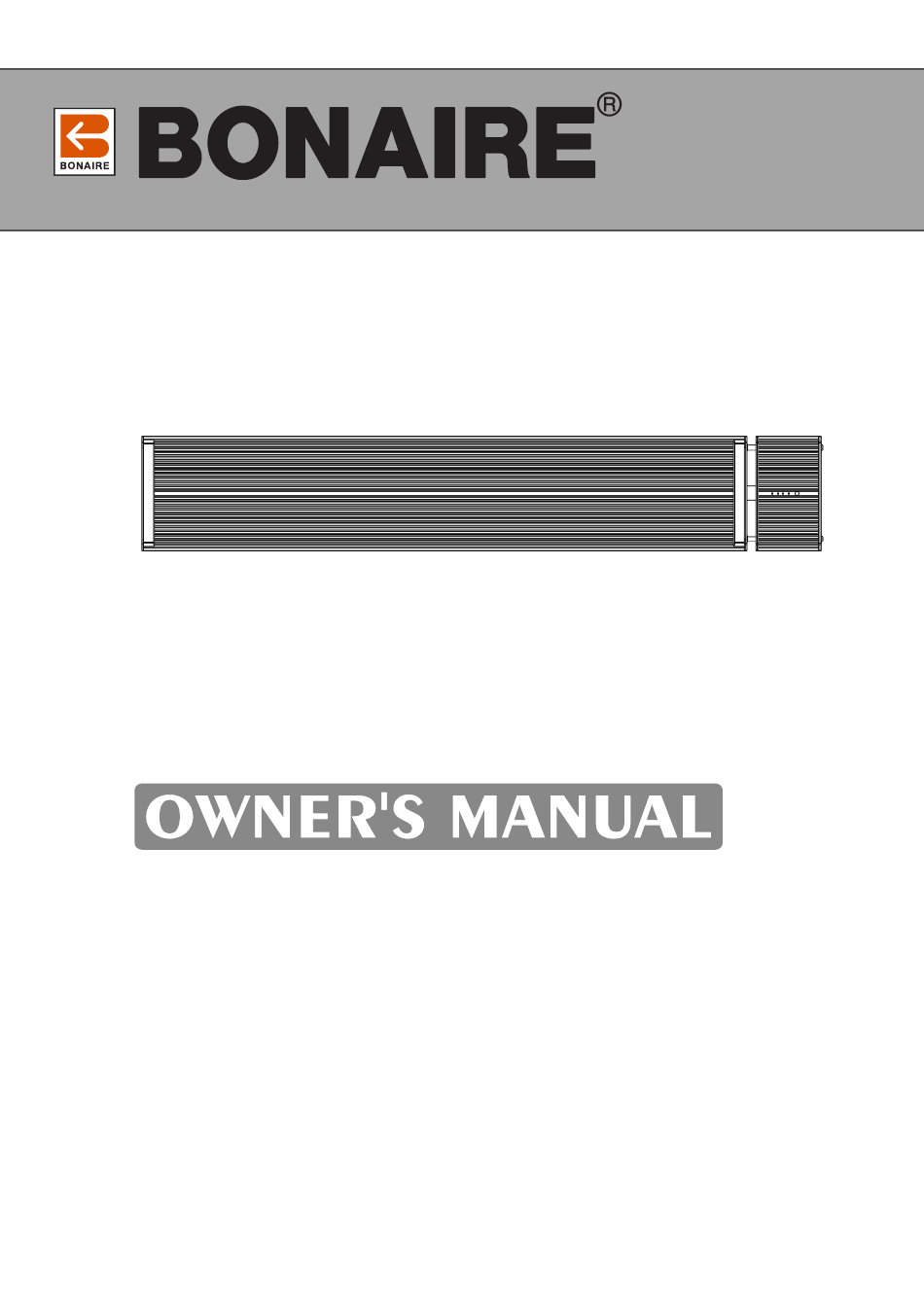

- Page 1 Bonaire Infrared Radiant Heater INFRARED RADIANT HEATER READ AND SAVE THESE INSTRUCTIONS Read all instructions carefully before setting up and operating this unit. This manual is designed to provide you with important information needed to setup, operate, maintain for your radiant heaters.
-
Page 2: Safety Precautions
Bonaire Infrared Radiant Heater SAFETY PRECAUTIONS This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Operating Conditions
(4) Ground wire should be connected to the grounding device of the building. Please do not connect the ground to gas pipe, water pipe, lightning rod or telephone grounding wire. Model No. Power(W) Rated Current(A) Voltage(V) HOR5400024 2400 10.4 220-240 HOR5400032 3200 13.9... -
Page 4: Installation Instruction
Bonaire Infrared Radiant Heater INSTALLATION INSTRUCTION Model No. Dimension A Dimension B HOR5400024 1625mm 1200mm HOR5400032 2125mm 1700mm... - Page 5 Bonaire Infrared Radiant Heater Step 1：Remove packing from both ends of the heater. Step 2：Connect the adjusting bracket to the sliding bracket. Step 3：Installation of sliding bracket on the heater, as shown below.
- Page 6 Bonaire Infrared Radiant Heater Step 4：Fix adjusting bracket onto the wall using expansion screws. Step 5：Installation of the two adjusting brackets. Ensure brackets are secure in position by tightening the butterfly thumb screw.
-
Page 7: Installation Diagram
Bonaire Infrared Radiant Heater INSTALLATION DIAGRAM Wall Installation Ceiling Installation... -
Page 8: Electrical Wiring Diagram
Bonaire Infrared Radiant Heater ELECTRICAL WIRING DIAGRAM Heater Circuit Board AC Power Input EARTH DISPLAY INTERFACE LED indicator There are 4 LED indicators on the heater as shown above, which indicate the heating level. Please note that the first LED has two colour states: red and green. -
Page 9: Manual Button
Bonaire Infrared Radiant Heater LED off LED glowing red LED glowing green Power level 25% Power level 50% Power level 75% Power level 100% No timer function (the clock has not been set) The heater will automatically turn off/on after 2 hours. -
Page 10: Remote Controller Instructions
Bonaire Infrared Radiant Heater REMOTE CONTROLLER INSTRUCTIONS Remote appearance Remote LED display 1. ON/OFF button Press ON/OFF button to turn the heater on/off. 2. Clock button Remote is powered on (as show in picture 2-1), present time is 00:00, time setting as follow: 1) Press clock button, the hour will flash (as shown in picture 2-2), press up or down button to change the value for hour. -
Page 11: Timer Off
Bonaire Infrared Radiant Heater 3. Heat button Press the Heat button to adjust the power when the heater is on (as shown in picture 3-1). Pic3-1 4. Fast hot button Press the fast hot button to turn the fast hot function on/off. -
Page 12: Inspection Items After Installation
Bonaire Infrared Radiant Heater Pic6-1 Pic6-2 Pic6-3 Pic6-4 INSPECTION ITEMS AFTER INSTALLATION Possible issue caused improper Items to be checked installation Is the unit securely installed in place? The equipment may fall off or shake. Is heat insulation and space to surrounding objects Objects close to the unit may be damaged or burnt. -
Page 13: Specifications
Infrared Radiant Heater PACKING LIST Name Heater 1 pc Remote controller 1 pc Adjusting bracket 1 set Fastener 1 set Sliding bracket 1 set SPECIFICATIONS Package Gross Model No. Dimension(mm) size(mm) weight(kg) weight(kg) HOR5400024 1625x189x67 1720x250x150 11.3 HOR5400032 2125x189x67 2220x250x150 12.3 14.3... -
Page 14: Warranty Information
Bonaire Infrared Radiant Heater WARRANTY INFORMATION Product Sr. No. The warranties contained in this document ("the warranty") are provided voluntarily by Climate Technologies (as manufacturer) to you (as consumer) in relation to your purchase of a product from Climate Technologies ("the product") and are in addition to any rights you may have under the Australian Consumer Law or other applicable legislation. -
Page 15: Warranty Period
Bonaire Infrared Radiant Heater • This warranty is only valid if the product is operated and maintained in accordance with the manufacturer's instructions. • The appliance must not be modified or changed in any way. • Your proof of purchase MUST be produced before free service will be provided together with a valid serial number. - Page 16 Climate Technologies to proceed with the remedial action prescribed under this warranty. Service Hotline: 1300 665087 e-mail us: service@climtech.com.au Book a request online at: www.bonaire.com.au/support Warranty on Replacement Parts Parts replaced under warranty are warranted for the balance of the original warranty period.
-
Page 17: Warranty Registration
Scan the QR code below using your mobile device and follow the fill out the online warranty registration form. Option2 Visit our website at: www.bonaire.com.au/service and complete our online warranty registration form. Option3 Fill out the details below and post this page together with a copy of your proof of purchase to:...
