Summary of Contents for POLYGON COLLOSUS DH9

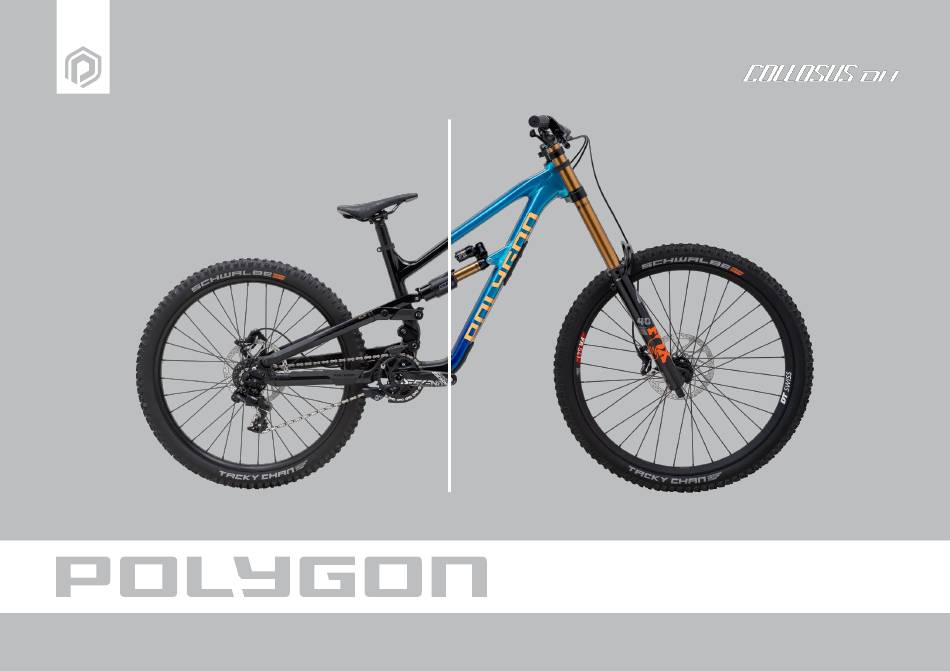

- Page 1 COLLOSUS DH MANUAL GUIDE COLLOSUS COLLOSUS 2025...
- Page 2 C O N G RA TU L A TI O N S ! Congratulations for buying Polygon Bikes! A bicycle is a great tool for transportation and recreation. Hopefully, you can find enjoyment and have a great deal of use in every ride. This manual contains important information which includes safety, performance, and maintenance.
- Page 3 COLLOSUS DH CONTENT INTRODUCTION TABLE OF CONTENT EXPLODED VIEW FRAME KITS ASSEMBLY INSTRUCTION REGULAR INSPECTION HOW TO CLEAN THE BIKE HOW TO MAINTAIN THE BIKE CHAIN 02 / Table of Content MANUAL GUIDE...
- Page 4 COLLOSUS DH EXPLODED VIEW 03 / Exploded View MANUAL GUIDE...
- Page 5 COLLOSUS DH FRAME KITS TORQUE QTY / PART ARTICLE ITEM ITEM DETAILS SOLD (N.m) FRAME 140295 SHOCK LINK SHOCK LINK FOR COLLOSUS DH PER PIECE 140296 SECOND LINK SECOND LINK FOR COLLOSUS DH PER PIECE 140297 FIRST LINK FIRST LINK FOR COLLOSUS DH PER PIECE 735301 BEARING SPACER...
- Page 6 COLLOSUS DH FRAME KITS TORQUE QTY / PART ARTICLE ITEM ITEM DETAILS SOLD (N.m) FRAME BOLT M4x0.7, L12, HEX2.5 140300 CABLE GUIDE SET AS A SET CABLE GUIDE 736043 CS PROECTOR RUBBER CHAIN STAY POROTECTOR PER PIECE REPLACABLE DROP 738268 UNIVERSAL DERAILLEUR HANGER PER PIECE CABLE GUIDE WITH...
- Page 7 COLLOSUS DH FRAME KITS TORQUE QTY / PART ARTICLE ITEM ITEM DETAILS SOLD (N.m) FRAME 140302 BOLT UDH STOPPER BOLT M5X0.8, L14, T6, HEX4 PER PIECE EXPANDANDABLE FLOATING SPACER FIRST LINK EXPANDER 140306 PIVOT SHAFT M12X1.25, L90, T15.5, HEX6 AS A SET PIVOT SPACER ID12, OD14.5, L37 140307 ENDURO BEARING...
- Page 8 COLLOSUS DH CHAIN STAY ASSEMBLY 07 / Assembly Instruction MANUAL GUIDE...
- Page 9 COLLOSUS DH SEAT STAY ASSEMBLY 08 / Assembly Instruction MANUAL GUIDE...
- Page 10 COLLOSUS DH REAR SHOCK AND ACCESSORIES ASSEMBLY 09 / Assembly Instruction MANUAL GUIDE...
- Page 11 COLLOSUS DH REGULAR INSPECTION REGURAL INSPECTIONS BEFORE RIDING THE BICYCLE Before riding the bicycle, check the following items. If any problems are found, consult your place of purchase or a distributor. Is there any looseness or damage in the Does the drive train perform gear shifting component parts? smoothly? Are the components securely installed to the...
- Page 12 COLLOSUS DH HOW TO CLEAN THE BIKE NOTE • Use the righ bike wash Wipe bike Use a bike wash or make sure your immediately until it’s wet cloth to clean every bike component dry. Do not leave it in up every part of and frame is safe.
- Page 13 COLLOSUS DH HOW TO CLEAN THE BIKE’S CHAIN Use a bike chain cleaner and gently Wipe with a clean and dry cloth, and let Lube the chain reguralry brush it. it dray for minutes. 12 / How to Clean the Bike’s Chain MANUAL GUIDE...
- Page 14 COLLOSUS DH MANUAL GUIDE 2025...
