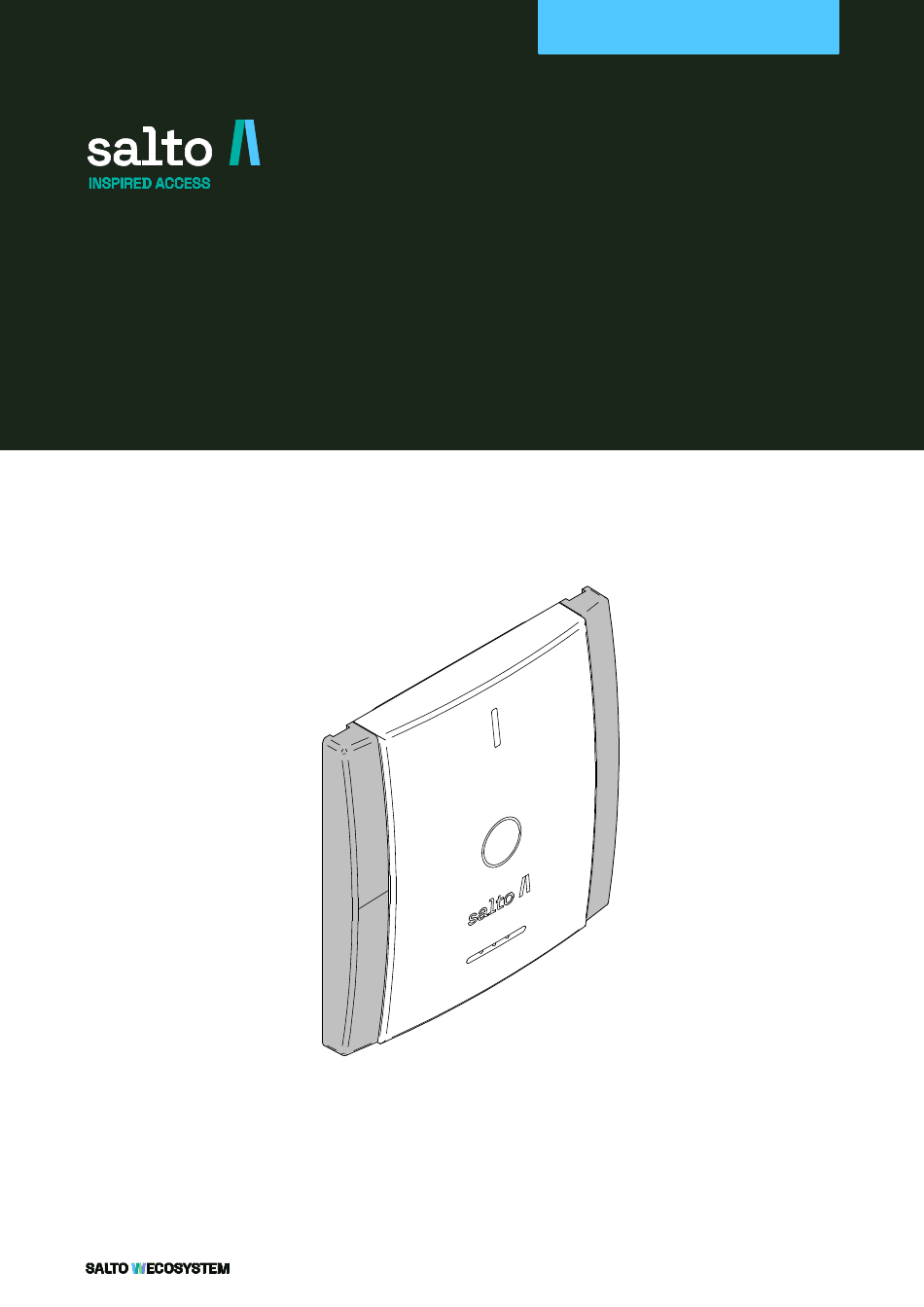

- Page 1 INSTALLATION GUIDE Modular XS Reader MODEL: ELECTRONIC INFO. WRM0M - WRM0J Copyright © 2025 Salto Systems, S.L.
- Page 2 INSTALLATION GUIDE | Modular XS Reader WRMx004x series 13,5 (1/2") (X4) PZ1 (X4) TORX 10 (X4) 110g PAGE 2/8 saltosystems.com...
- Page 3 INSTALLATION GUIDE | Modular XS Reader Installation Instalación Installation Installation Installatie Installation WRMBL1 (1/4") (2-3/8") Gang electrical standard box Módulo caja eléctrica estándard Standard schalterdose Plots d'encastrament standard Standaard elektrische inbouwdoos Standard apparatlada (2-3/8") (3-1/4") Fixing METAL Fijaciones NO METAL...
- Page 4 INSTALLATION GUIDE | Modular XS Reader Surface mounting installation with WRMBH1 base Instalación de sobreponer con la base WRMBH1 Aufputz Montage mit WRMBH1 Installation en Surface avec la base WRMBH1 Opbouw installatie met WRMBH1 Ytmontage av WRMBH1 WRMBH1 Fixing Fijaciones...
- Page 5 INSTALLATION GUIDE | Modular XS Reader Installation example CU42xx Ejemplo de instalación CU42xx Installationsbeispiel CU42xx Exemple d'installation CU42xx Installatievoorbeeld CU42xx Installationsexempel CU42xx Same pair Même paire Mismo par Gleiches Paar Hetzelfde paar Samma par Model: CU42E0 Power Input: 12V Input...
- Page 6 INSTALLATION GUIDE | Modular XS Reader Installation example CU41xY Ejemplo de instalación CU41xY Installationsbeispiel CU41xY Exemple d'installation CU41xY Installatievoorbeeld CU41xY Installationsexempel CU41xY Same pair Control Unit CU41xY Gleiche paar Mismo par Même paire Same pair Gleiche paar Mismo par Même paire Installation example CU41xY with RJ45 Ejemplo de instalación CU41xY con RJ45...
- Page 7 RFID frequency 13.56 Twisted pairs 400m SALTO recommends to use one cable per wall reader. Bluetooth Smart 2.445 2.483 Modular XS Reader only for use with SALTO control AWG18 frequency Note Units. Características eléctricas Tipo de cable y distancias max. Consumo...
- Page 8 INSTALLATION GUIDE | Modular XS Reader SIGNALLING Signal Light Time Buzzer Time (sec) (sec) Card Rejection High pitched 50/50 Privacy or emergency status Red 5x(50/50x3+off300) High pitched 5x(50/50x3 + off 300) Standard opening Green Low pitched Standard locking Low pitched...
