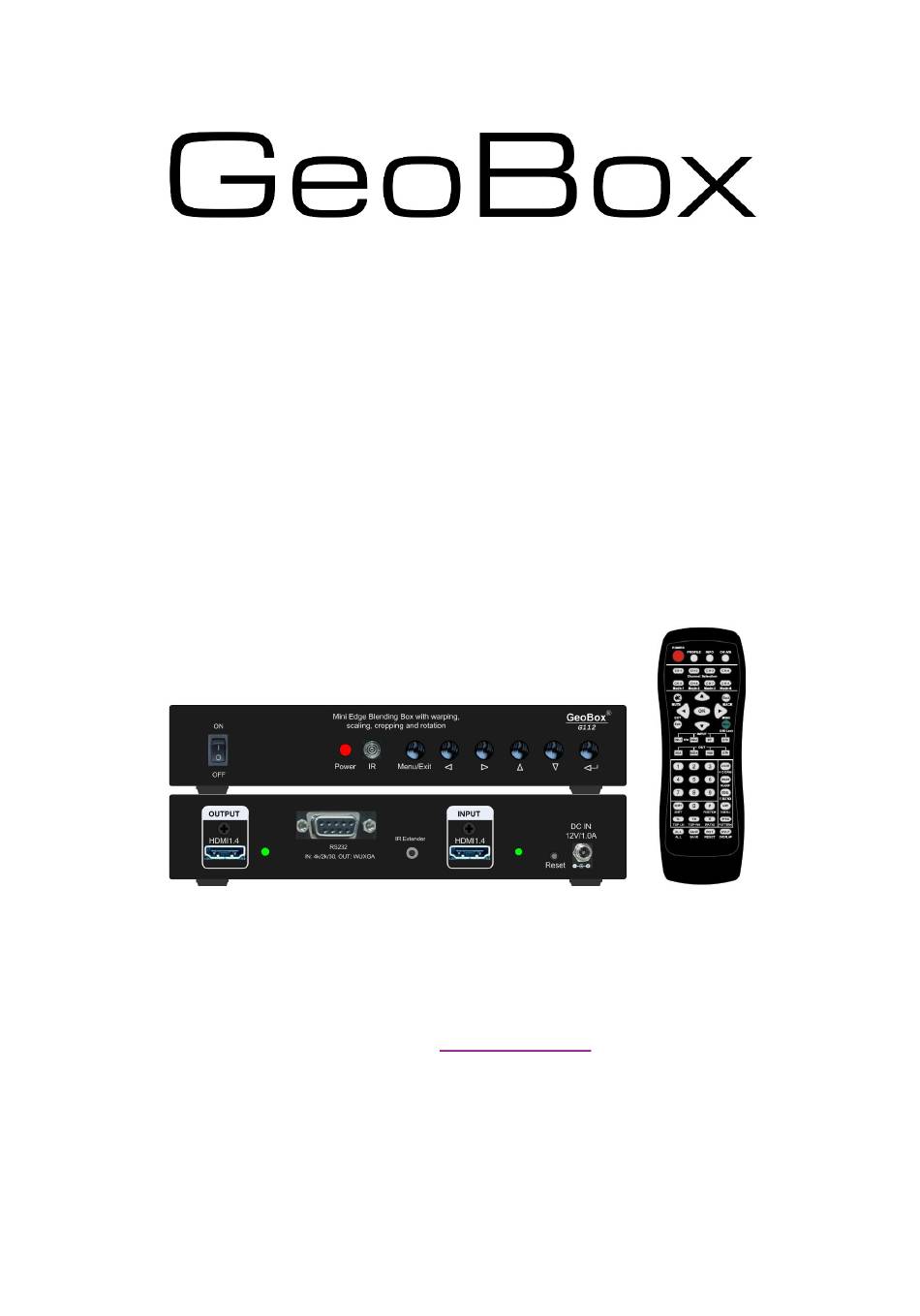

GeoBox G112 User Manual

Mini edge blending processor
Table of Contents

Advertisement

Quick Links

G112 User Guide
Document: G112-2
----------------------------------------------------------------------------------------------------------------------------- -----------
G112 User Guide
G112 Mini Edge Blending Processor User Guide
Input: up to HDMI 1.4, 3840*2160 @30Hz
4:4:4 full color sampling
Output: Up to WUXGA @60Hz, 2048*1080/60Hz
Warping up to 17x9 control points
Full functions in one box, simple,
Flat and curved Edge Blending
easy-of-use
with matrix SW function
Sales & Technical support
Website:
www.vigillink.com
E-mail: info@vigillink.com Version: V1.1
Tel: +949-701-4742
0
