GeoBox G-104 Operation Manual

Single channel universal/curved screen edge blender

Table of Contents

Download this manual

G-104 Operation Manual

(Single channel Universal/Curved Screen Edge Blender)

G-104D

G-104H

Introduction

G-104 is a professional single channel curved screen edge blender with patented warp technology and

edge blending function. It is designed for curved screen and projector portrait edge blending and

capable of image stacking, image flip, video wall, PIP (picture in picture), edge mask & active/passive

3D demultiplexer with input up to WQXGA & 3840x1080 @60Hz without compression. eWarp Pro PC

software tool can be applied for more sophisticated or irregular curve applications. It is also a universal

3D controller to convert Blue Ray FHD frame packed 3D for active 3D and convert active 3D 120Hz

signal for passive 3D display. Professional, simple, easy and user friendly interface are integrated in

G-104. No PC is required for most of the applications.

Table of Contents

Do you have a question about the G-104 and is the answer not in the manual?

Page 1 G-104H Introduction G-104 is a professional single channel curved screen edge blender with patented warp technology and edge blending function. It is designed for curved screen and projector portrait edge blending and capable of image stacking, image flip, video wall, PIP (picture in picture), edge mask & active/passive 3D demultiplexer with input up to WQXGA &...

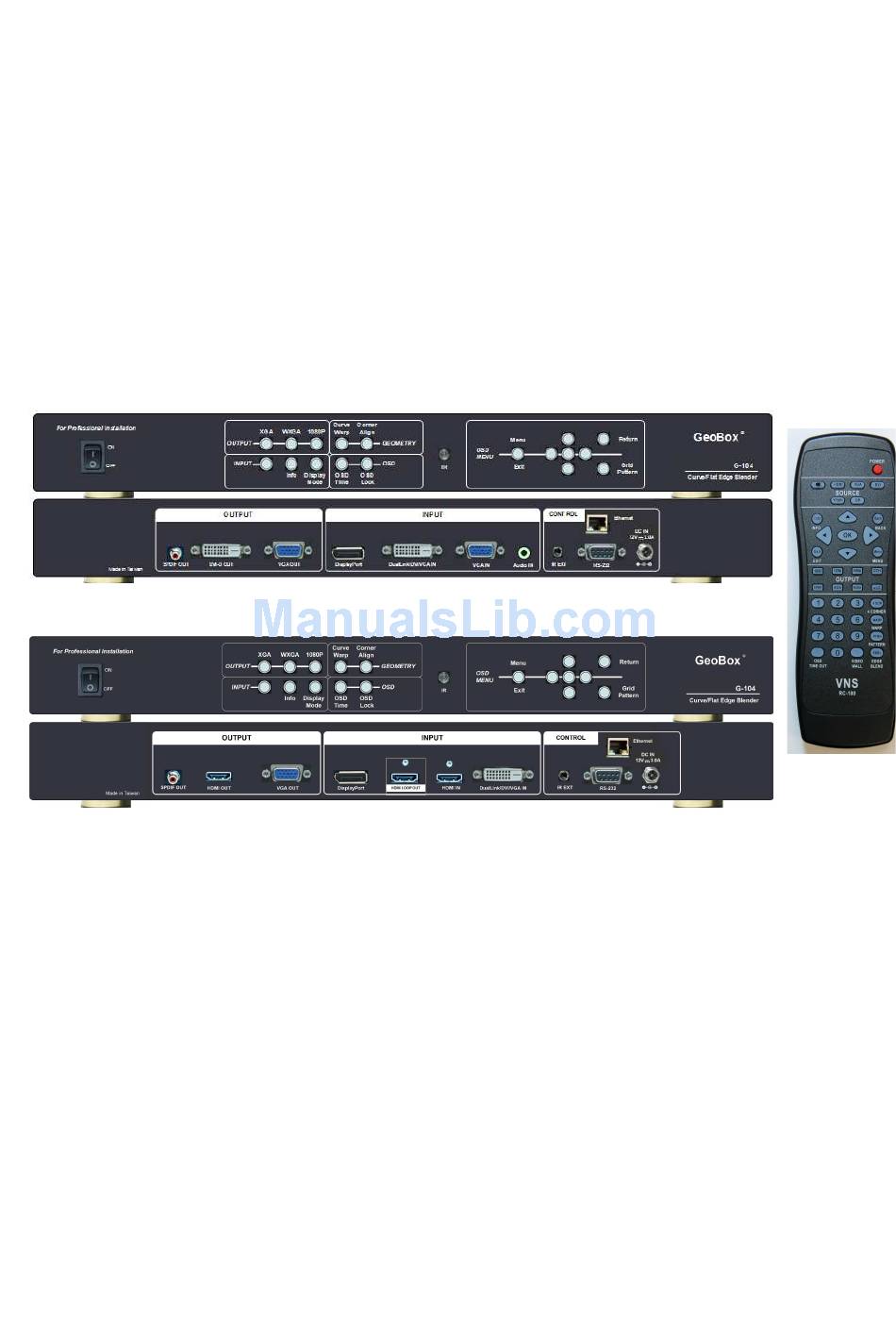

Page 2 Outlook and Function G-104D G-104H...
Page 3 3.14 Embedded eWarp function. Users can run optional eWarpPro software tool in PC to create warp map and download to G-104 for irregular curve, surface mapping and edge blending. Edge Blending 3.15 Input image can be edge-blended before geometry adjustment to make sure the blending area always compliant with warping area to get the best edge blending result.
