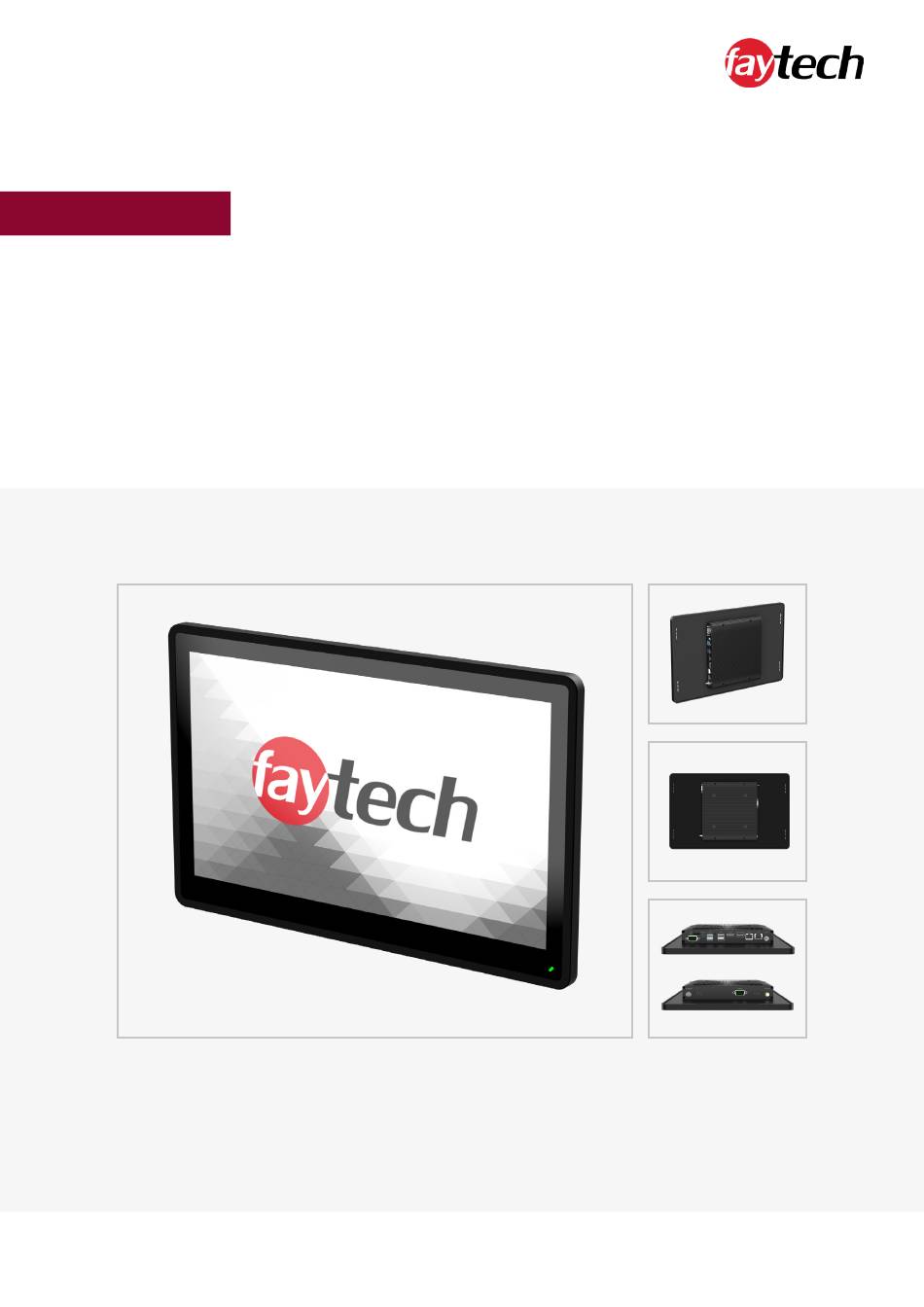

Page 1 Intel-based Modular Capacitive Touch PCs FAYTECH ® Elkhart Lake & Tiger Lake U Series Installation, safety and user manual Elkhart Lake Tiger Lake U x6413E x6211E J6412 i5-1145G7E i3-1115G4E i7-1185G7E Version 1.0 © 2024 | www.faytech.com | part of the Pyramid Group...
Page 2 6. OPERATING INSTRUCTIONS................19 6.1 Initial power-up and driver installation ....................19 6.2 BIOS settings ..............................19 6.3 Troubleshooting ............................20 6.4 FAQs ................................20 2/24 FAYTECH installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group ®...
Page 3 7. SERVICE AND SUPPORT ..................21 7.1 Service ................................21 7.2 Contact................................21 8. APPENDIX ......................22 8.1 CE and UKCA - Declaration of Conformity .................... 22 3/24 installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group...
Page 4 Although this touch display is a modular version consisting of a front kit and back kit, the solution is pre-assembled by faytech, and delivered as a complete solution. Please do not separate or open the unit as it voids the warrantly and might destroy the device. If you are interested in delivery of these components separately, please talk to one of our sales experts.
Page 5 If the note next to this symbol is not observed, the environment or Attention equipment may be damaged. Tip or pointer This symbol indicates information that contributes to better understanding. Note 5/24 installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group...
Page 6 If metal objects such as screws or tools are placed in the circuit boards. • If PC internal connection cables are pulled off or plugged in during operation. 6/24 FAYTECH installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group ®...
Page 7 If you notice a burning smell or the device is making noise, disconnect it from the power supply immediately. Cleaning Note To clean the device, switch it off and use a dry, soft cloth with light pressure. 7/24 installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group...
Page 8 Product. In all cases faytech has sole responsibility for determining the cause and nature of failure, and faytech's determination with regard thereto shall be final. If it is found that faytech's Product has been returned without cause and is still 8/24 FAYTECH installation, safety and user manual ©...
Page 9 Product returned at Customer's expense. In addition, a charge for testing and examination may, in faytech's sole discretion, be made on Products so returned. SELLER'S LIABILITY FOR DAMAGES SHALL NOT EXCEED THE PAYMENT, IF ANY, RECEIVED BY SELLER FOR THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED AS THE CASE MAY BE WHICH IS THE SUBJECT OF CLAIM OR DISPUTE.
Page 10 4. PRODUCT DESCRIPTION 4.1 Appropriate use The faytech Capacitive Touch PCs are used in many different application areas, such as but not limited to: industrial, medical and retail applications. Front of the Capacitive Touch PC (15.6" as example) Right side of the Capacitive Touch PC (15.6"...
Page 11 The power supply of the Touch PC is established via the socket (11). The DC-In input (screwable) is either 9-36V or 12V, depending on the individual product. 11/24 installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group...
Page 12 Moving or cleaning the device Attention Make sure that you only clean or move the device when the LED light is off. 12/24 FAYTECH installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group ®...
Page 13 Frequency band: 2.4GHz / Max. Transmission power: 2mW Brief instructions This quick guide (3) contains the most important information about the Touch PC. Unplugging Instructions 13/24 installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group...
Page 14 6. If you notice transport damage or discrepancies between the contents of the package and your order, please inform the faytech service team. 14/24 FAYTECH installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group ®...
Page 15 Use the U-profile brackets in combination with the VESA holes to integrate the unit into a cabinet or cut-out. VESA Holes * Not actual device U-Profile Mounts 15/24 installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group...
Page 16 Of course it is also possible to use your own mounting solutions. faytech is not responsible for the proper use of the mountings. 16/24 FAYTECH installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group ®...
Page 17 If the wrong voltage is used, it may destroy the unit. Fire or smoke CAUTION If the appliance catches fire or starts smoking, immediately unplug the appliance and then extinguish with powder or nitrogen. 17/24 installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group...
Page 18 5.5 Driver installations In order to fully utilize all functions of the faytech Touch PCs, it is recommended to download the required drivers from the faytech website in the download section (www.faytech.com/downloads/). Drivers available on our website for these product series: Elkhart Lake Mainboard Drivers (x6413E / x6211E / J6412) –...
Page 19 If you want to change the password, open a terminal. Type "sudo su", "enter". The password is still "user123". Then "passwd user" and enter the new password. 19/24 installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group...
Page 20 Does the touch functionality affect the image quality? No, the touch panel is transparent and non-reflective. So you will not notice the additional panel. 20/24 FAYTECH installation, safety and user manual © 2024 | www.faytech.com | part of the Pyramid Group ®...
Page 21 We do not accept postage due packages at our service centers. Anything shipped with postage due will be rejected. Within the first 30 days after the purchase of a new faytech product, we will refund the shipping costs for returned defective products. For the rest of the warranty period, we will only cover shipping costs for repaired or replaced items that we ship back to you (one way).
Page 22 8. APPENDIX 8.1 CE and UKCA - Declaration of Conformity Hereby faytech declares that the equipment is in compliance with the essential requirements and other relevant regulations of the directives 2014/30/EU, 2014/35/EU, 2011/65/EU, 2015/863 RoHS, UK SI 2016/1091 and UK SI 2016/1101.
