- Page 1 INSTRUCTION MANUAL Capacitive Touch PC Apollo Lake...
- Page 2 Copyright © 2018-2020 faytech AG English - 2...
-
Page 3: Table Of Contents
Table of contents Table of contents Foreword Notes of Documentation Disclaimer Copyright State of Delivery Explanation of the safety symbols Basic security measures Duty of care for the operator Requirements for the operating personnel General warning Warranty Product description Appropriate use Interfaces Status LEDs Scope of delivery... -
Page 4: Foreword
All components are delivered in specific hardware and software configurations depending on the application requirements. Changes to the hardware or software configuration, which go beyond the documented possibilities are not permitted and result in the exclusion of liability of faytech AG. English - 4... -
Page 5: Explanation Of The Safety Symbols
Foreword Explanation of the safety symbols The following safety symbols are used in these operating instructions. These symbols are primarily intended to draw the reader's attention to the text of the adjacent safety instructions. Acute danger of injury! If the safety instruction next to this symbol is not observed, there is an DANGER immediate danger to life and health of persons. -
Page 6: Basic Security Measures
Foreword Basic security measures Before the Touch PC may be switched off, the running software must be closed as usual. Otherwise data on the hard disk may be lost. Please read the section Switching the Touch PC on and off. Switch off all system components, then disconnect the fieldbus Before opening the Touch PC housing and whenever the Touch PC is not Attention... -
Page 7: Duty Of Care For The Operator
Foreword Duty of care for the operator The operator must ensure that: • The Touch PC is only used for its intended purpose (see chapter Product Description). • The Touch PC is only operated in a faultless, fully functional condition. •... -
Page 8: Warranty
24 months as measured from the date of original shipment. faytech's obligation under the Warranty contained herein is limited to the repair or replacement... - Page 9 If your device does have a defect within the warranty period, please contact faytech directly. The warranty period is 24 months from the date of purchase under the following conditions: •...
-
Page 10: Product Description

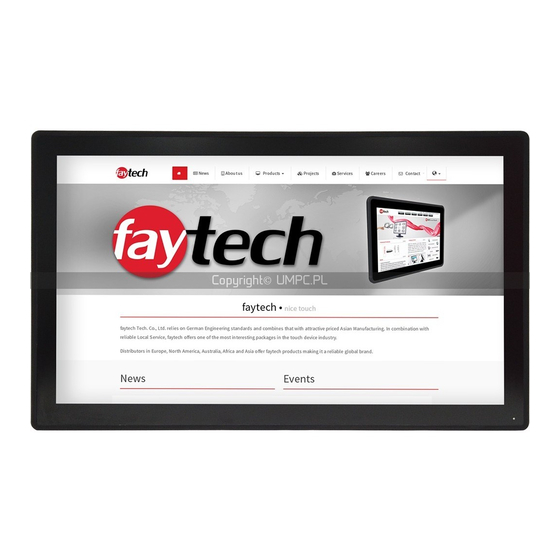

Product description Product description Appropriate use The faytech Capacitive Touch PC series are used in many different application areas (in industrial or retail applications). Front of the 15" Capacitive Touch PC The heart of the capacitive touch PC series is the Apollo Lake industrial mainboard, driven by... -
Page 11: Interfaces
Product description Interfaces Interfaces of the Capacitive Touch PC Right side of the Capacitive Touch PC Power supply The power supply of the Touch PC is established via the socket (1). The DC-In input (screwable) is 12V. Network connection The RJ-45 socket (2, 3) enables the Touch PC to be connected to a 10/100/1000 BASE-T network. - Page 12 4.A/+ 4.GPIO86 8.GPIO87 Left side of the Capacitive Touch PC On / Off switch With the button (10) the touch PC can be switched on and off. RS232 / 485, COM2 The touch PC has a serial interface COM2 (11) of type RS232 / RS485, adjustable in the BIOS.
-
Page 13: Status Leds
Product description Status LEDs No LED There is no power supply. Green LED The touch PC is switched on. Red LED The Touch PC is connected to a power source, but it is currently switched off. Moving or cleaning the device Make sure that you only clean or move the device when the LED light is off. -
Page 14: Installation Instructions
5. Check the package contents for visible transport damage. 6. If you notice transport damage or discrepancies between the contents of the package and your order, please inform the faytech service. English - 14... -
Page 15: Mounting Options
Installation instructions Mounting options There are several ways to mount the device: 1. use the VESA-75 or VESA-100 holes on the back to mount the unit on a wall or stand. VESA 75/100 Wall Mount VESA Holes VESA 75/100 Metal Stand 2. - Page 16 Holes Clamp Supports Holes Own mounting solution Of course it is also possible to use your own mounting solutions. faytech is Note not responsible for the proper use of the mountings. English - 16...
-
Page 17: Connecting The Device
Installation instructions Connecting the device The connectors are located at the rear of the Touch PC and are documented in the chapter Product Description. To start the device, connect it to a power source with the supplied AC adapter or use a corresponding 12V DC power source. -
Page 18: Operating Instructions
To get the most out of your device, you must download the correct drivers for your device. You can find these drivers on the website under Downloads: www.faytech.com/downloads. This series uses the Apollo Lake mainboard and therefore requires the appropriate drivers. -
Page 19: Troubleshooting
4. If none of the above points leads to success, please contact our direct Manufacturer service, under the contact details given below. Touch function is not accurate www.faytech.com 1. Please download the latest touch drivers from our website and perform a recalibration to recalibrate the touch screen. -
Page 20: Service And Support
Anything shipped with postage due will be rejected. Within the first 30 days after the purchase of a new faytech product, we will refund the shipping costs for returned defective products. For the rest of the warranty period, we will only cover shipping costs for repaired or replaced items that we ship back to you (one way). -
Page 21: Appendix
Appendix CE Declaration of Conformity Hereby faytech AG declares that the equipment is in compliance with the essential requirements and other relevant regulations of the directives 2014/53/EU and 2011/65/EU. The long version of the CE Declaration of Conformity can be found in English at: www.faytech.com/ce...
