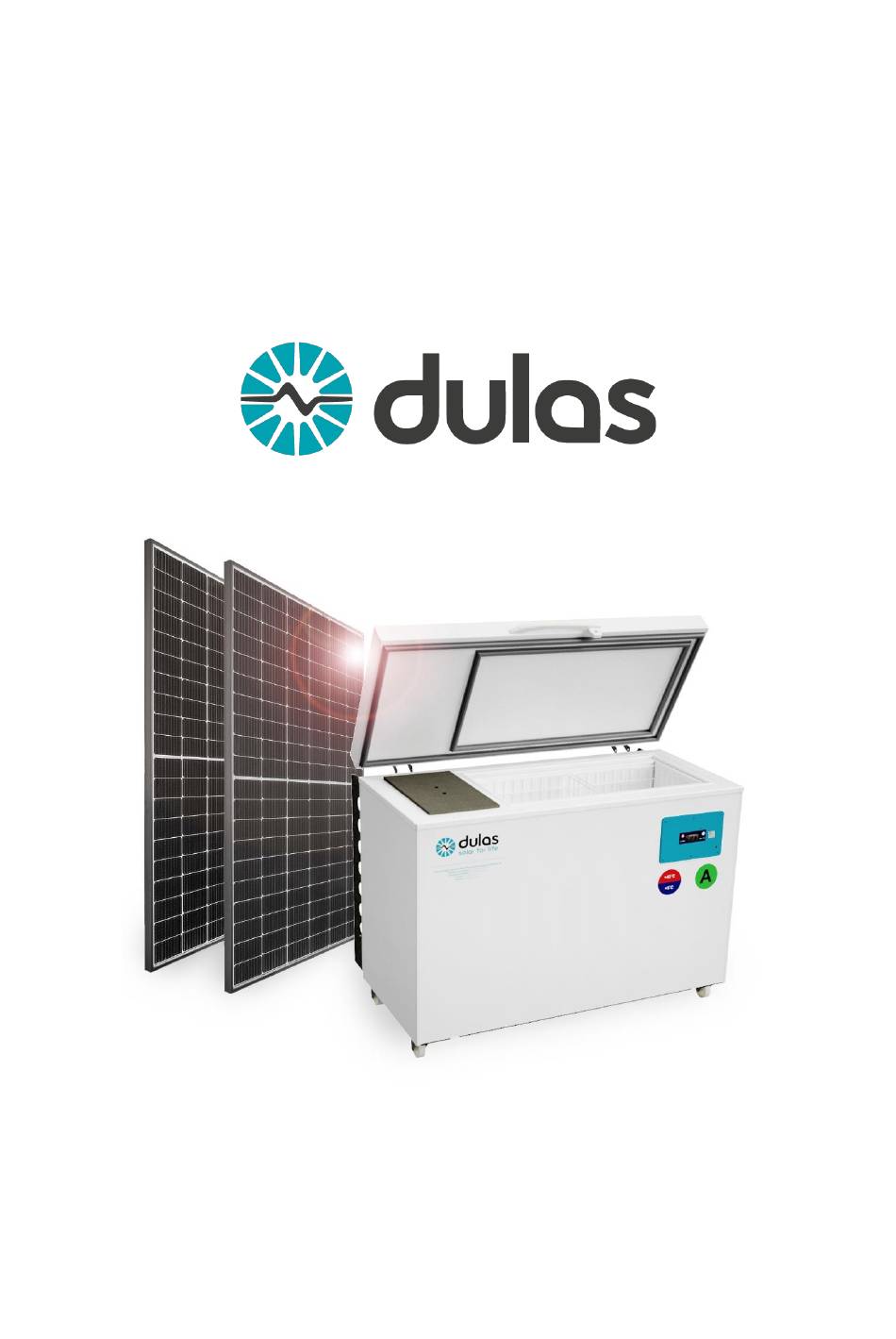

- Page 1 VC200SDD Installation Technicians’ Manual DULAS Solar Direct Drive VC60SDD Refrigerator and Freezer User’s Manual (WHO PQS E003/084) Manual: MU-VC60SDD-ENG-Jb...
-
Page 2: Table Of Contents
User’s Manual ⸱ VC60SDD Refrigerator and Freezer Table of Contents COMPONENTS CHECKLIST ..................3 SAFETY INSTRUCTIONS ................... 4 YOUR DULAS SOLAR DIRECT DRIVE REFRIGERATOR ........6 REFRIGERATOR COMPONENTS ................7 MATERIAL SAFETY INFORMATION................8 END OF LIFE & PRODUCT RECYCLING ..............9 REFRIGERATOR TRANSPORTATION ..............11... -
Page 3: Components Checklist
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 1. Components Checklist DESCRIPTION QUANTITY REFRIGERATOR VC60SDD Refrigerator Cabinet Refrigerator Baskets Refrigerator Key Berlinger Fridge-tag 2 E (Refer to manufacturer’s documentation) SOLAR ARRAY 315 Wp minimum Solar Modules 20 m Pre-terminated Solar Cable (+ve & -ve) 1 pair Solar Connector –... -
Page 4: Safety Instructions
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 2. Safety Instructions Read the Manual - please read all instructions completely before installing. Installation and system servicing should only be carried out by a qualified and competent engineer. Work performed by persons with insufficient technical knowledge may adversely affect the performance of the unit or cause physical injury or damage to the equipment. - Page 5 User’s Manual ⸱ VC60SDD Refrigerator and Freezer DC power only - this refrigerator is designed for operation with the solar power system supplied. Do not connect the refrigerator to other power supplies. Dangerous substances - this refrigerator contains substances that are not biodegradable and can cause harm, please ensure that all components of the refrigerator are disposed of correctly, see Section 6 for more information.
-
Page 6: Your Dulas Solar Direct Drive Refrigerator
7 days to fully charge the cold store and be ready for vaccine storage. In the VC60SDD the freezer compartment is secondary to the vaccine compartment. It has its own separate refrigeration circuit and we prioritise the operation of the vaccine compartment. The freezer only runs when there is enough solar energy to power first the fridge compressor and then the freezer. -
Page 7: Refrigerator Components
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 4. Refrigerator Components Page 7 of 23... -
Page 8: Material Safety Information
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 5. Material Safety Information THE REFRIGERATOR The Dulas VC60SDD conforms to the European Directive 2002/95/EC on hazardous substances and does not contain the following elements: lead, cadmium, mercury, hexavalent chrome, PBB or PBDE. -
Page 9: End Of Life & Product Recycling
• The walls of the refrigerator contain an organic phase change material that can be harmful and must be disposed of safely. Please contact Dulas for advice. • Worn out devices must be professionally disposed of in accordance with local regulations and legislation. - Page 10 Disposal of Phase Change Material (PCM) The PCM used in the Dulas refrigerator has a very long life and does not degrade through use. At the end of the refrigerator’s useful life the PCM should be either recycled or disposed of in accordance with applicable regional, national and local laws and regulations.
-
Page 11: Refrigerator Transportation
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 7. Refrigerator Transportation To reduce the risk of bodily injury, or damage to the refrigerator, the following precautions must be observed: • Properly secure the refrigerator when in transit to prevent it moving or falling within the vehicle. -
Page 12: Refrigerator Installation
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 8. Refrigerator Installation DO NOT position the refrigerator in direct sunlight or next to any heat sources. Make sure the refrigerator is positioned to provide good ventilation and ease of access for maintenance. Ventilation is particularly important for the condensers and compressors. -
Page 13: Ice3 Temperature Monitoring Device
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 9. ICE3 Temperature Monitoring Device This refrigerator is fitted with a Beyond Wireless ICE3 temperature monitoring device. The ICE3 is prequalified as a ‘Remote Temperature Monitoring Device’ (RTMD) in the World Health Organisation’s Performance Quality Safety catalogue, WHO PQS ref E006/036. - Page 14 Installation & Technician’s Manual ⸱ VC60SDD Refrigerator & Freezer COMMISSIONING The ICE3 is not active during shipping. Once the refrigerator has been installed, the ICE3 device must be activated by pressing and holding both buttons on the front panel for 10 seconds. The display will turn on and the device will begin recording.
- Page 15 User’s Manual ⸱ VC60SDD Refrigerator and Freezer ALARMS Alarm Thresholds The upper and lower alarm settings are factory set into the device as follows: ‘Low Alarm’ setting: Exposure to a single temperature event of -0.5 °C or below for 60 minutes.
- Page 16 (WHO PQS/E006/036). If your refrigerator does not have RTMS enabled and you would like to learn more about this option, please get in touch with Dulas for more information and pricing. MAINTENANCE Wipe with a dry cloth. Avoid contact with water.
-
Page 17: Refrigerator Loading
CONSUMPTION, ONLY OPEN THE LID WHEN STRICTLY NECESSARY. The VC60SDD refrigerator has two refrigerated compartments. The large one is specifically for the storage of vaccines and the smaller one with the fan is the freezer, see Section 4. The vaccine... -
Page 18: Freezer Operation
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 11. Freezer Operation The VC60SDD freezer is a highly efficient freezer designed specifically for freezing water packs for vaccine distribution. It has a fan to maximise the cooling power and is able to rapidly freeze up to 2.4 kg of water each day. -
Page 19: Green Compressor Status Led Light
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 12. Green Compressor Status LED Light The green LED light on the front of the refrigerator illuminates to indicate that the refrigerator compressor is operating. The refrigerator compressor will run if the refrigerator temperature is above about 4 ºC and there is sufficient solar power. -
Page 20: User Training
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 13. User Training The end user of the VC60SDD should be instructed in the simple processes outlined below and also those in Section 14. It should be stressed that these tasks are essential to ensure correct and reliable operation of the refrigerator. -
Page 21: Maintenance Tasks
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 14. Maintenance Tasks Every morning and afternoon: • Check the vaccine compartment temperature (the correct temperature is +2 °C to +8 °C). • Fill in the daily record sheet. On the first day of every week: •... -
Page 22: Vc60Sdd System Layout
User’s Manual ⸱ VC60SDD Refrigerator and Freezer 15. VC60SDD System Layout Page 22 of 23... - Page 23 User’s Manual ⸱ VC60SDD Refrigerator and Freezer ny other parts required can be obtained by contacting Dulas using the details at the end of this manual. About Dulas For over 40 years, Dulas has been a pioneer in renewable energy.
