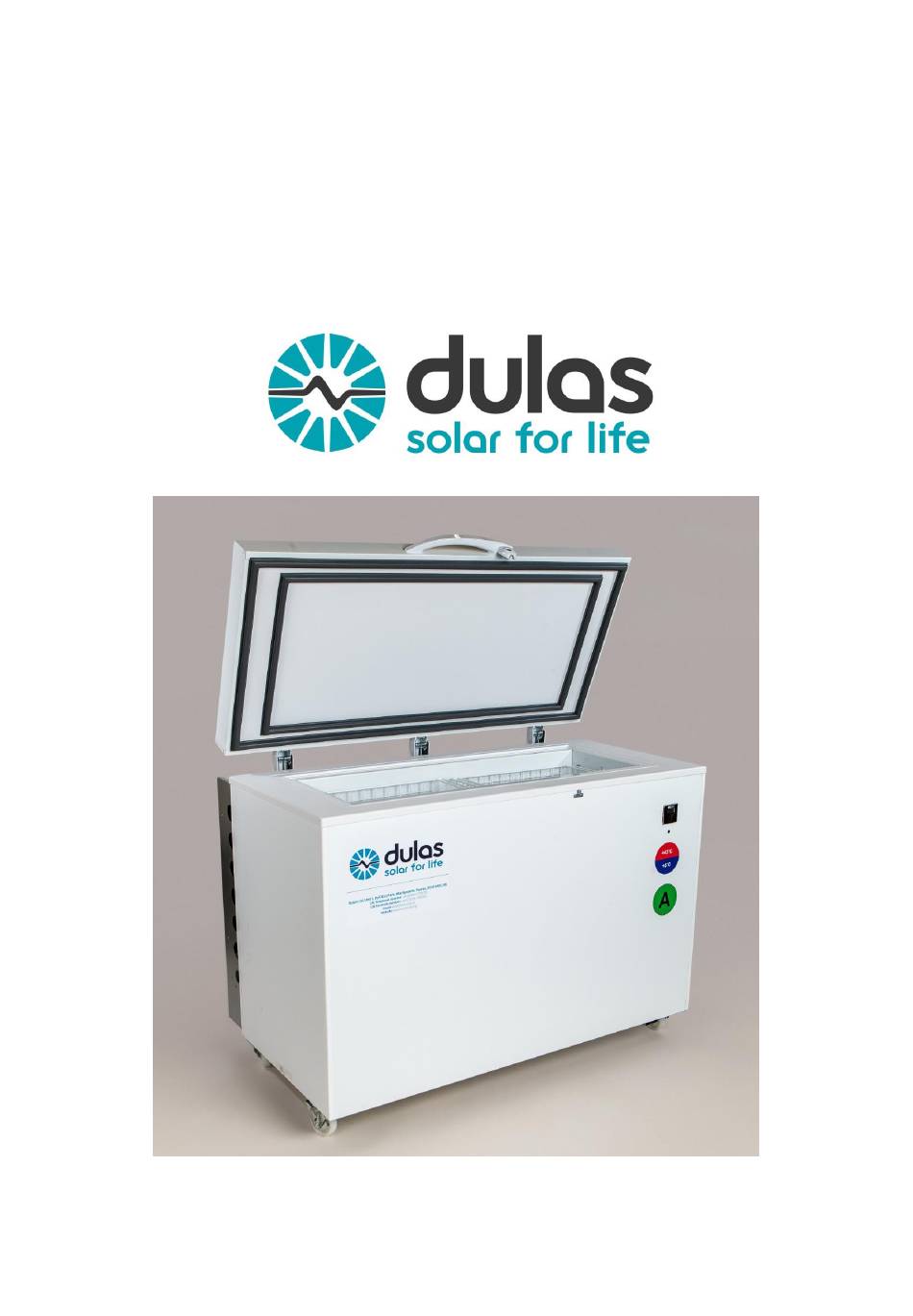

- Page 1 DULAS VC225ILR Mains Powered Vaccine Refrigerator User Manual Ref: MU-VC225ILR-ENG-F...
-
Page 2: Table Of Contents
Table of Contents 1. COMPONENTS CHECKLIST ..................3 2. SAFETY INSTRUCTIONS ................... 4 3. YOUR DULAS MAINS POWERED REFRIGERATOR..........6 4. REFRIGERATOR COMPONENTS ................7 5. MATERIAL SAFETY INFORMATION ................8 6. END OF LIFE & PRODUCT RECYCLING ..............9 7. -
Page 3: Components Checklist
Dulas VC225ILR User Manual 1. Components Checklist DESCRIPTION QUANTITY REFRIGERATOR VC225ILR Refrigerator Cabinet Refrigerator Baskets Refrigerator Key Other Power Supply PS-ILR-001 Screws (5x40mm) – for wall mount Wall plugs (Brown) – for wall mount Screws Wall plugs (Red) Cable ties... -
Page 4: Safety Instructions
Dulas VC225ILR User Manual 2. Safety Instructions Read the Manual - please read all instructions completely before installing. Installation and system servicing should only be carried out by a qualified and competent engineer. Work performed by persons with insufficient technical knowledge may adversely affect the performance of the unit or cause physical injury or damage to the equipment. - Page 5 Dulas VC225ILR User Manual Dangerous substances - this refrigerator contains substances that are not biodegradable and can cause harm, please ensure that all components of the refrigerator are disposed of correctly, see page 8 for more information. Do not damage the internal side panels of the compartment.
-
Page 6: Your Dulas Mains Powered Refrigerator
The temperature of the cold store in the Dulas ILR is naturally between +4 to +5°C which is the perfect temperature required for safe vaccine storage and means that the product is 100% Freeze Free. -
Page 7: Refrigerator Components
Dulas VC225ILR User Manual 4. Refrigerator Components Page 7 of 15... -
Page 8: Material Safety Information
Dulas VC225ILR User Manual 5. Material Safety Information THE REFRIGERATOR The Dulas VC2225ILR conforms to the European directive 2002/95/EC on hazardous substances and does not contain the following elements: lead, cadmium, mercury, hexavalent chrome, PBB or PBDE. The absence of ozone destroying materials is in accordance with EC 1005/2009 (CFC-free) It is compliant with European Standards (CE) EN60335-1:2010 &... -
Page 9: End Of Life & Product Recycling
Disposal of Phase Change Material (PCM) The PCM used in the Dulas refrigerator has a very long life and does not degrade through use. At the end of the refrigerators useful life the PCM should be either recycled or disposed of in accordance with applicable regional, national and local laws and regulations. - Page 10 Dulas VC225ILR User Manual REFRIGERATOR POWER SUPPLY Do not dispose of this equipment with normal domestic waste! To comply with the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment and its implementation as national law, electrical equipment that has reached the end of its life must be collected separately and returned to an approved recycling facility.
-
Page 11: Refrigerator Installation
Check the DC isolator at the back of the cabinet is in the ‘0 position. Connect the refrigerator to the Dulas PS-ILR- 001 power supply. Check that there is sufficient slack in the cable to allow access to the back of the refrigerator. -
Page 12: Refrigerator Loading
IN ORDER TO KEEP INTERNAL TEMPERATURES STABLE AND MINIMISE ENERGY CONSUMPTION, ONLY OPEN THE LID WHEN STRICTLY NECESSARY. The VC225ILR refrigerator has a single compartment specifically for the storage of vaccines, see Section 4. This compartment is designed to maintain a stable temperature between +2°C and +8°C across an ambient temperature range from +5°C to +43°C. -
Page 13: Status Light
Dulas VC225ILR User Manual 9. Status Light The green LED light on the front of the refrigerator illuminates to indicate that the compressor is operating. The compressor will run if the refrigerator temperature is above about 4 degrees and there is sufficient solar power. -
Page 14: User Training
Dulas VC225ILR User Manual 10. User Training The end user of the VC225ILR refrigerator should be instructed in the simple processes outlined below and also those in “Section 11 Maintenance tasks”. It should be stressed that these tasks are essential to ensure correct and reliable operation of the refrigerator. -
Page 15: Maintenance Tasks
Dulas VC225ILR User Manual 11. Maintenance Tasks Every morning and afternoon: Check the temperature Fill in the daily record sheet On the first day of every month: Clean the refrigerator, condensers and compressors Every 6 months: ...
