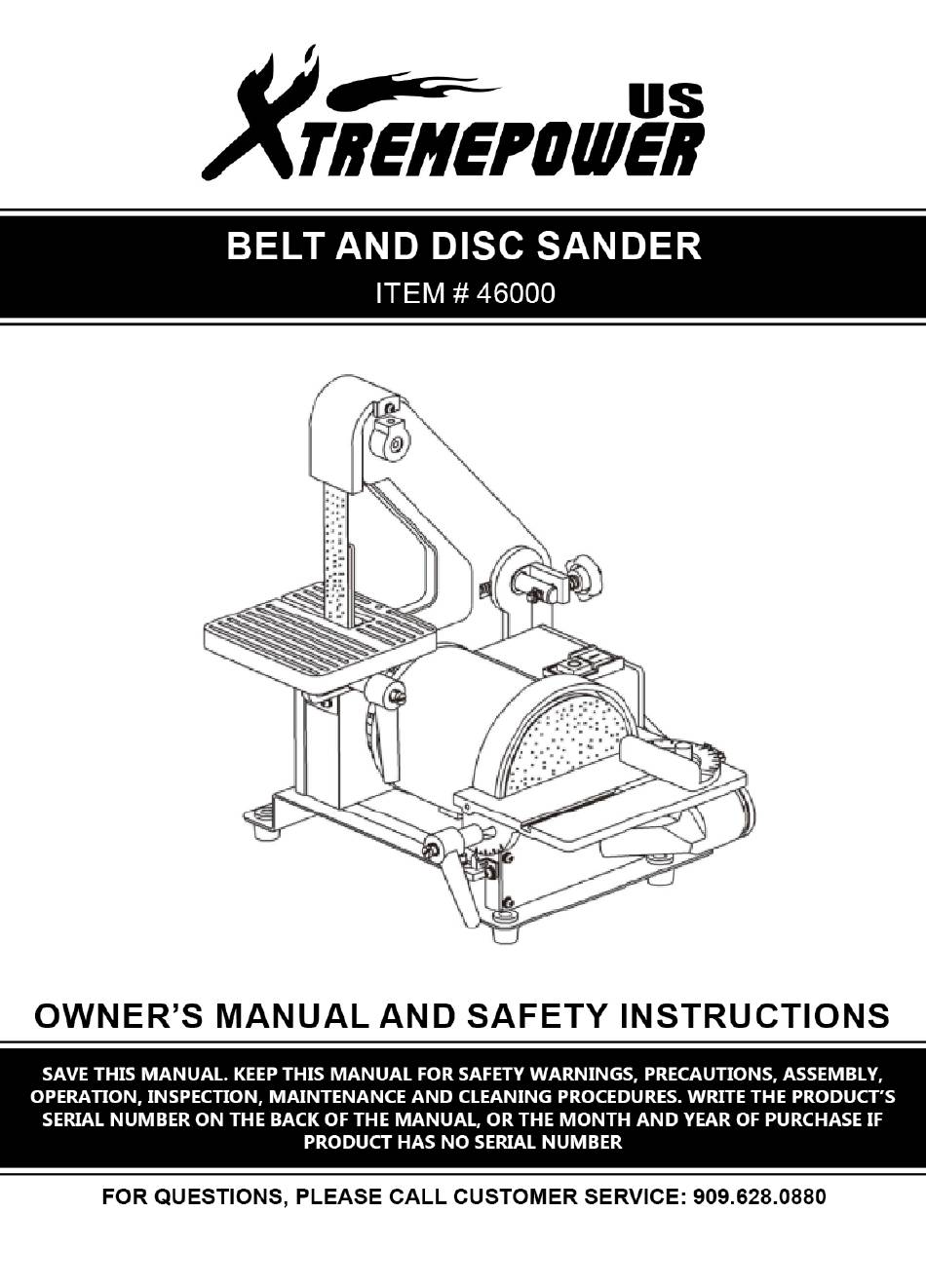

XtremepowerUS 46000 Owner's Manual And Safety Instructions

Belt disc sander
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 46000 and is the answer not in the manual?

Questions and answers

Related Manuals for XtremepowerUS 46000

Summary of Contents for XtremepowerUS 46000

  • Page 2 WARNING! When using electric tools, machines or equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. 1. KEEP GUARDS IN PLACE and in working order. 2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.
  • Page 3 18. NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally contacted. 19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function-check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation.
  • Page 4 12. DO NOT sand pieces of material that are too small to be safety supported. 13. KEEP fingers away from where the belt goes into the dust trap. 14. WHEN sanding a large workpiece, provide additional support at table height. 15.

  • Page 5: Assembly And Adjustments

    ASSEMBLY AND ADJUSTMENTS WARNING! For your own safety, never connect plug to power source outlet until all assembly and adjustment steps are completed, and you have read and understood the safety and operating instructions. WARNING! When replacing abrasive disc or abrasive belt, or any parts on the sander, turn switch OFF and remove the plug from the power source.
  • Page 6 INSTALLING / REPLACING THE 1” X 30” BELT (FIG. A) 1. Remove the table aligning screw (1) from table. 2. Remove the belt guard (2) and the belt housing (3) by removing the belt housing knob (4). 3. Release the middle wheel (5) tension by SLIGHTLY moving holding tension...
  • Page 7 INSTALLING / REPLACING 5” ABRASIVE DISC (FIG. C) 1. Remove the scales and the table assembly (1) from the sander by loosening the knob (2) from both sides of the housing. 2. Tilt the table assembly (1) downward to remove it from the sanding disc plate (3). 3.
  • Page 8 MITER GAUGE (FIG. F) A miter gauge (1) is supplied with your sander and is used with the disc table. The miter gauge body can be turned 0 0 to 45 0 right or left for angle or miter sanding. Loosen knob (2), rotate miter gauge body to the desired angle and tight lock knob (2) Fig.

  • Page 9: Adjustment Instructions

    ADJUSTMENT INSTRUCTIONS WARNING! Always turn the switch OFF and unplug the power cord from the outlet before adjusting your sander. TRACKING THE BELT (FIG. H) 1. With the belt guard removed and the sander plugged in, flip the switch ON and the OFF. 2.
  • Page 10 SQUARING THE BELT TABLE (FIG. J) 1. To tilt the table (1) loosen the handle (2). 2. Use a combination square to set the table at 90 0 . 3. Adjust fro the 1/16” clearance between the belt and the table edge. 4.

  • Page 11: Sanding Operations

    SANDING OPERATIONS CAUTION: To avoid personal injury and/or damage to the workpiece, become familiar with the rotation of the belt and disc sanding surfaces. The belt sander rotates clockwise, or downward toward the table. The disc sander also rotates clockwise, downward toward the table on the right side of the disc at all times. Using the left side of the disc will cause the workpiece to fly up or kickback and could result in injury.
  • Page 12 Straight sanding (Fig. O) Use to sand wood, remove metal burrs, polish plastics and glass (1) 2. Keep the backstop (2) for straight sanding or grinding operations. Contour sanding (Fig. P) 1. Remove the backstop to make the abrasive belt flexible for contour sanding operations (1). 2.

  • Page 13: Specifications

    WARNING! For your safety, turn switch OFF, and remove the power cord from the electrical outlet before adjusting or performing maintenance on your sander. WARNING! To avoid electric shock or fire, all repairs to the electrical components should be done by a qualified service technician.
  • Page 14 1"X 5" BELT/DISC SANDER PARTS ILLUSTRATION...
