DMTech S9000EXT Instruction Manual

1. Introduction
S9000EXT is applicable for sound and light indication of events
recorded in fire alarm systems. S9000EXT complies with EN54-3.
The audible alarm is connected to a switchboard.
2. TECHNICAL DATA
- Power
- Current in alarm state
- Sound level, type "Slow whoop" at 1m.
- Frequency, "Slow whoop" model
- Light Signaling
- Connect
- Degree of protection
- Operating temperature range
- Resistance to relative humidity
- Sizes:
- Weight:
3. INSTALLING THE SIRENS
-
Select the place (according to the project) for mounting the
- Remove the screw from the bottom of the metal box to dismantle the front panel;
- Install the metal box with suitable screws;

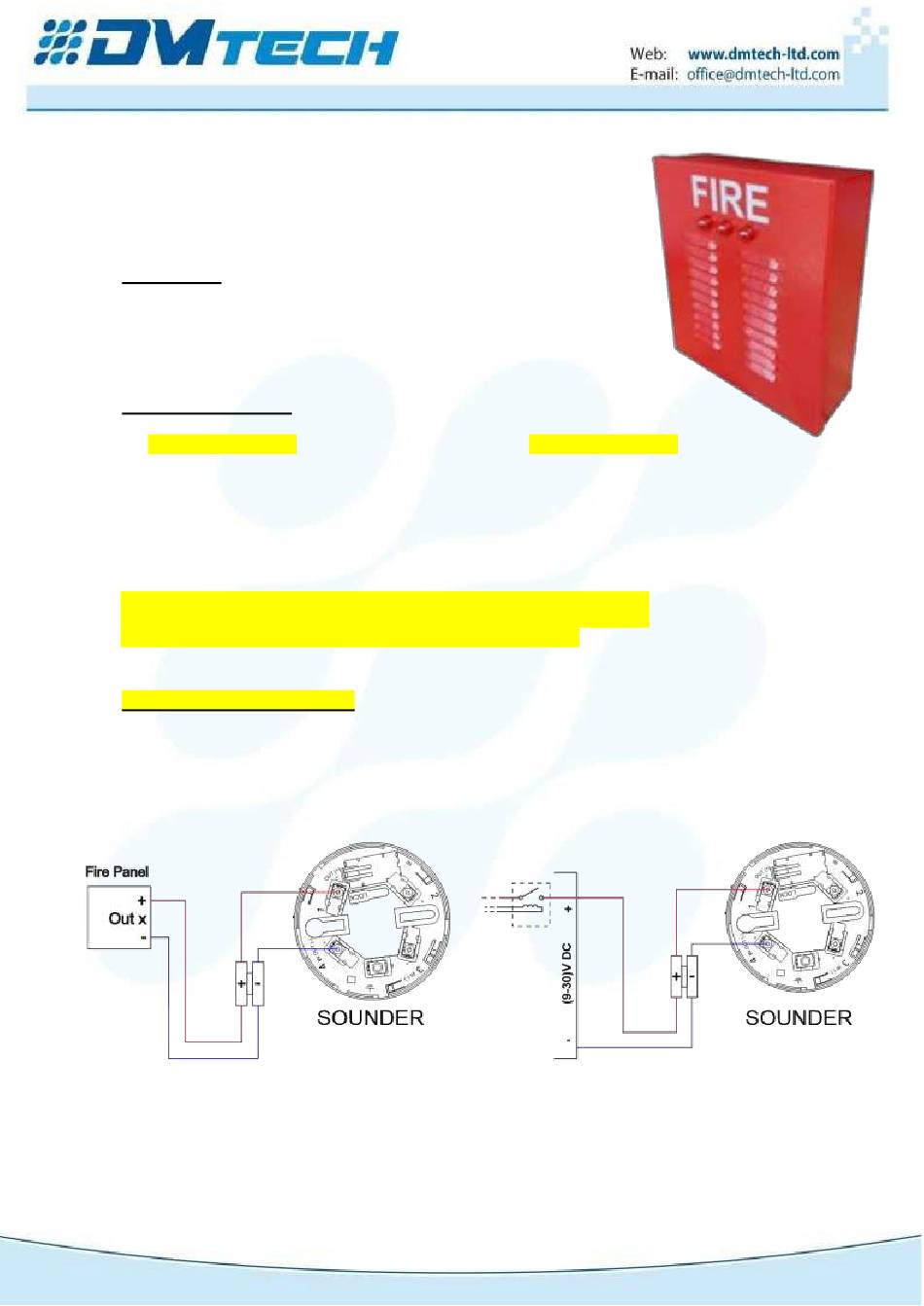

- Connect the electrical cables according to the attached diagram (Fig. 1);
Instruction Manual
CONVENTIONAL
OUTDOOR CHEESES
S9000EXT
Fig. 1
(9-30)V DC
Max. 65 mA/24V DC
(85-90) dB/24V DC
0.5 – 1.2 kHz
Red;
two-wire line;
IP 33C Type B
-15°C to 70°C
(93±3)% at 40°C
143x185x48
mm.
0.500g.
sirens;
P.. 1 of 3
