Kikusui PMP Series Operation Manual

Kikusui PMP Series Operation Manual

Multiple-output regulated dc power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

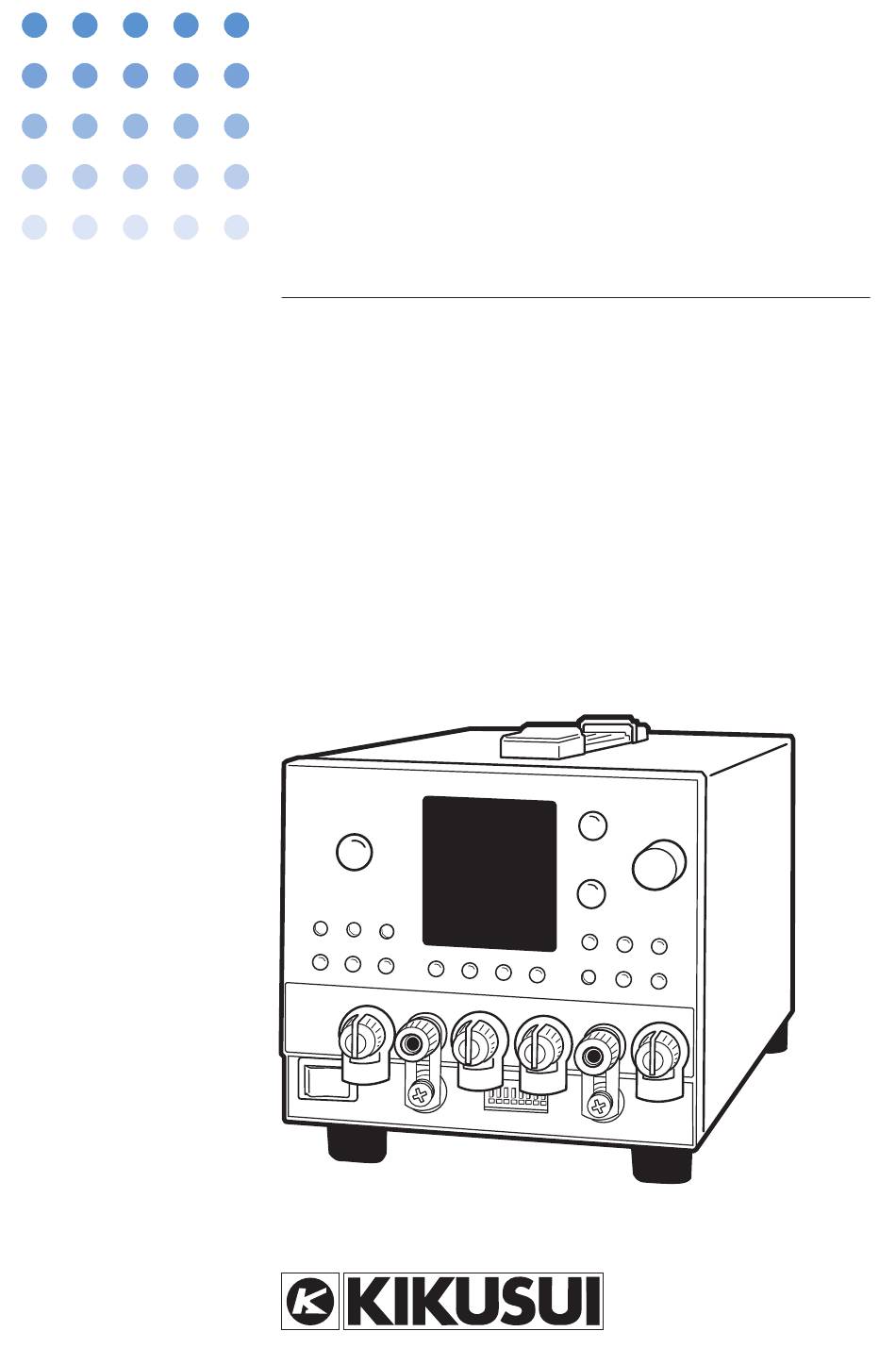

OPERATION MANUAL
Multiple-output Regulated DC
Power Supply PMP Series
3-Output Models
PMP18-3TR
PMP25-2TR
4-Output Model
PMP16-1QU
Part No. Z1-003-672, IA003982
Apr. 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Kikusui PMP Series

Summary of Contents for Kikusui PMP Series

  • Page 1 Part No. Z1-003-672, IA003982 Apr. 2008 OPERATION MANUAL Multiple-output Regulated DC Power Supply PMP Series 3-Output Models PMP18-3TR PMP25-2TR 4-Output Model PMP16-1QU...
  • Page 2 “Kikusui Part No.” given on the cover. This manual has been prepared with the utmost care; however, if you have any questions, or note any errors or omissions, please contact Kikusui dis- tributor/agent. Reproduction and reprinting of this operation manual, in whole or in part, without written permission is prohibited.
  • Page 3 Power Requirements of this Product Power requirements of this product have been changed and relevant sections of the Operation Manual should be revised accordingly. (Revision should be ✓ applied to items indicated by a check mark Input voltage The input voltage of this product is Vac, and the voltage range is Vac.
  • Page 4 Black (LIVE) Brown (LIVE) Green/Yellow (GND) Green or Green/Yellow (GND) Plug for USA Plug for China Plug for Europe NEMA5-15 CEE7/7 GB1002 Provided by Kikusui distributor/agent Kikusui agents can provide you with suitable power cord. For further information, contact Kikusui distributor/agent.

  • Page 5: Safety Symbols

    Safety Symbols For the safe use and safe maintenance of this product, the following symbols are used throughout this manual and on the product. Note the meaning of each of the symbols to ensure safe use of the prod- uct. (Not all symbols may be used.) Indicates that a high voltage (over 1 000 V) is used here.

  • Page 6: Safety Precautions

    Safety Precautions The following safety precautions must be observed to avoid fire hazards, electric shock, accidents, and other failures. Keep them in mind and make sure to observe them. Using the product in a manner that is not specified in this manual may impair the protection functions provided by the product.
  • Page 7 • Use cables or wires with sufficiently large current capacity for output wires and load cables. • Do not disassemble or modify the product. If you need to modify the product, contact your Kikusui distributor/ agent. Maintenance • To prevent the possibility of electric shock, make sure...

  • Page 8: How To Read This Manual

    Thank you for purchasing the PMP Series regulated DC power supply. This manual is intended for first-time users of the PMP Series (hereafter abbreviated as: the PMP). It gives an overview of the PMP and describes various settings, operation, maintenance, safety precautions, etc.
  • Page 9 Structure of this manual This Operation Manual consists of the following chapters. The following outlines each chapter. Chapter 1 General Description This chapter gives an overview and introduces the features of the PMP. Chapter 2 Installation and Preparation This chapter explains how to prepare the product for use, from unpacking to installation.

  • Page 10: Notations Used In This Manual

    Notations used in this manual • “PMP” refers to the Multiple-output Regulated DC Power Supply PMP Series. • The following marks are used with the corresponding explanations in this manual. WARNING Indicates an imminently hazardous situation which, if ignored, could result in death or serious injury.

  • Page 11: Table Of Contents

    Contents Contents Safety Symbols - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -iii Safety Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - iv How to Read This Manual - - - - - - - - - - - - - - - - - - - - - - - - - - - vi Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ix Function index - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - xiii...

  • Page 12: Contents

    Contents 3.5.2 Overvoltage Protection (OVP) Function - - - - - - - - 3-9 OUTPUT CH Number - - - - - - - - - - - - - - - - - - - - - - - - 3-11 Chapter 4 Operations Turning On the Power - - - - - - - - - - - - - - - - - - - - - - - - 4-2 Factory-shipped Settings (Initialize) - - - - - - - - - - - - - - - 4-4...
  • Page 13 Contents Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-11 Chapter 7 Specifications Electrical Specifications - - - - - - - - - - - - - - - - - - - - - - 7-3 Functional Specifications - - - - - - - - - - - - - - - - - - - - - 7-8 General Specifications - - - - - - - - - - - - - - - - - - - - - - 7-11 Dimension Diagram - - - - - - - - - - - - - - - - - - - - - - - - 7-12...
  • Page 14 Contents...

  • Page 15: Function Index

    Function index Preparation Usage scenarios Manual sections page Confirming accessories “2.1 Checking the Package Contents” Rated input values - quantities “2.5 Connecting the Power Cord” “ Electrical Specifications” Space requirements around rear vent “2.2 Precautions Concerning Installation Location” What may be used with power supply “4.4 Connecting the Load”...

  • Page 16: Front Panel

    Front panel Display OUTPUT ALARM KEY LOCK TRACKING REMOTE DELAY Output terminals * Figure refers to 4-output model PMP16-1QU...
  • Page 17 Name Description +SHIFT page POWER switch POWER switch Depress side ( ) for on / ( ) for off MEMORY switch Memory recall 4-26 STORE Memory save 4-25 Output display selection Output display select (CH1, CH2, CH3 or 4-22 switch CH4) 4-29 OUTPUT switch...
  • Page 18 Name Description +SHIFT page Alarm Illuminates when the protection circuit is activated Ammeter Displays for current value, tracking function 2 current variation, OFF DELAY setup time or 4-16 config setting details 4-23 4-29 Delay Illuminates when the delay function is 4-23 activated TRACKING1/...

  • Page 19: Output Terminals

    Output terminals 3-output models (PMP18-3TR/25-2TR) 0-6V 0-5A 0-18V 0- 3A 0-18V 0- 3A POWER · · 1 2 3 4 5 6 SENSING 4-output model (PMP16-1QU) 0-25V 0-3A 0-6V 0-2A 0--16V 0--1A 0-16V 0-1A POWER 1 2 3 4 5 6 7 8 SENSING Name Description...

  • Page 20: Rear Panel

    Rear panel AC INPUT 100V 50/60Hz 450VA MAX Name Description page J1 Terminal block External control terminal block Exhaust Port Exhaustion of the internal heat using a fan – motor AC INPUT AC inlet Serial number This product's unit number –...

  • Page 21: Chapter 1 General Description

    General Description This chapter gives an overview and introduces the fea- tures of the PMP.

  • Page 22: Use Of This Manual

    Use of This Manual The PMP consists of two models that differ in the number of outputs. This manual covers the model described below. Output Rated Output Rated Output Type Model terminals Voltages Current 3-output PMP18-3TR 5.0 A models 18 V 3.0 A 18 V 3.0 A...

  • Page 23: Features

    When making inquiries about the product, inform us of • Model name (on the upper part of the front panel) • Firmware version Page 4-2 • Serial number (on lower part of the rear panel) Verify the firmware version at power-on time. Features ●...
  • Page 24 (*1) of “blank panel” must be installed when the product of the PMP is rack- mounted. *1 JIS standard: 50 mm, EIA standard: 44.45 mm Inquire with Kikusui distributor/agent concerning the details. KRA150 KBP3-3 BP1H Fig. 1-1...
  • Page 25 Blank panel KBP3-3 Rack mount adapter KRA3 Blank panel KBP3-3 Rack mount adapter KRA3 Unit: mm Fig. 1-2 Example of installation options for rack mounting...

  • Page 27: Chapter 2 Installation And Preparation

    Installation and Preparation This chapter explains how to prepare the product for use, from unpacking to installation.

  • Page 28: Checking The Package Contents

    If any of the accessories are damaged or missing, contact your Kikusui agent or distributor. We recommend that all packing materials be saved, in case the product needs to be transported at a later date.

  • Page 29: Precautions Concerning Installation Location

    However, operation in such environments may be possible through alteration. If you wish to use the PMP in such envi- ronments, consult your Kikusui agent or distributor.
  • Page 30 ● Do not place the product in a dusty location. Accumulation of dust can lead to electric shock or fire. ● Do not use the product where ventilation is poor. The product employs a forced air cooling system. Air is taken in from air inlet located on panels other than the rear panel and exhausted from the air outlet on the rear panel.

  • Page 31: Precautions To Be Taken When Moving The Product

    Precautions to Be Taken When Moving the Product When moving the product to the installation location or when transporting the product, note the following points. ● Turn off the POWER switch. Moving the product while the power is turned on can cause electric shock or damage to it.

  • Page 32: Connecting The Power Cord

    Removing rubber feet While pulling downward on the rubber feet (4 places), turn the installation screws, and pull the rubber feet out. Connecting the Power Cord The PMP is designed as an equipment of IEC Overvoltage Cat- egory II (energy-consuming equipment supplied from the fixed installation).

  • Page 33: Ground (Earth)

    AC INPUT 100V 50/60Hz 450VA MAX AC INPUT 100V 50/60Hz 450VA MAX Fig. 2-4 Confirmation of nominal input rating Ground (Earth) WARNING • The PMP is an IEC Safety Class I equipment (equipment with a protective conductor termi- nal). Be sure to ground the product to prevent electric shock.

  • Page 35: Chapter 3 Before Using The Pmp

    Before Using the PMP This chapter describes matters that users are requested to thoroughly understand before using the PMP. Be sure to read this chapter.

  • Page 36: Inrush Current

    Inrush Current When the power switch is turned on, the maximum inrush cur- rent of 120 A may flow. In particular, with a system using mul- tiple models of the product, when the power switch is turned on at the same time, make sure that there is enough of a margin, taking into consideration the capacity of the distributor panel or the AC power line.

  • Page 37: When The Load Current Has Peaks Or Is

    3.3.1 When the Load Current Has Peaks or is Pulse- shaped The current meter on the PMP indicates only mean values. Even when the indicated value is less than the preset current value, the peak values may actually exceed the preset current value.

  • Page 38: When The Load Generates A Reverse Current To

    3.3.2 When the Load Generates a Reverse Current to the Power Supply The PMP cannot absorb reverse current from the load. There- fore, if a regenerative load (such as an inverter, converter, or transformer) is connected, the output voltage increases and becomes unstable.

  • Page 39: When The Load Has Accumulated Energy Such As

    3.3.3 When the Load Has Accumulated Energy Such As Batteries When connecting to a load that has stored energy such as a bat- tery, a large current flows from the load to the product's internal capacitor through a protection diode in an internal output con- trol circuit, and depending on the situation, the product may burn out or the load's working life may be reduced.

  • Page 40: Constant Voltage (Cv) And Constant Current (Cc) Power Supplies

    Constant Voltage (CV) and Constant Current (CC) Power Supplies The product has functions for constant voltage power supply to maintain a fixed/regularized output voltage, and for constant current power supply that maintain a fixed output current, even as the load changes. The state of operation for constant voltage supply is called “CV mode”, and for constant current supply, “CC mode”.
  • Page 41 because the operating point is within the range. At this time, the current setup value I becomes the current limit value. When operating in CV mode, the output voltage is maintained at the voltage setup value. The output current is determined by the relation I=V , and is reduced to a value below the cur- rent limit value I...

  • Page 42: Example Of Cv/Cc Mode Operation

    Example of CV/CC mode operation The following example assumes a power supply at rated output voltage 100 V and rated output current 10 A. Connect an 8Ω load resistance (R ) to the power supply’s out- put terminal and set the output voltage to 30 V and the output current to 5 A.

  • Page 43: Overvoltage Protection (Ovp) Function

    When overheat protection (OHP) is activated, the ALARM LED blinks and OUTPUT is turned off, and “OHP” is dis- played on the front panel ammeter. Light on Alarm operation Blink OUTPUT ALARM ALARM LED blink Light off OHP Mode display KEY LOCK TRACKING REMOTE...
  • Page 44 To cancel, turn off the POWER switch once, and after removing the source of the problem, turn on the POWER switch again. If, after restoring power, over-voltage protection (OVP) is acti- vated again, it is possible that there is an internal malfunction. Inquire at your Kikusui distributor/agent. 3-10...

  • Page 45: Output Ch Number

    OUTPUT CH Number With the PMP, each output is assigned an OUTPUT CH num- ber. The OUTPUT CH number is used to individually control the outputs of the PMP when the PMP is under external control. The OUTPUT CH number for each model’s output is discussed below.
  • Page 46 3-12...

  • Page 47: Chapter 4 Operations

    Operations This chapter describes how to turn the power on, the basic operations that can be performed from the front panel and the series operation that is available by com- bining the outputs.

  • Page 48: Turning On The Power

    Turning On the Power POWER Switch-on Turn off the POWER switch on the (O) side. Check that the power cord is correctly connected. Turn on the POWER switch on the (|) side. Depress the POWER switch on the (|) side and the instrument turns on.

  • Page 49: Power Switch-Off

    POWER Switch-off Depressing the POWER switch (O) side turns the PMP off. The PMP saves the items below just before the POWER switch is turned off. These items are set to the values and states that are set when the POWER switch is turned on. •...

  • Page 50: Factory-Shipped Settings (Initialize)

    Factory-shipped Settings (Initialize) When the POWER switch is turned on while holding down the LOCAL switch, the voltmeter displays “ini” and the SET switch blinks. At this time, if the SET switch is depressed, the factory-shipped settings are restored. Table 4-1 Factory-shipped settings Item Factory-shipped settings...

  • Page 51: Basic Operation

    Basic Operation First, output setting methods are explained. Then, methods for using constant voltage power supply and constant current power supply are explained. 4.3.1 Setting the Output About voltage/current setting digit The PMP can select and set the setting digit when output volt- age and output current are being selected.
  • Page 52 • When the OUTPUT switch is turned on, the SET switch being lit means that the setting value is displayed and the outputs will differ. • Hereafter, the digits are numbered from the side of the most significant digit (leftmost). Select CH3 of the output display selection switches.
  • Page 53 Depress the CURRENT switch one more time and select digit 3 of the voltmeter. Turn the rotary knob right to set the value to “5”. The current setting above is finished. Similar steps are performed for other output settings. • If turning the rotary knob causes the set digit to go above “9”, or below “0”, the value of the digit that is higher by one step is changed.

  • Page 54: Using The Unit As A Constant Voltage (Cv) Or Constant Current (Cc) Power Supply

    4.3.2 Using the Unit as a Constant Voltage (CV) or Constant Current (CC) Power Supply When you use the unit as a constant voltage power supply, the current setting value becomes the current limit value used to Page 3-6 make current flow to the load. When you use the unit as a constant current power supply, the voltage setting value becomes the voltage limit value that can be applied to the load.
  • Page 55 Select the digit that you want to set by depressing the CURRENT switch and make the setting using the rotary knob. Set the current value. Repeat steps 5-7 for other channels. Depress the OUTPUT switch. The OUTPUT LED on the display is lit, and voltage/current is out- put to each output terminal.

  • Page 56: Connecting The Load

    Connecting the Load This section describes the wire used to connect the PMP to the load, and the connection to the output terminal. CAUTION • Before connecting to the load, confirm that the POWER switch is turned on, and that the OUTPUT is turned off.

  • Page 57: Dependence Of Allowable Cable Current On The Maximum Allowable Insulator Temperature

    + (pos.) and – (neg.) output lines side by side or bundling them together is more effective against unwanted noise. The Kikusui-recommended currents shown in Table 4-2 are allowable current that have been reduced in con- sideration of the potential bundling of load cables.

  • Page 58: Connecting To The Output Terminal

    Limitations of the sensing function Because wires have resistance, voltage drop in wires becomes greater as the wire becomes longer or the current becomes larger. This causes the voltage applied at the load end to be smaller. The PMP has a sensing function that compensates for this voltage drop, but compensation of up to approximately 0.3 V is available for a single line.
  • Page 59 Turn off the POWER switch. Attach crimping terminals to the load cable and con- nect it to the output terminal. Page 4-10 Check the connection. This part installed so as M6-size voltage Knob with binding to admit power line difference terminal post-cover Fig.
  • Page 60 CH1/CH2 COM terminals CH3/CH4 COM terminals 0-25V 0-3A 0-6V 0-2A 0--16V 0--1A 0-16V 0-1A Connecting COM terminals Connecting shock ground POWER terminals and COM terminals using the short bar. 1 2 3 4 5 6 7 8 SENSING Short bar Crimping terminals CH1/CH2 COM terminals CH3/CH4 COM terminals...
  • Page 61 Installing binding post cover Remove knob from body. From the side of the post binding cover, fit the bind- ing post cover onto the center of the knob, and depress it in until it can not be removed. Put into side by fitting onto this part Fig.

  • Page 62: Tracking Function (Tracking)

    Tracking Function (TRACKING) The tracking function permits changing multiple channels simul- taneously in accordance with changes in a reference channel. If performed within an active area, it can be varied from 0 V (or 0 A) to the rated voltage (or the rated current). There are the following two kinds of tracking functions.
  • Page 63 Tracking function 1 (absolute value variable) When this tracking function is activated, the output of each channel other than the reference channel, which is selected using the output display selection switch, varies by the same value (absolute value) as the variation in the reference channel. Note that the variation of the output of each non-reference channel occurs with respect to its voltage or current setting.
  • Page 64 Example 1) [CH1] [CH2] Reference voltage 10.00 V 3.00 V Set TRACKING function 1. Increase CH1 by 4 V. CH2 increase stops at the maximum voltage, 14.00 V 6.18 V but its variation result, which is 3 V + 4 V = 7 V, is saved.
  • Page 65 Tracking function 2 (variable ratio) When this tracking function is activated, the output of each channel other than the reference channel, which is selected using the output display selection switch, varies by the same percentage (ratio) as the variation in the reference channel. Note that the variation of the output of each non-reference channel occurs with respect to its voltage or current setting that is assumed to be 100%.
  • Page 66 (a) Variation within the rated output level + output (OUTPUT CH4) Maximum available setting voltage Setting voltage 200% 100% Variation with TRACK switch ON Setting voltage Maximum available setting voltage – output (OUTPUT CH3) (b) Variation beyond the maximum available level + output (OUTPUT CH4) Maximum available setting voltage...
  • Page 67 Setting resolution in tracking operation When setting the resolution for the tracking operation, select the digit to be selected using the VOLTAGE or CURRENT switch and set it with the rotary knob. • The output resolution is restricted by the least significant digit on the display.
  • Page 68 Turn on the OUTPUT switch. Turn the rotary knob to set the displayed output value to the desired value. To exit from the tracking operation, depress the switch corre- sponding to the tracking function in use, that is, either the TRACK 1 switch or the TRACK 2 (SHIFT + TRACK 1) switch.

  • Page 69: Delay Function

    Delay Function The time period between the depress of the OUTPUT switch and the actual switching of the outputs to ON (ON DELAY) or OFF (OFF DELAY) can be set. The available setting range of DELAY TIME is between 0.1 and 99.9 seconds.
  • Page 70 Setting the ON DELAY and OFF DELAY time ON DELAY time Light on (Set to 5 sec.) OUTPUT ALARM Blink OFF DELAY time Light off (Set to 10 sec.) KEY LOCK DELAY LED blinks during TRACKING REMOTE DELAY delay time setting. Fig.
  • Page 71 Operation procedure of the delay function The delay function allows you to turn the outputs on/off. Check that the OUTPUT is turned off. Set the output values for each channel. Depress the DELAY SET (SHIFT+DELAY) switch to set the delay time. For the delay time setting method, see “Setting the ON DELAY Page 4-24 and OFF DELAY time”.

  • Page 72: Memory Function

    Light on OUTPUT OUTPUT LED is lit. OUTPUT ALARM OUTPUT ALARM LED blinks. Blink DELAY operation Light off KEY LOCK KEY LOCK DELAY LED is lit. TRACKING TRACKING After OFF REMOTE DELAY REMOTE DELAY LEDs light steadily DELAY when ON DELAY operation Example of OFF DELAY Example of OUTPUT...

  • Page 73: Recalling Settings

    Recalling settings CAUTION • When memory settings are recalled while the OUT- PUT switch is turned on, the recalled setting values are output. Be careful not to recall a wrong memory number to avoid applying an unexpectedly high power to the load. In the memory banks that you would not use, it is recommended to store the voltage and current val- ues that would not damage the load.

  • Page 74: Series Connection Of Outputs (Only For Pmp16-1Qu)

    Series Connection of Outputs (only for PMP16-1QU) With PMP16-1QU, the output voltages of two channels can be combined and magnified by connecting the load to their + (positive) and – (negative) output terminals. 0-25V 0-3A 0-6V 0-2A 0--16V 0--1A 0-16V 0-1A POWER 1 2 3 4 5 6 7 8 SENSING...

  • Page 75: Locking The Panel Operation (Key Lock)

    Locking the Panel Operation (KEY LOCK) When the PMP is used by fixing the settings, the control opera- tions using the front panel keys can be inhibited to prevent the settings from being altered by mistake. Once the front panel keys are locked, operation of switches other than the OUTPUT switch, output display selection switches and KEY LOCK (SHIFT+SET) switch will become invalid.

  • Page 76: Configuration Setup (Config)

    4.10 Configuration Setup (CONFIG) The configuration setup sets the operating conditions of the PMP. It is performed by using the voltmeter display, ammeter dis- play, CONFIG switch and the rotary knob and/or output dis- Fig. 4-16 play selection switches. Depress the CONFIG switch. The display changes to the CONFIG display.
  • Page 77 Normal display POWER ON output setup OUTPUT ALARM (On.Po) Tracking setup (tr.CH) OUTPUT ALARM Remote sensing setup OUTPUT ALARM (SenS) Voltage limit operation setup OUTPUT ALARM (Vo.Li) Current limit operation setup OUTPUT ALARM (Cu.Li) Voltage fine setup (Vo.Fi) OUTPUT ALARM Current fine setup (Cu.Fi) OUTPUT...

  • Page 78: Tracking Setup

    POWER ON OUTPUT setup (“ON.PO”: This sets the initial status at the moment the POWER switch is Rotary knob turned on. Use the rotary knob for the setup. ON ( Start in the OUTPUT ON status. OFF ( Start in the OUTPUT OFF status. Tracking setup (“TR.CH”: output This sets the channels to perform the tracking operation.
  • Page 79 Voltage limit operation setup (“Vo.LI”: Rotary knob This sets the operation of the digits lower than the selected digit when the voltage approaches the maximum or minimum limit of the voltage setting range. Use the rotary knob for the setup. HOLD ( ): Digits lower than the selected digit are fixed.
  • Page 80 • When digits lower than the selected digit are fixed: 0. 950 A 0.9 5 0 A Selected Fixed When the level is varied by +0.1 A, the resulting digit 1.050 A exceeds the maximum current level setting, so the setting is not changed because the digits below the selected digit should be fixed.
  • Page 81 Voltmeter display figures 1 2 . 3 4 1 3 . 3 4 1 V variable The set figure is cleared as a result of 1 V Set with “On-c” variable. ON-H ( ): Voltage fine setup enabled The voltage can be set by the digit (of 1 mV or 0.1 mV) below the least significant digit displayed in the voltmeter display.
  • Page 82 The current can be set by the digit (0.1 mA) below the least significant digit displayed in the voltmeter display. However, when the figure of another digit is changed after setting the digit of 0.1 mA, the figure in the digit of 0.1 mA is cleared to “0”.

  • Page 83: Chapter 5 External Control

    External Control This chapter gives description on the external control and remote sensing functions.

  • Page 84: External Control Function

    External Control Function In addition to the control using the front panel, the PMP can control the following operations by means of the J1 terminals on the rear panel. • Output on/off control based on external contact input sig- nals •...

  • Page 85: Connection Procedure

    Connection procedure Turn off the POWER switch. Use a wire stripper to remove 10 mm of the covering from the wires. Using the strip gauge that is indicated on the top panel to easily take the strip-gauge's measure. Insert a wire into the screw-less terminal.

  • Page 86: J1 Terminals

    5.1.2 J1 Terminals This section describes the connection methods and precautions for the J1 terminals that are used for the external control connection. Table 5-1 J1 terminals arrangement Terminal No. Signal Name Description Operation ALM IN External alarm input Short-circuit terminals 1 and 6. MEMORY1 Memory 1 recall Short-circuit terminals 2 and 6.

  • Page 87: Controlling The Alarm Input (Alm In) Using

    5.1.3 Controlling the Alarm Input (ALM IN) Using External Contact This function shuts off the outputs from the PMP according to the input from an external contact. When the alarm signal is input, the POWER switch should be turned off to release the alarm. Connection procedure Turn off the POWER switch.
  • Page 88 5.1.4 Recalling Memory 1, 2 or 3 Using External Contacts The settings stored in memory banks 1, 2 and 3 can be recalled using external contact input signals. Connection procedure Turn off the POWER switch. Connect contact switches to terminals 2, 3, 4 and 6 of the J1 terminal board.
  • Page 89 ■ Operation To recall a memory setting, short-circuit the terminal with the target memory number with the COMMON terminal. The short-circuiting period should be longer than 500 ms. It is invalid to short-circuit more than one pair of terminals at a time. When a memory is selected by means of the external control terminals, the MEMORY switch on the front panel is invalid.

  • Page 90: Contacts

    5.1.5 Turning OUTPUT On/Off Using External Contact Turning the OUTPUT on/off can be controlled using external contacts. Connection procedure Turn off the POWER switch. Connect contact switches to terminals 5 and 6 of the terminal block. Fig. 5-8 Check the connection. Twisted pair wire or 1 : External alarm input shielded wire...

  • Page 91: Remote Sensing Function

    Remote Sensing Function The remote sensing function is used to reduce the influence of voltage drops due to the load cable resistance and stabilize the output voltage across the load. The remote sensing function of the PMP can compensate up to approximately 0.3 V for a single line.
  • Page 92 Remote Sensing Connection Procedure WARNING • There is a risk of electric shock or damage to the internal circuitry. Be sure to turn off the POWER switch before connecting wires to the sensing terminals. • The rated voltages of the wires connected to the sensing terminals should be equal to or larger than the isolation voltage of the PMP.
  • Page 93 PMP18-3TR/PMP25-2TR PMP16-1QU · · · · 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 SENSING SENSING SENSING SENSING None None Fig.
  • Page 94 Confirm the connection of the sensing terminals. Be sure to connect the sensing wires securely by referring to the checklist in Table 5-3. WARNING • To turn on/off the power supplied to a load using a mechanical switch, provide additional switches between the sensing wires as shown in Fig.
  • Page 95 Check Item Phenomena and Remedy Is the product being The outputs from the PMP are guaranteed only up to the used near the rated rated voltage. If the voltage drops till the load end is too output voltage? large and the voltage at the output end exceeds the rated voltage, stable voltage cannot be supplied to the load end and malfunction of the PMP may also result.
  • Page 96 5-14...

  • Page 97: Chapter 6 Maintenance

    Maintenance This chapter describes maintenance and inspection of the PMP. Conduct periodic maintenance and inspection to maintain the initial performance as long as possible. This chapter also describes the countermeasures to be taken when malfunction is suspected during use of the PMP.

  • Page 98: Cleaning

    Check that the insulation coating is not broken and that the plug is not cracked or falling apart. WARNING • Breaks in the insulation coating may cause electric shock. If a break is found, stop using it immediately. To purchase accessories, contact your Kikusui agent or distributor.

  • Page 99: Calibration

    Follow the procedures described below when adjustment is required. This section lists all of the adjustment operations required for the PMP. If you have any inquiry or doubt, please contact your Kikusui agent or distributor. 6.3.1 Test Equipment Required For calibration or control, the following equipment is necessary.

  • Page 100: Adjustments

    6.3.3 Adjustments The PMP should be set to the CAL mode before adjustment. While holding the SET switch, turn on the POWER switch. The CAL mode is displayed and the PMP enters the CAL mode. The panel display of the voltage CAL mode appears at the start of CAL mode.
  • Page 101 Voltage adjustment procedure CAUTION • Be sure to connect wires to the output and sensing terminals before starting the voltage adjustments. If the sensing terminals are left unconnected, the out- put voltage may be deviated by some tens of milli- volts due to the effects of the internal circuitry and the load may be subjected to an excessive voltage.
  • Page 102 Connect the chassis grounding terminal 0-25V 0-3A 0-6V 0-2A 0--16V 0--1A 0-16V 0-1A and COM terminal using a shorting bar. POWER 1 2 3 4 5 6 7 8 SENSING Fig. 6-2 PMP16-1QU voltage adjustment connection example 2 (Connection to CH3 or CH4 output terminal) ■...
  • Page 103 Depress the OUTPUT switch to turn the output on. The PMP outputs approximately 10 % of the rated output volt- age. Turn the rotary knob so that the DVM reading is equal to 10 % of the rated output voltage. Turning the rotary knob while holding down the SHIFT switch increases the resolution.
  • Page 104 Current adjustment procedure ■ Connecting the equipment Turn off the POWER switch. Connect a shunt resistor and a DVM to the output terminal. Connect them according to the output to be adjusted. Connect the chassis grounding terminal 0-25V 0-3A 0-6V 0-2A 0--16V 0--1A 0-16V 0-1A and COM terminal...
  • Page 105 ■ Warm-up While holding down the SET switch, turn on the POWER switch. Hold the SET switch until the panel display of the CAL mode is displayed. Check that the OUTPUT LED on the display is not lit. If it is lit, depress the OUTPUT switch to turn the output off. Warm up the equipment including the shunt resistor and DVM for sufficient time.
  • Page 106 Depress the CURRENT switch to display “FS 1” on the ammeter. Depress the OUTPUT switch to turn the output on. The PMP outputs approximately 100 % of the rated output cur- rent. Turn the rotary knob so that the direct ammeter read- ing is equal to 100 % of the rated output current.

  • Page 107: Troubleshooting

    If no check item meets the current status, it is recommended to initialize the product (but note that this clears the memory contents). If the trouble still persists, please contact your Kikusui agent. ■ Symptom 1: The display shows nothing. Check item...
  • Page 108 ■ Symptom 3: No output even when the OUTPUT switch is turned on. Check item Cause and Remedy Page Is the voltage or current • Check that the required output levels are setting set to the minimum set. level? ■ Symptom 4: The output is unstable. Check item Cause and Remedy Page...
  • Page 109 ■ Symptom 5: The output ripple is high. Check item Cause and Remedy Page Is the input voltage within • Apply a supply voltage of no more than the – the rated range? rated voltage. Are the output and • There is induction of the AC line frequency chassis terminals (50/60 Hz).
  • Page 110 6-14...

  • Page 111: Chapter 7 Specifications

    Specifications This chapter gives description on the electrical and mechanical speci- fications of the PMP and its options.
  • Page 112 Unless specified otherwise, the specifications are for the following settings and conditions. • The load is a pure resistance. • Connect the COM terminal to the chassis terminal. • Warm up the PMP for 30 minutes (with power on). • For the environmental conditions after the warm-up, the temperature should be 23 ±...

  • Page 113: Electrical Specifications

    Electrical Specifications Model PMP16-1QU PMP18-3TR PMP25-2TR Output Output channels Voltages CH1 Rated voltage 25.0 V 6.0 V 6.0 V Maximum available 25.75 V 6.180 V 6.180 V voltage Minimum setting 10 mV 1 mV 1 mV resolution Setting accuracy ± (0.15 % of ±...
  • Page 114 Model PMP16-1QU PMP18-3TR PMP25-2TR Output Voltages CH1 Rated current 3.0 A 5.0 A 5.0 A Maximum available 3.090 A 5.150 A 5.150 A current Minimum setting 1 mA 1 mA 1 mA resolution Setting accuracy ± (0.3 % of set ±...
  • Page 115 Model PMP16-1QU PMP18-3TR PMP25-2TR Output Voltage/current Setting method Switch CH and CV/CC, and then turn the rotary setting method knob. Voltage/current Select the CH using the output display selection setting selection switch. SET (Limit) Press the SET switch while the output is turned off.
  • Page 116 Model PMP16-1QU PMP18-3TR PMP25-2TR Constant voltage characteristics 100 ms 100 ms 100 ms Full-load rise time (TYP) 100 ms 100 ms 100 ms 100 ms 100 ms 100 ms 100 ms － － 400 ms 300 ms 300 ms No-load fall time (TYP) 300 ms 300 ms 400 ms...
  • Page 117 Model PMP16-1QU PMP18-3TR PMP25-2TR Voltmeter/Ammeter Voltmeter Display Digital display 4-digit LED display (The value of each CH is switched using the output display selection switch.) Negative display Negative sign LED display. *3*7 Output Accuracy 1 ± (0.2% of rdng + 20 mV) rating *3*7*8 Accuracy 2...

  • Page 118: Functional Specifications

    Functional Specifications Model PMP16-1QU PMP18-3TR PMP25-2TR Protection function Overheat protec- Detection Detection of the internal heat sink temperature. tion (OHP) Operation All-CH OUTPUT off. Display Blinking ALARM LED. “OHP” displayed on the7-segment LED display. Over-voltage Operating Activated at 110% to 130% of the rated voltage of protection (OVP) voltage each CH.
  • Page 119 Model PMP16-1QU PMP18-3TR PMP25-2TR Delay Operation Any CH channels Settings Setting of the time after OUTPUT is turned on and the time after OUTPUT is turned off. On/Off Switched using the front panel switch. Display Delay LED on the front panel lights when OUT- PUT is turned on.
  • Page 120 The voltage setting accuracy cannot be guaranteed when the difference between the remote sensing terminal voltage (voltage on the load end) and the output ter- minal voltage exceeds the compensating voltage. A small amount of current (max. 10 mA) flows through the sensing wires during the remote sensing operation.

  • Page 121: General Specifications

    General Specifications Model 16-1QU 18-3TR 25-2TR Environ- Operating environment Indoors, over-voltage category II ment Operating temperatures/ 0 •C to 40 •C, 10 %rh to 80 %rh C to 40 •C, 10 %rh to 80 %rh humidity (without condensation) Storage temperatures/ humidity –10 •C to 60 •C, less than 90 %rh C to 60 •C, less than 90 %rh (without condensation)

  • Page 122: Dimension Diagram

    Dimension Diagram 40M3 screw hole (Max. depth 4 mm) MAX25 MAX25 MAX430 MAX160 Common for rubber foot and M3 screw Unit: mm Fig. 7-1 The PMP - Dimension diagram 7-12...

  • Page 123: Index

    Index DELAY TIME - - - - - - - - - - - 4-23 Display - - - - - - - - - - - - - - - - xiv AC INPUT - - - - - - - - - - - - - - xviii Accessories - - - - - - - - - - - - 2-2 Adjustments - - - - - - - - - - - - 6-4 Alarm Input - - - - - - - - - - - - - 5-5...
  • Page 124 Setting the Output - - - - - - - - -4-5 SHIFT - - - - - - - - - - - - - - - - - viii MEMORY - - - - - - - - - - - - - 4-26 Short bar - - - - - - - - - - - - - - -xvii Memory function - - - - - - - - 4-26 Storing settings - - - - - - - - - -4-26...

This manual is also suitable for:

Pmp18-3trPmp25-2trPmp16-1qu

Table of Contents
