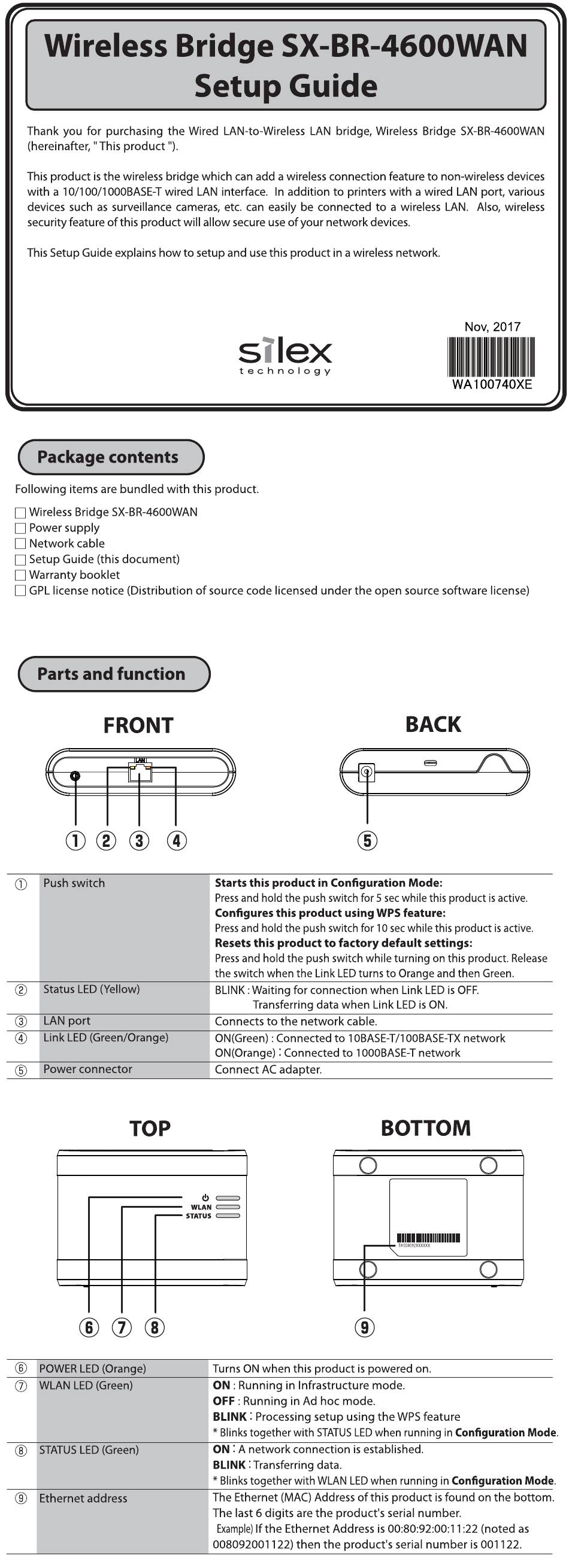

Silex technology SX-BR-4600WAN Setup Manual

Wireless Bridge SX-BR-4600WAN
Thank you for purchasing the Wred LAN-t0-Wireless LAN bridge, Wireless Bridge SX-BR-4600WAN
(hereinafter, This product
This product is the wireless bridge which can add a wireless connection feature to non-wireless devices
with a 10/100/1OOOBASE-T wired LAN interface. In addition to printers with a wired LAN port, various
devices such as surveillance cameras, etc. can easily be connected to a wireless LAN. Also, wireless
security feature Ofthis product will allow secureuse Ofyour network devices.
ThisSetup Guide explains how to setup and use this product in a wireless network.
Package contents
Following items are bundled with this product.
Wireless Bridge SX-BR-4600WAN
Ü Power supply
Network cable
Setup Guide (this document)
Warranty booklet
C) GPLlicense notice (Distribution of source code licensed under the open source software I
Parts and function
FRONT
ush switch
O
S tatus LED (Yellow)
LAN port
Link LED(Green/Orange)
Power connector
POWER LED (Orange)
WLAN LED (Green)
STATUSLED (Green)
Ethernet address
Setup Guide
Starts this product in Configuration Mode:
Press and hold the pushswitchfor 5 secwhile this product isactive.
Configures
L Press and hold the pushswitchfor 10
Resets this product to factory default settings:
Pressand hold the push switch while turning on this product. Release
the switch when the Link LEDturns to Orange and then Green.
BLINK: Waiting for connection when Link LEDis OFF.
Connects
ON(Green) : Connected to IOBASE-T/IOOBASE-TX network
ON(Orange) : Connected to 1OOOBASE-T network
Connect AC adapter.
TOP
WLAN
STATUS
Turns ON when this product is powered on.
ON : Running in Infrastructure mode.
OFF : Running in Ad hoc mode.
BLINK : Processing setup using the WPSfeature
Blinkstogether with STATUS L EDwhen running in Configuration Mode.
ON : A network
BLINK : Transferring data.
Blinkstogether with WLANLEDwhen running in Configuration Mode.
The Ethernet (MAC) AddressOfthis product is found on the bottom.
The last 6 digits are the product's serial number.
Example) If the Ethernet Address is
008092001122) then the product's serial number is 001122.
silex
this product using WPS feature:
Transferring data when Link LEDis ON.
to the network
connection
WA 100740XE
BACK
whilethis product is active.
cable.
BOTTOM
is established.
