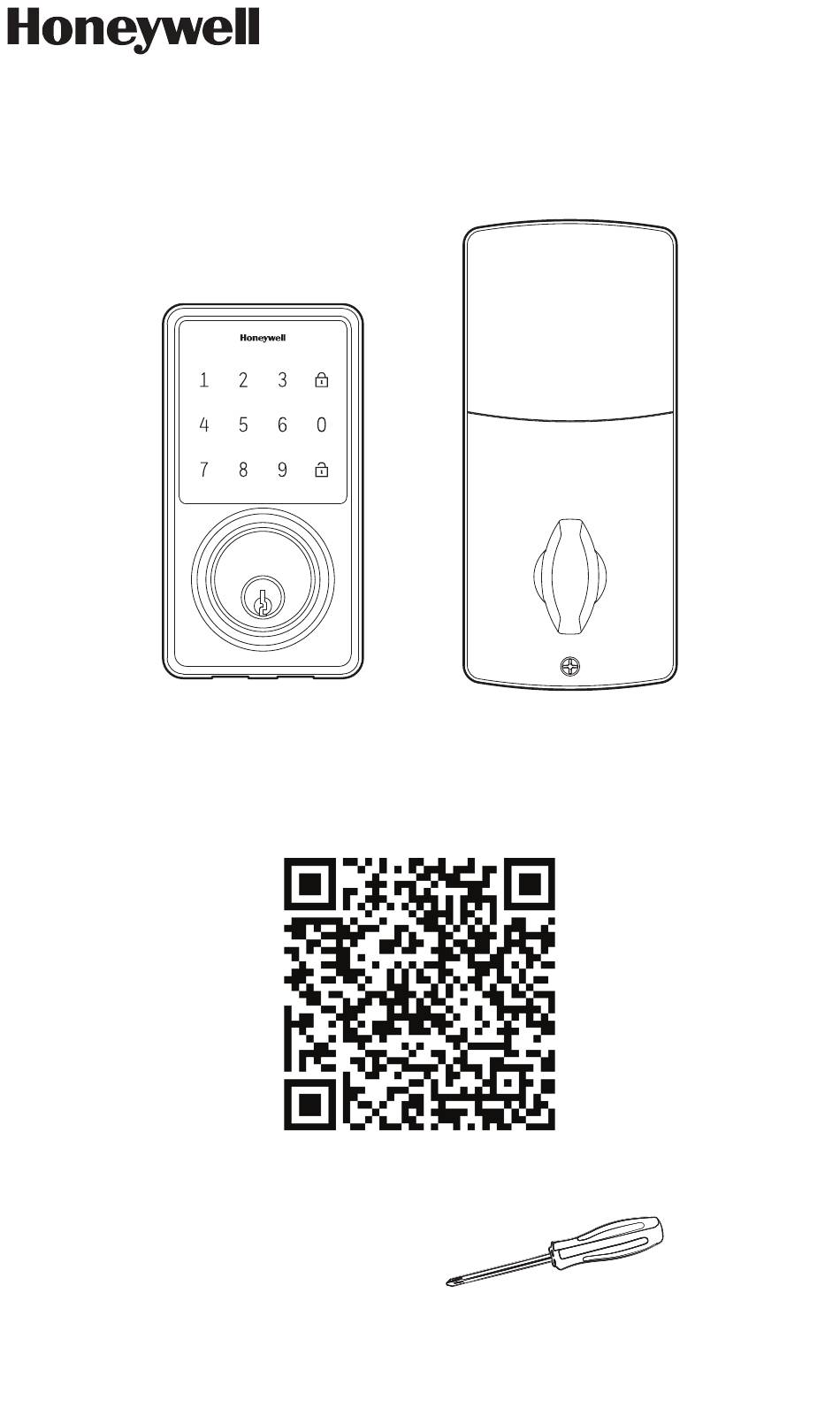

- Page 1 ENGLISH Digital Touchscreen Deadbolt Important Use the QR code below for the most up to date instructions: Tools Needed for Lock Installation: • Phillips Screwdriver Read this manual carefully before installing and operating! Model 8733500...
-
Page 2: Installation Overview
Installation Overview Package Includes: 1 - Exterior Faceplate 1 - Strike Plate 2 - 5/16” Screws 1 - Interior Faceplate 1 - Mounting Plate 2 - 1” Screws 1 - User Guide 1 - Latch 4 - 3/4” Screws 2 - Keys 1 - 1 3/8”... - Page 3 Install Enclosed Latch and Strike Plate Do not over-tighten latch screws. NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm). 2-3/8” position 2-3/4” position TO CONVERT FROM 2-3/8” (60mm) BACKSET TO 2-3/4” (70mm) BACKSET: 1. Hold latch with numbers facing forward and thumb pressing on the bolt. 2.
- Page 4 Install Exterior Assembly Check that the Rubber Gasket is secured on the Exterior Assembly. Insert the Exterior Assembly onto the door with the tailpiece going through the Deadbolt Latch Set in the VERTICAL POSITION. Route the Control Wire through the door UNDER the Deadbolt Latch Set. Make sure the door is shut, lock and unlock using the key, ensure that the latch is operating smoothly and is aligned properly without scraping the strike plate.
-
Page 5: Install Interior Assembly
Install Interior Assembly Carefully insert control wire into the wire connector Work with the door open NOTE: Make sure the connector dots line up with the dots on the control wire... -
Page 6: Test The Lock
Install Interior Assembly NOTE: Make sure the Turn Knob is in the vertical position. Be careful not to pinch the control wire when assembling. Turn Knob Test the lock Lock and unlock using the turn knob make sure the latch is opening and closing easily. - Page 7 Install Batteries and Cover This Electronic lock requires (4) High Quality AA Alkaline batteries. When all 4 batteries are installed in the correct position, you should hear 2 beeps and the touchscreen will illuminate. The Lock motor will engage and do a series of locking and unlocking motions in order to automatically determine your door “Handing”...
-
Page 8: Testing Operation
Testing Operation Test the lock button with door open Test unlocking Press 1-2-3-4-unlock Before Opening Door Let Motor Complete Cycle NOTE: Let lock operation complete before attempting another action... - Page 9 Preparing Door Tools Needed for Door Preparation (if there is no knob hole): NOTE: Skip this step if your door comes with pre-drilled holes. 2 1/8” Hole Saw • Drill • 2 1/8” Hole Saw • 1” Hole Saw • 3/4” Chisel 1”...
-
Page 10: Programming Instructions
Programming Instructions Read this manual carefully before Programming and operating! Complete all the programming steps in the programming mode within 5 seconds Do not press touchscreen until it stops illuminating, after you put in batteries... - Page 11 Creating Administrator Code Touch screen to wake up lock. Do not share admin code. Input Admin code Press unlock (default 123456) Input 6 digit code, Press 4 Press unlock Press unlock Repeat the 6 digit code Green light flashes Press unlock confirming success 6 Digit Admin Code...
- Page 12 Adding a User Code Touch screen to wake up lock. Input Admin code Press unlock Press Input user number between Input new 4-8 digit Press unlock 02-50, Press unlock user code, Press unlock Repeat 4-8 digit user code Green light flashes Press unlock confirming success...
-
Page 13: Programming Record
Unlocking Door with User Code Touch screen to wake up lock. Enter User Code Press unlock TO LOCK DOOR, wake up lock and press Lock button PROGRAMMING RECORD Date Created My Codes: Programming Code (6 digits) User Code 02 (4-8 digits) User Code 03 (4-8 digits) User Code 04... -
Page 14: Deleting A User Code
Deleting a User Code Touch screen to wake up lock. Press unlock Input Admin code Input existing user # between Press Press unlock 02-50, Press unlock Repeat the User # Green light flashes Press unlock confirming success... - Page 15 Deleting All User Codes Touch screen to wake up lock. Input Admin code Press unlock Press 3 Press unlock Reenter Admin code Green light flashes Press unlock confirming success...
-
Page 16: Additional Programming Functions
Additional Programming Functions Touch screen to wake up lock. Wake up lock before each function. Programming Symbols Lock / Clear Unlock / Programming Administrator Code Automatic Lock Function SET OR CANCEL AUTO LOCK You can set the lock to automatically close after each time the lock is opened. Time value range = 20 - 900 seconds, enter the following: Set Auto Lock: Unlock... -
Page 17: Restore Factory Settings
Additional Programming Functions SOUND ON AND OFF You can “mute” or turn the “sound on” on your lock by entering the following. (Factory setting is sound on). Unlock Unlock 1 or 2 Unlock 1 = Sound Off 2 = Sound On Sound Off (1) - Light Indicator illuminates green. -
Page 18: Troubleshooting
Troubleshooting Issue Solution Knob or vertical tailpiece is installed in incorrect position. Interior Knob will not • Remove Interior Assembly and reposition the Interior Knob. With the turn Deadbolt Latch retracted verify that the tailpiece is vertical. • Check that all batteries are fresh high quality Alkaline Batteries. •... -
Page 19: Additional Terms
Manufactured by: LH Licensed Products, Inc. 860 East Sandhill Avenue Carson, CA 90746 The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representations or warranties with respect to this product. www.honeywellsafes.com M8733500 E V0...
