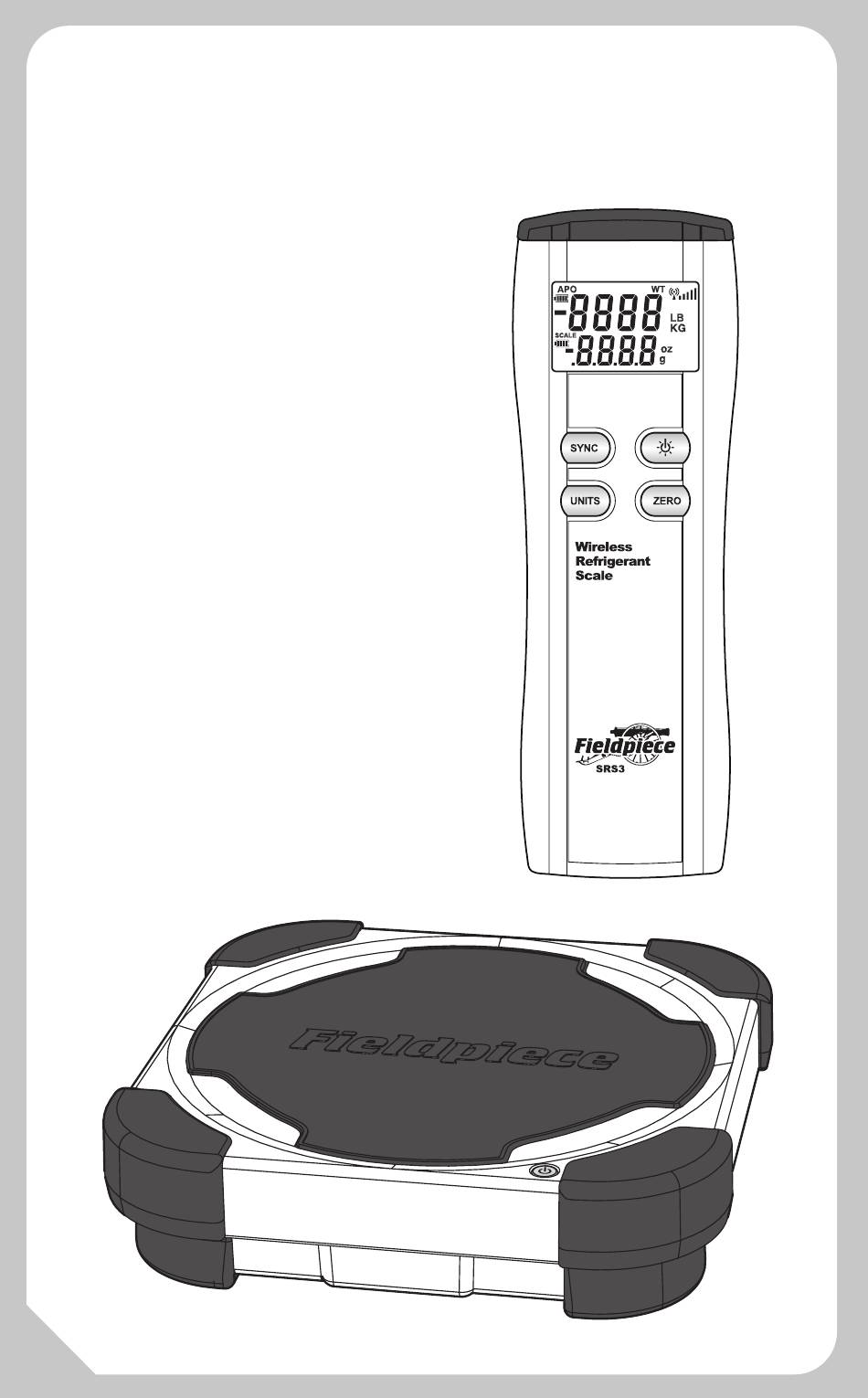

- Page 1 Fieldpiece Wireless Refrigerant Scale OPERATOR'S MANUAL Model SRS3 (Remote Model: SRS3R) (Platform Model: SRS3P)
-
Page 2: Quick Start
Quick Start 1 Install the 9V battery into the remote display and 6 x AA batteries into the platform. 2 Press for 1 second to turn on the platform. 3 Press for 1 second to turn on the display. 4 Read weight directly on the display. -
Page 3: Maintenance
Description Your new SRS3 Wireless Refrigerant Scale combines modern wireless electronics and rugged materials to perform at the high level you demand. The platform is made of thick aluminum to maintain accuracy over the life of the product. Rubber pad and bumpers cushion both the tank and the scale itself. -
Page 4: Display Icons
Buttons Press for 1 second to power the platform on/off. Press for 1 second to power the remote on/off. Tap for backlight. Press for 1 second to zero (tare). Press for 1 second to cycle through units. Press for 1 second to search for available platforms to connect to. -
Page 5: Specifications
Specifications Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity Over range: "OL" is displayed Maximum load: 252 lbs (114 kg) Auto power off: 30 minutes of inactivity (no change in weight or buttons pressed), (APO can be disabled) Backlight: Blue, turns off in 2 minutes if no buttons are pressed Accuracy: ±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg) -
Page 6: Weight Measurement
Functions Weight Measurement Your SRS3 scale is designed to measure refrigerant tanks weighing up to 252 lbs. Placing items over 252 lbs on the scale may damage the scale. 1 Remove the scale from the padded case and place the platform on solid, level ground. - Page 7 Syncing a Display to a Platform The included remote display is setup to view the platform at the factory. You shouldn't ever need to re-sync them. You can sync two SRS3 remote displays (SRS3R) to a single SRS3 plat- form (SRS3P) if desired.
- Page 8 Tech Tips Respect the Environment Always use hoses with ball valves or low-loss fittings to minimize harmful refrigerant gases entering the atmosphere. Account for Your Hose Weight Connect the hoses to the system and tank before zeroing the scale. After charge/recovery is finished and the system is stable, note the weight before removing hoses.
-
Page 9: Safety First
Safety First! For use only by qualified and certified technicians in the safe use, handling, and transporting of refrigerants. Please refer to flammable refrigerant safety guides, regional codes and legislation for more information. WARNINGS – failure to heed these hazards and actions can result in serious injury or death Always use a grounded outlet Always wear Proper Protective Equipment (PPE), which includes... - Page 10 Have emergency, evacuation, and fire protection plans Designate and monitor a Temporary Flammable Zone with a 3-meter perimeter Identify and disable all possible ignition sources within this Zone Monitor air with a flammable refrigerant leak detector within this Zone Use a ventilation fan to maintain 5 air exchanges per hour within this Zone Make power connection of the recovery machine and other equipment outside of the Temporary Hazard Zone...
-
Page 11: Limited Warranty
This scale is warranted against defects in material or workmanship for one year from date of purchase from an authorized Fieldpiece dealer. Fieldpiece will replace or repair the defective unit, at its option, subject to verification of the defect. This warranty does not apply to defects resulting from abuse, neglect, accident, unauthorized repair, alteration, or unreasonable use of the instrument. -
Page 12: Obtaining Service
Obtaining Service For international customers, warranty for products purchased out- side of the U.S. should be handled through local distributors. Visit our website to find your local distributor. © Fieldpiece Instruments, Inc 2022; v24... - Page 13 Certifications and Module IDs EN 300 328 Regulatory Compliance Mark SRS3R: 2ALHR001 Waste Electrical and SRS3P: 2ALHR004 Electronic Equipment SRS3R: 00634-18-02825 Restriction of Hazardous SRS3P: 00633-18-02825 Substances Compliant IC: Industry Canada IFETEL: Federal Telecom Institute SRS3R: 22518-BT001 SRS3R: RCPFI2A18-0237 SRS3P: 22518-BT004 SRS3P: RCPFI2A18-0236...
-
Page 14: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 15 This equipment should be installed and operated with minimum distance 0.5 cm between the radiator and your body. Fieldpiece Instruments 1636 West Collins Avenue, Orange, CA 92867 IFETEL Statement La operación de este equipo está sujeta a las siguientes dos...
