OPERATOR'S
MANUAL
Model SR47
01

Quick Start

1 Install the 9V battery into the remote display
and 6 x AA batteries into the platform.
2 Press
for 1 second to turn on the platform.
3 Press
for 1 second to turn on the display.
4 Read weight directly on the display.
02

Description

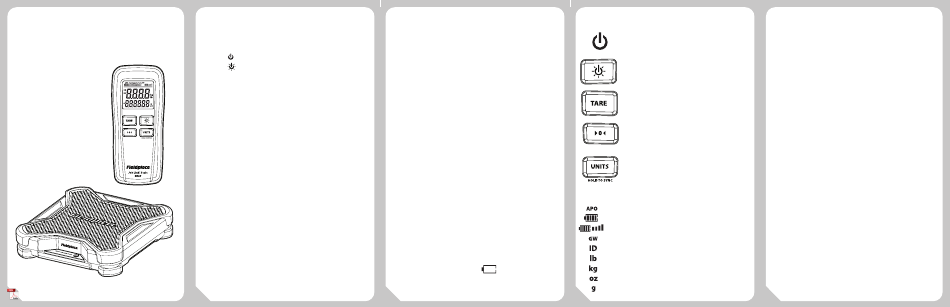

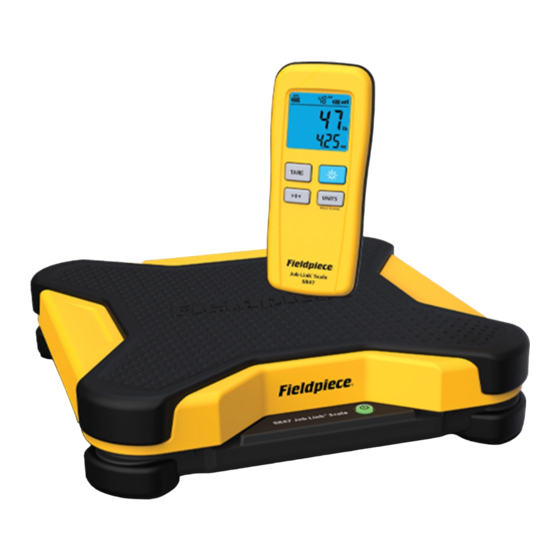

High capacity and rugged, the SR47 Wire-
less Refrigerant Scale combines best in class
wireless electronics and rugged materials to
perform at the high level you demand.
The platform is made of thick aluminum to
maintain accuracy over the life of the product.
Integrated rubber pad and bumpers protect the
platform from impacts and accommodate large
tanks. Electronics are sealed to block moisture
from rain and splashes. The dual magnetic
folding back mounts firmly to a condenser or
anything metallic for easy display viewing.
View weights directly in the Fieldpiece Job
Link® system mobile app or with your Fieldpiece
digital manifold. Log and document refrigerant
use in-app to comply with new standards (EPA
Section 608).

Maintenance

CLEANING: Clean the exterior with a damp cloth.
Do not use detergents or solvents.
BATTERIES: The batteries in the remote or plat-
form must be replaced when its battery life
indicator on the remote
is empty. Remove
rear battery cover and replace.
03

Buttons

Press for 1 second to power the
platform on/off.
Press for 1 second to power the
remote on/off. Tap for backlight.
Press for 1 second to tare tank for
charging and recovering refrigerant.
Press for 1 second to zero.
No weight should be on platform.
Tap to change units. Press for 1
second to search for available plat-
forms to connect to.

Display Icons

Auto power off enabled on platform
Remote display battery life
Platform battery life and wireless signal strength
Gross weight
4 digit ID indicator
Pounds
Kilograms
Ounces
Grams
04
Specifications
Specifications good in ambient conditions of 73°F ±9°F
(23°C ±5°C), <75% relative humidity
Over range: "OL" is displayed
Maximum load: 252.00 lbs (114.00 kg)
Max tank base diameter: 13 inches (33 cm)
Auto power off: 30 minutes of inactivity (no change in weight or
buttons pressed), (APO can be disabled)
Backlight: Blue, turns off in 2 minutes if no buttons are pressed
Accuracy:
±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg)
±0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg)
Resolution and units:
lb oz (0.25 oz), lb (0.1 lb), oz (0.3 oz),
kg g (10 g), kg (0.1 kg), g (10 g)
Temperature coefficient: 0.1 x (specified accuracy) per °F
Wireless range: 1000 feet (305 meters) line of sight.
Obstructions affect distance.
Radio frequency: 2.4 GHz
Battery type:
Remote display: 9V, NEDA 1604, JIS 006P, IEC 6F22
Platform: 6 x AA, NEDA 15A, JIS UM3, IEC LR6
Battery life:
Remote display: 80 hours typical alkaline (backlight off)
Platform: 200 hours typical alkaline
Operating environment: 32°F to 122°F (0°C to 50°C) at <75% RH
Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH
(with battery removed)
Weight: Platform with battery 7 lbs (3190 g), Remote with battery
0.49 lbs (220 g)
Water resistant: IP54 (Platform), IP64 (Remote)
05
