SITOP PSU100S
6EP1322-2BA00 12 V / 7 A
6EP1323-2BA00 12 V / 14 A
Betriebsanleitung (kompakt)
Operating Instructions (compact)
Notice de service (compacte)
Istruzioni operative (descrizione sintetica)
Instrucciones de servicio (resumidas)

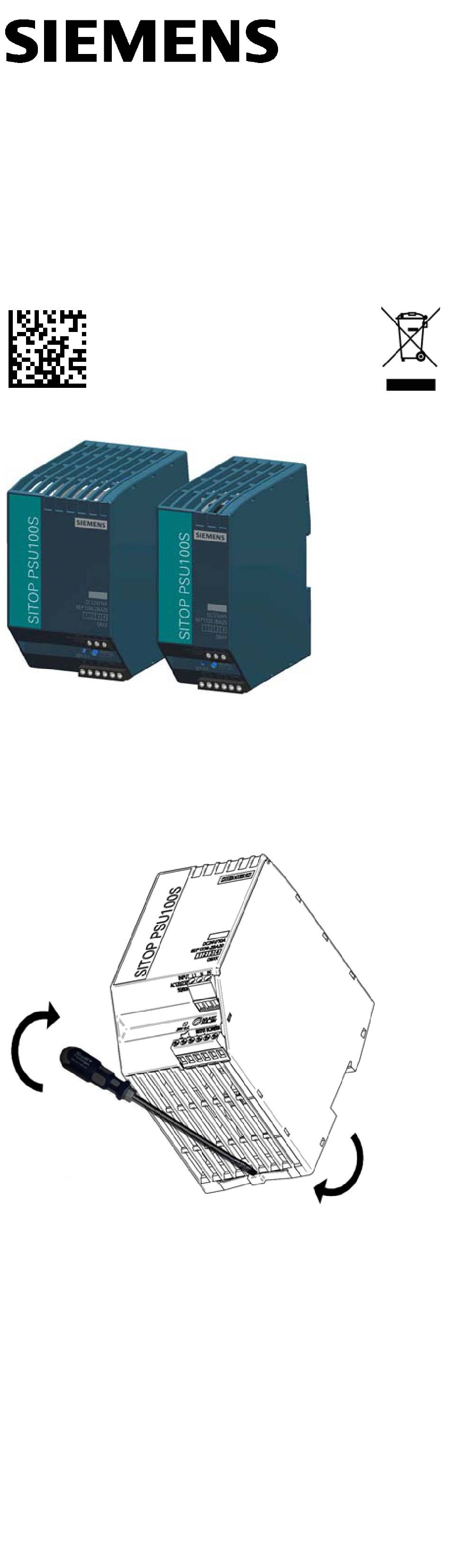

Bild 1: Ansicht Geräte
Figure 1: View of units
Figure 1: Vue des appareils
Figura 1: Vista degli apparecchi
Figura 1: Vista de aparatos
Bild 2: Montage
Figure 2: Mounting
Figure 2: Fixation
Figura 2: Montaggio
Figura 2: Montaje
© Siemens, All rights reserved Ⓟ 2013
C98130-A7619-A102-4-6419, 11.2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SITOP PSU100S and is the answer not in the manual?

Questions and answers

Related Manuals for Siemens SITOP PSU100S

Summary of Contents for Siemens SITOP PSU100S

  • Page 1 Figure 1: View of units Figure 1: Vue des appareils Figura 1: Vista degli apparecchi Figura 1: Vista de aparatos Bild 2: Montage Figure 2: Mounting Figure 2: Fixation Figura 2: Montaggio Figura 2: Montaje © Siemens, All rights reserved Ⓟ 2013 C98130-A7619-A102-4-6419, 11.2013...

  • Page 2: Safety Notes

    ENGLISH Description The PSU100S SITOP power supplies are built-in units, IP20 degree of protection, protection class I. Primary switched-mode power supplies for connection to 1-phase AC system (TN, TT system in accordance with VDE 0100 T 300 / IEC 364-3) with rated voltages of 120/230 V, 50/60 Hz;...
  • Page 3 ① Bild 3: Input ① Figure 3: Input ① Figure 3: Input ① Figura 3: Input ① Figura 3: Entradas ② ③ Bild 4: Output , Meldekontakt ② ③ Figure 4: Output , signaling contact ② ③ Figure 4: Output , contacts de signalisation ②...
  • Page 4 Assembling Mounted on a standard mounting rail DIN EN 60715-TH35-15/7,5. The device must be mounted in such a way that the input and output terminals are at the bottom. A clearance of at least 50 mm must be maintained above and below the device (max.
  • Page 5 Bild 6: Gesamtaufbau Figure 6: Overall structure Figure 6: Constitution Figura 6: Struttura completa Figura 6: Diseño general...

  • Page 6: Operating Mode

    Operating mode Signaling ⑤ LED is green: Output voltage OK Alarm signals ③ Signaling contact: Output OK Contact rating 30 V AC/0.5 A, 60 V DC/0.3 A, 30 V DC/1 A See also Figure 4 Technical data 6EP1322-2BA00 6EP1323-2BA00 12V/7A 12V/14A Input variables Rated input voltage U...

  • Page 7: Disposal Guidelines

    Function expansion possible using the additional modules redundancy module, buffer module, diagnostics module SITOP select or DC UPS www.siemens.com/sitop Disposal guidelines Packaging and packaging aids can and must always be recycled. The product itself may not be disposed of by means of domestic refuse.

This manual is also suitable for:

6ep1322-2ba006ep1323-2ba00

Table of Contents
