Quick Installation Guide
AX3000 Dual-Band Gigabit Wi-Fi 6 Router
Package contents
• Wireless router x 1
• Power adapter x 1
• Ethernet cable x 1
• Quick installation guide x 1

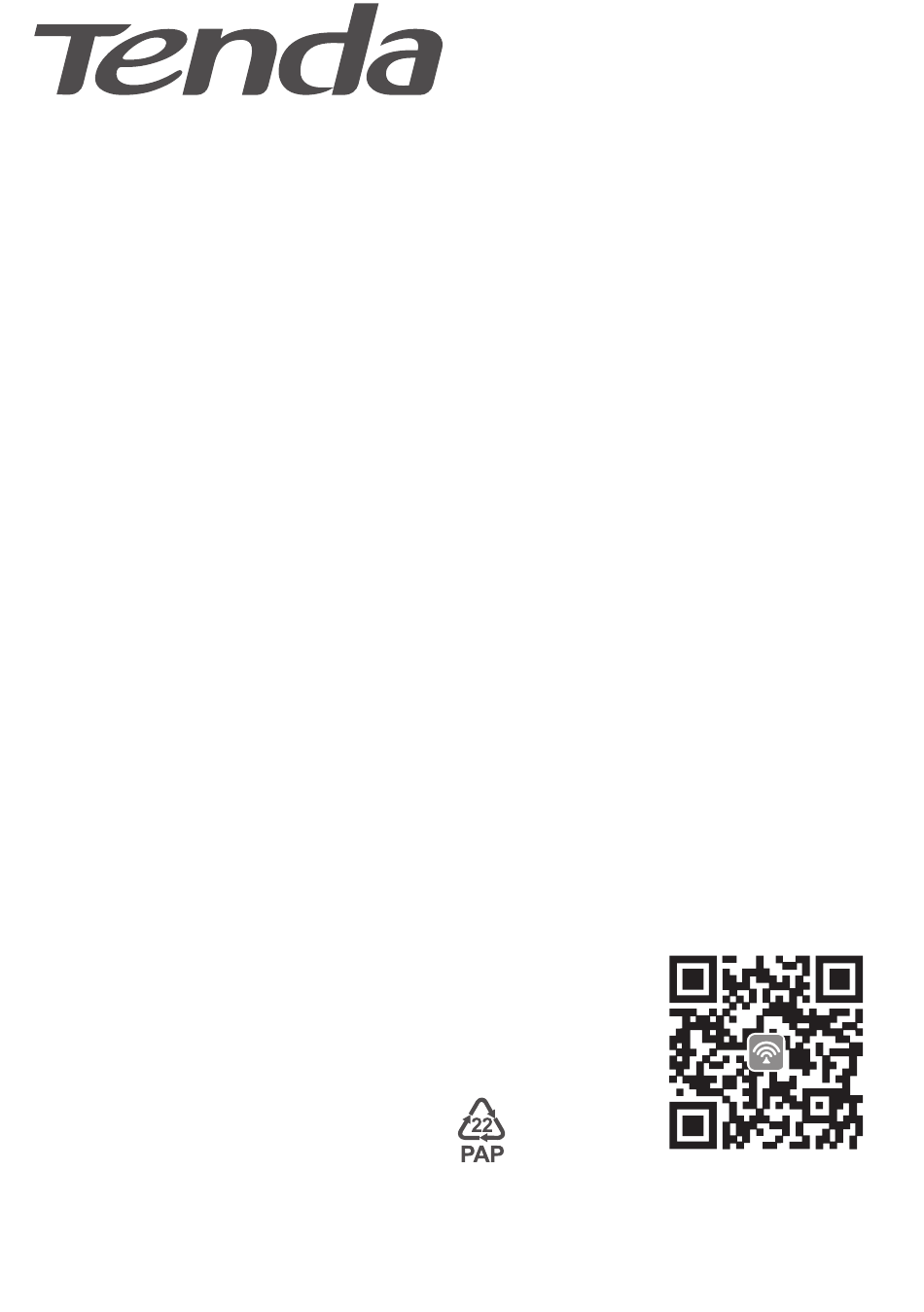

Scan QR code to download
Tenda WiFi App
For product or function details, please go to www.tendacn.com to download the user guide.
Advertisement
Related Manuals for Tenda TX9
Summary of Contents for Tenda TX9
- Page 1 • Wireless router x 1 • Power adapter x 1 • Ethernet cable x 1 • Quick installation guide x 1 Scan QR code to download Tenda WiFi App For product or function details, please go to www.tendacn.com to download the user guide.
-
Page 2: Connect The Router
I. Connect the router The "new router" and "router" in this guide refer to the router in the package. Step 1: Import your PPPoE user name and password into the new router (Optional) Tips This function is only applicable when the connection type of the original router is PPPoE, except for PPPoE of some special ISPs or PPPoE connection set up manually with VLAN information. - Page 3 Step 2: Connect the WAN port of the router 1. Ensure that the router is powered on. 2. Connect the WAN port of the router to the LAN port of your modem or the Ethernet jack using an Ethernet cable. The LED indicator blinks fast for 3 seconds.
- Page 4 II. Connect your device to the router Option A: Connect your WiFi-enabled device, such as a smartphone, to the wireless network of the router. You can find the default WiFi network information on the bottom label of the router. WiFi-enabled device Tenda_XXXXXX Setting Password...
- Page 5 III. Set up the router 1. Start a web browser on the device connected to the router, and visit tendawifi.com. Click Start. tendawifi.com Welcome Quick Setup Wizard Start Tips If the above page does not appear, refer to Q1 in FAQ.
- Page 6 2. The router detects your connection type automatically. − If you have imported your PPPoE user name and password into the router, click Next. − If you did not import your PPPoE user name and password into the router, select the ISP Type based on your region and ISP and enter required parameters (if any).
- Page 7 3. Set the WiFi name, WiFi password and Login password for the router. Click Next. WiFi Settings Tenda_XXXXXX Not Required WiFi password of 8-32 characters Set the WiFi password as the login password of the admin account. Not Required Login password of 5-32 characters Next Tips The WiFi password is used to connect to the WiFi...
- Page 8 Done. You’re all set! You can now connect to Tenda_XXXXXX or Tenda_XXXXXX_5G To change settings of other features, click the “More” button below. More...
- Page 9 To access the internet with: WiFi-enabled devices: Connect to the WiFi network using the WiFi name and password you set. Wired devices: Connect to a LAN port (1, 2 or IPTV/3) of the router using an Ethernet cable. Tips If you still cannot access the internet after the configuration, refer to Q2 in FAQ.
-
Page 10: Led Indicators
LED indicators indicator LED indicator Status Description The system is starting up, or the router is already Solid on connected to the internet. Blink slow The router is not connected to the internet. Blink fast for A device is connected to or disconnected from an LED indicator 3 seconds Ethernet port of the router. - Page 11 Jack, ports and buttons POWER WPS/RST IPTV/3 Description Jack/Port/Button Power jack. POWER Please use the included power adapter to connect this jack to a power source for power supply. Used to start the WPS negotiation process, or to reset the router. •...
- Page 12 Q1: I cannot log in to the web UI of the router by visiting tendawifi.com. What should I do? A1: Try the following solutions: • If you are using a WiFi-enabled device, such as a smartphone: − Ensure that it connects to the WiFi network of the router. −...
- Page 13 Q3: How to change the WiFi names and passwords? A3: Follow the steps below: Connect your WiFi-enabled device to the WiFi network of the router, or connect your computer to a LAN (1, 2 or IPTV/3) port using an Ethernet cable. Start a web browser and visit tendawifi.com to log in to the web UI of the router.
- Page 14 RJ45 cable. Declaration of Conformity Hereby, SHENZHEN TENDA TECHNOLOGY CO., LTD. declares that the radio equipment types RX9/TX9/RX9 Pro/TX9 Pro are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:https://www.tendacn.com/download/list-9.html...
- Page 15 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 16 Caution: Adapter Model: BN037-A18012E/BN037-A18012B/BN074-A18012E/BN074-A18012B Manufacturer : SHENZHEN HEWEISHUN NETWORK TECHNOLOGY CO., LTD. Input: 100 - 240V AC, 50/60Hz, 0.6A Output: 12V 1.5A : DC Voltage RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
- Page 17 Copyright © 2022 Shenzhen Tenda Technology Co., Ltd. All rights reserved. Tenda is a registered trademark legally held by Shenzhen Tenda Technology Co., Ltd. Other brand and product names mentioned herein are trademarks or registered trademarks of their respective holders. Specifications are subject to change without notice.
