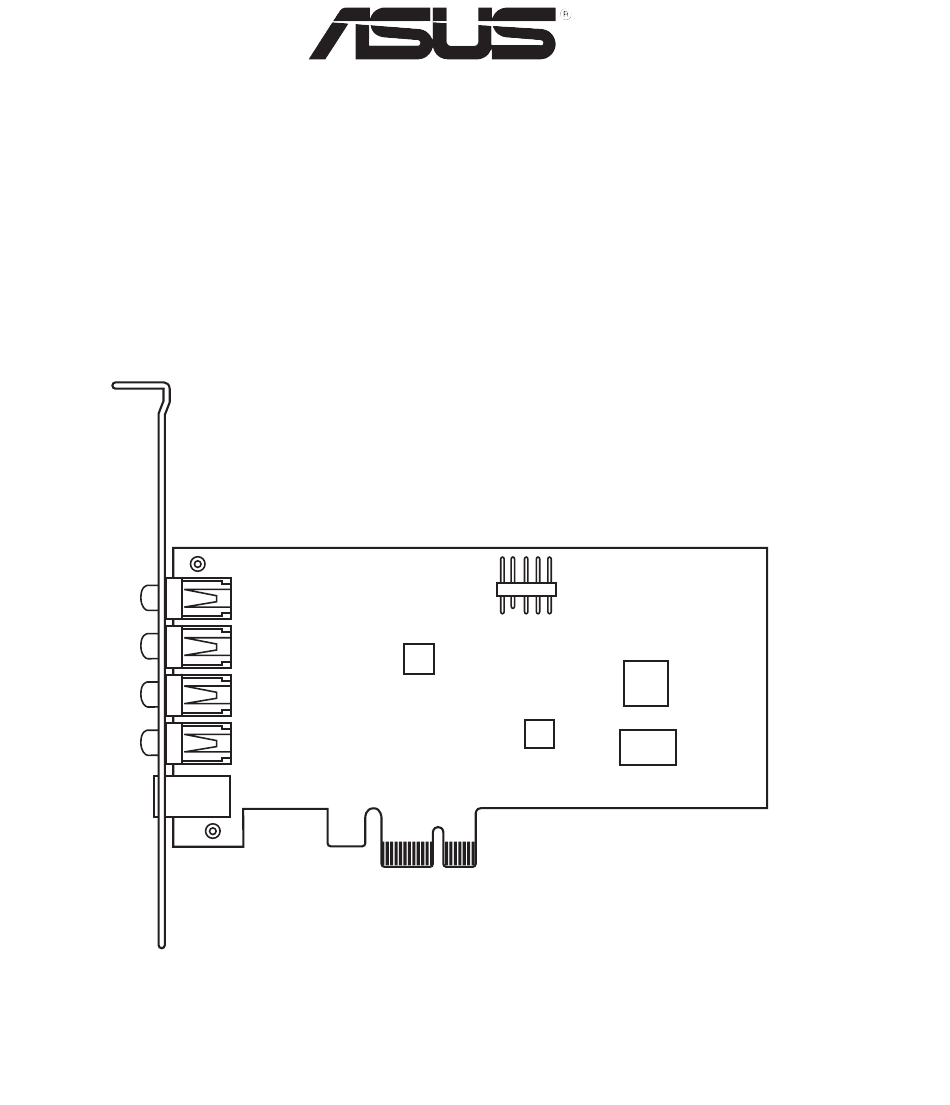

- Page 1 Xonar SE Xonar SE PCIE 5.1 & Headphone Amp Audio Card Quick Start Guide...
-
Page 2: Safety Information
Low Profile Bracket x1 • Quick Start Guide x1 System Requirements To ensure a successful installation of the the Xonar SE audio card, your computer must meet the following requirements: • One PCIE 1.0 (or higher) compatible slot for the audio card •... -
Page 3: Driver Installation
Driver Installation After installing the Xonar SE audio card into your computer, you need to install the device driver that enables the Xonar SE audio card to work with Windows operating system. IMPORTANT: Ensure that you have installed the audio card driver before installing the Xonar SE driver. -
Page 4: Connecting Digital Speaker Systems (Home Theater)
Hardware Features Connecting digital speaker systems (Home Theater) SPDIF Out Item Description Optical cable Plug your decoder’s TOSLINK optical cable into the S/ PDIF-Out connector. Connecting stereo headphones Item Description Front Out/ The Front Out jack has a built-in high-quality amplifier Headphone Jack to drive headphones. - Page 5 Connectivi Connectivity Options Connecting 5.1 channel speakers Connecting analog power amplifier Connecting analog power amplifier Item Description Front Out port Connects to the Front input port of the 5.1 speakers Item Description with the mini-jack cable. Front Out port Connects to the “left front” and “right front” input ports Side Surround Out Connects to the Surround input port of the 5.1 of the analog amplifier with the mini-jack to RCA cable.
-
Page 6: Connecting 5.1 Channel Speakers
Connecting 5.1 channel speakers Item Description Front Out port Connects to the Front input port of the 5.1 speakers with the mini-jack cable. Side Surround Out Connects to the Surround input port of the 5.1 port speakers with the mini-jack cable. Center/Subwoofer Connects to the Center/Subwoofer input port of the Out port... - Page 7 Authorised representative in United ASUSTEK (UK) LIMITED Kingdom Tel./FAX No.: +44-01442-202-700 / +44-01442-245-882 Address: 1 Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL, England, United Kingdom Authorised representative in Europe ASUS Computer GmbH Address: HARKORT STR. 21-23, 40880 RATINGEN, GERMANY...
