Samsung PM32F-BC Quick Setup Manual

Quick Setup Guide
PM32F-BC PM43F-BC
• The colour and the appearance may differ depending on the product, and the specifications are subject
to change without prior notice to improve the performance.
• Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
Checking the Components
(1) Quick Setup Guide (2) Warranty card (Not available in some locations) (3) Regulatory guide (4) Power cord
(5) Batteries (AAA X 2) (Not available in some locations) (6) USB Cable (7) Remote control (8) RS232C(IN) adapter
(9) Screw (M3L8, 1 piece) (10) Ring-type holder (4 pieces) (11) USB cover
* Use the provided Ring-type holder (HOLDER-WALL RING, BN61-14912A) to install the PM32F-BC model on the wall.
Contact the vendor where you purchased the product if any components are missing.
Components may differ in different locations.

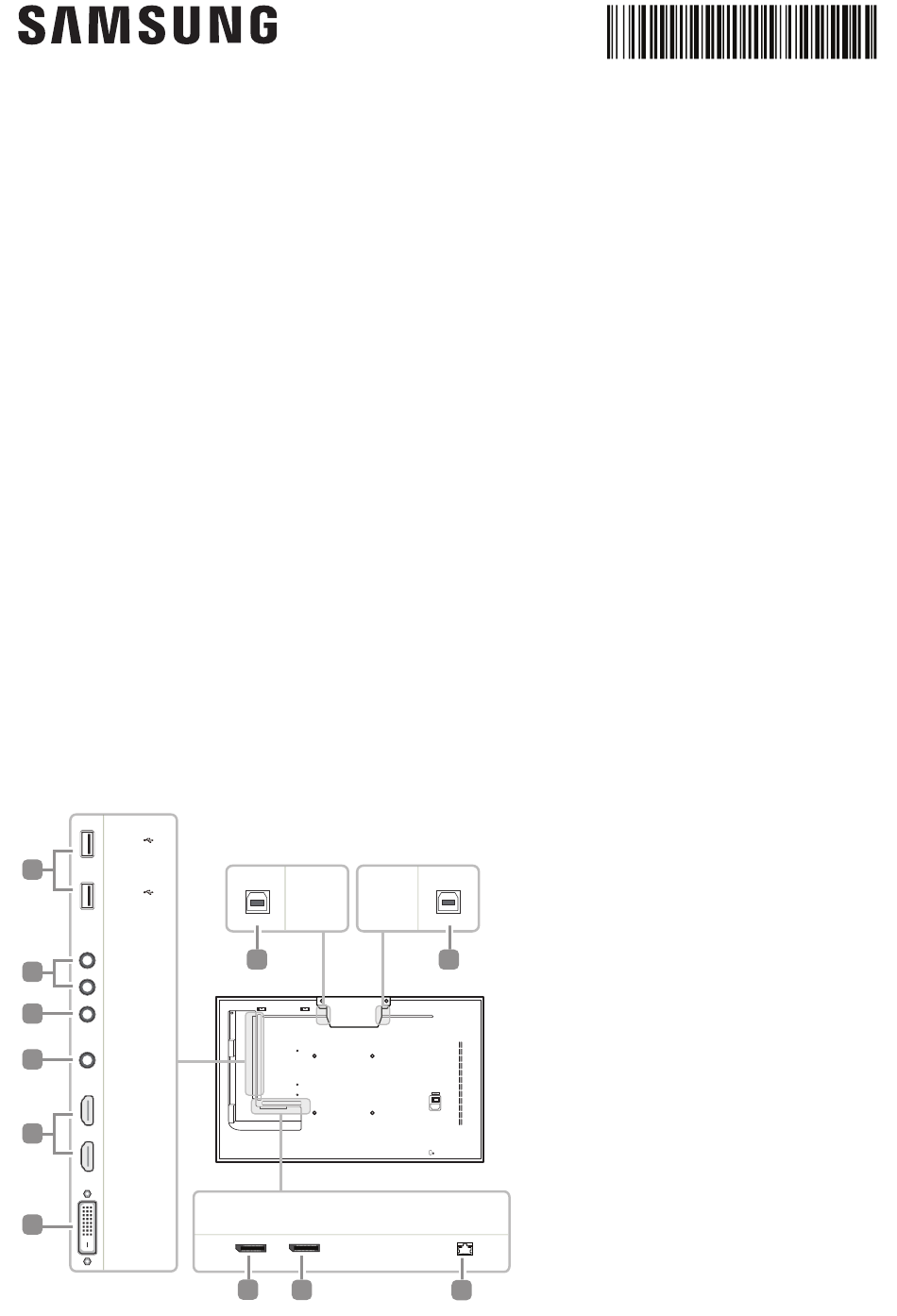

Reverse side
USB1
(1.0A)
03
USB2
(0.5A)
RS232C
IN
04
RS232C
OUT
AUDIO
05
IN
AUDIO
06
OUT
HDMI1
07
HDMI2
DVI/PC/
08
MAGICINFO IN
TOUCH OUT TOUCH OUT
SCREEN PC
01
DP IN DAISY CHAIN
09
10
01 Connect to a USB port on the product to use
the touch function.
02 Connect to a PC to use the touch function.
03 Connect to a USB memory device.
04 Connects to MDC using an RS232C adapter.
05 Receives sound from a source device via an
audio cable.
02
06 Connects to the audio of a source device.
07 Connects to a source device using an HDMI
cable.
08 DVI IN: Connects to a source device using a
DVI cable or HDMI-DVI cable.
PC IN: Use the (dedicated) D-SUB - DVI cable
(or D-SUB cable with D-SUB to DVI adapter)
when connecting a PC.
MAGICINFO IN: Use the (dedicated) DP-DVI
cable when connecting a network box (sold
separately).
09 Connects to a source device using a DP cable.
RJ45
10 Connects to another product using a daisy
chain (DP port) cable.
11 11 Connects to MDC using a LAN cable.
