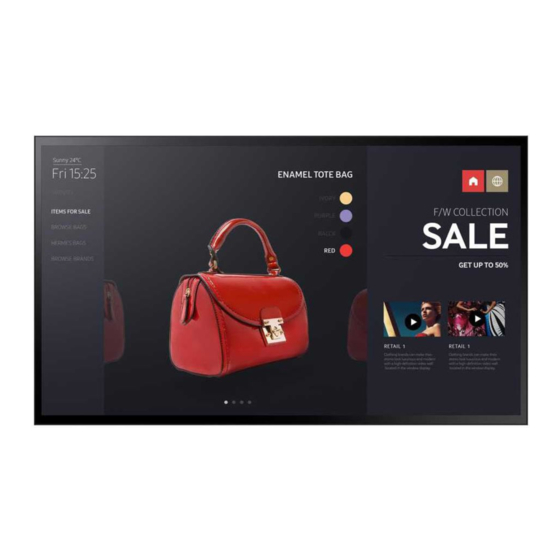

Samsung PM32F-BC Quick Setup Manual

Quick Setup Guide
PM32F-BC PM43F-BC
* The colour and the appearance may differ depending on the product, and the specifications are subject
to change without prior notice to improve the performance.
* Recommended hours of use per day for the PM32F-BC model is less than 16 hours.
If the product is used for longer than 16 hours a day, the warranty may be void.
* Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
Checking the Components
Contact the vendor where you purchased the product if any components are missing.
Quick Setup Guide Warranty card (Not available in some
locations)
USB cable Remote Control
Ring-type holder* x 4 USB cover
* Use the provided Ring-type holder (HOLDER-WALL RING, BN61-14912A) to install the PM32F-BC model on the wall.
BN68-08926D-01
Power cord Batteries (Not available in some locations)
RS232C(IN) adapter Screw ((M3 x L8) x 1)
Reverse Side
TOUCH OUT
SCREEN
1
3 4 5 6 7
1 Connect to a USB port on the product to use the touch function.
2 Connect to a PC to use the touch function.
3 Connect to a USB memory device.
Connects to MDC using an RS232C adapter.
4
Receives sound from a source device via an audio cable.
5
Connects to the audio of a source device.
6
Connects to a source device using an HDMI cable.
7
Troubleshooting Guide
Issues Solutions
The screen keeps switching Check the cable connection between the product
on and off. and PC, and ensure the connection is secure.
Check that the product is connected correctly with
a cable.
No Signal is displayed on the
screen.
Check that the device connected to the product is
powered on.
This message is displayed when a signal from the
graphics card exceeds the product's maximum
resolution and frequency.
Not Optimum Mode is
displayed.
Refer to the Standard Signal Mode Table and set
the maximum resolution and frequency according
to the product specifications.
The images on the screen
Check the cable connection to the product.
look distorted.
Adjust Coarse and Fine.
Remove any accessories (video extension cable,
The screen is not clear.
etc) and try again.
The screen is blurry.
Set the resolution and frequency to the
recommended level.
Check that the resolution and frequency of the
The screen appears unstable
PC and graphics card are set within a range
and shaky.
compatible with the product. Then, change the
screen settings if required by referring to the
There are shadows or ghost
Additional Information on the product menu and
images left on the screen.
the Standard Signal Mode Table.
TOUCH OUT
PC
2
DP IN DAISY CHAIN
8 9 10
8 DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.
PC IN: Use the (dedicated) D-SUB - DVI cable (or D-SUB cable with D-SUB to DVI
adapter) when connecting a PC.
MAGICINFO IN: Use the (dedicated) DP-DVI cable when connecting a network box
(sold separately).
Connects to a source device using a DP cable.
9
Connects to another product using a daisy chain (DP port) cable.
10
Connects to MDC using a LAN cable.
11
Issues
The screen is too bright.
Adjust Brightness and Contrast.
The screen is too dark.
Screen color is inconsistent. Go to Picture and adjust the Color Space settings.
White does not really look
Go to Picture and adjust the White Balance settings.
white.
Check the connection of the audio cable or adjust
the volume.
There is no sound.
Check the volume.
Adjust the volume.
If the volume is still low after turning it up to the
The volume is too low.
maximum level, adjust the volume on your PC
sound card or software program.
Make sure that the batteries are correctly in place
(+/-).
Check if the batteries are flat.
The remote control does not
Check for power failure.
work.
Make sure that the power cord is connected.
Check for any special lighting or neon signs
switched on in the vicinity.
RJ45
11
Solutions
