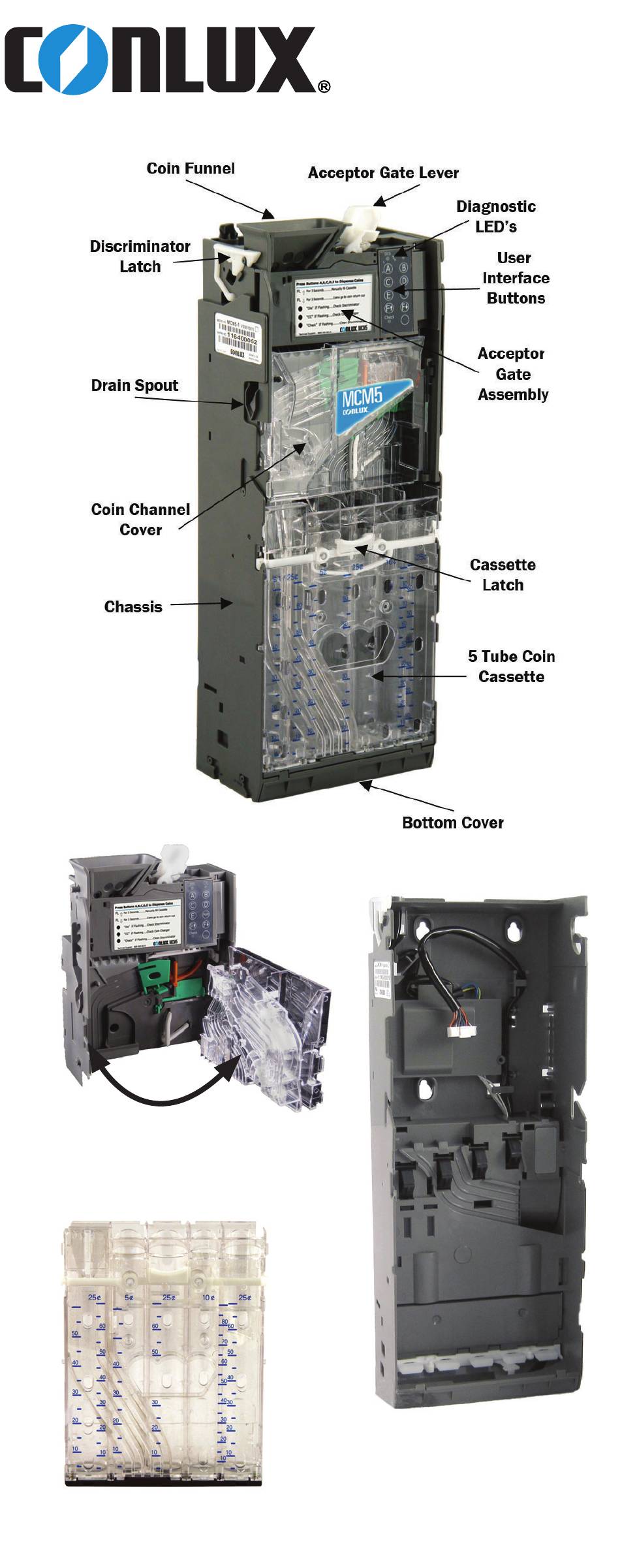

- Page 1 MCM5 Installation Guide Discriminator Coin Dispenser Coin Cassette Pocket Installation Guide P/N 255058005...
- Page 2 INTERFACE MEI Conlux MCM5 coin changer operates in machines that support the MDB interface*. The operating voltage of a MEI Conlux coin mechanism is stated on the label of each product. The label is located on the left side of the coin mechanism.
-
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS Before you begin... •Remove the coin mechanism from the packaging material. Inspect unit for physical damage. You need these tools: Phillips screw driver Wire Tie wraps Wire cutters Wire Tie wrap adhesive anchors •Turn the power supply to the vending machine. •Lift up on the White lever on the top left side of the coin mechanism... - Page 4 CURRENCY SWITCH (Located on the back of the Discriminator Unit.) Switch Number Function #1 USA On/Off On - Accept United States Coins #2 Canada On/Off On - Accept Canadian Coins #3 Token On/Off On - Accept Tokens #4 Float High/Low Set Float either High ($52.00) or Low ($34.00) ALIGNMENT...
- Page 5 COIN CASSETTE The coin mechanism can be ordered with one of two cassette configurations for both the USA and Canada. The USA and CANADA use the same cassettes. • Remove cassette by using your thumb to depress the white latch and tilt the cassette forwards and lift upwards as shown.
-
Page 6: Diagnostic Leds
Interface Buttons Check Light LED TOKEN TEACH The Conlux MCM5 will accept tokens when the Token DIP Switch is placed in the position. The Token teach mode is entered by pressing the Mode and B button simultaneously for longer than 2 seconds. When this mode is entered, the C/C LED will flash rapidly. - Page 7 The C/C light will flash rapidly. Tube D – 10¢ 40 coins = $ 4 • Place the filled cassette back into the MCM5. The C/C light will continue to flash rapidly, then flash 3 times Tube E – 25¢ 32 coins = $ 8 slowly and return to steady .
- Page 8 (3) seconds. The C/C light will flash rapidly. • Place the filled cassette back into the MCM5. The C/C light will continue to flash rapidly, then flash 3 times slowly and return to steady . You have sucessfully set the Float/Par.
