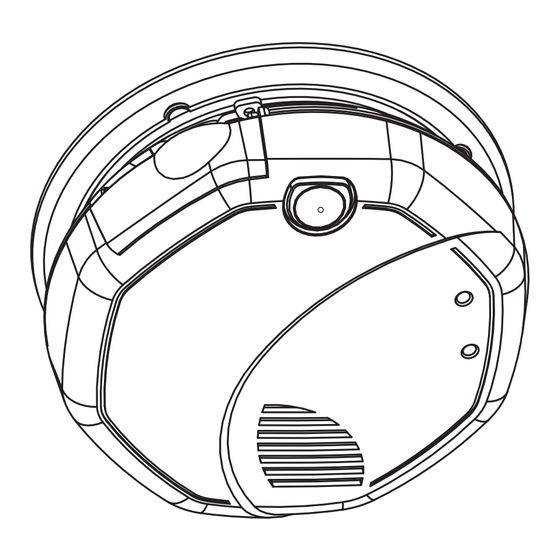

First Alert SC7010BVA User Manual

USER'S MANUAL
SMOKE & CARBON
MONOXIDE ALARM
AC Powered Smoke &
Carbon Monoxide Alarm
with Voice and Location
120V AC with 2 1.5 V
Alkaline AA battery
back-up 0.09 Amps
IMPORTANT! PLEASE READ CAREFULLY AND SAVE
This user's manual contains important information about your Alarm's
operation. If you are installing the Alarm for use by others, you must
leave this manual — or a copy of it — with the end user.
Printed in Mexico
M08-172413 K1 04/20
© 2020 BRK Brands, Inc. All rights reserved.
Brands, Inc. Aurora, IL 60504
Newell Brands Inc. (NASDAQ: NWL)
(800) 323-9005
All BRK and First Alert
®
requirements, including ULC STD S531 and are designed to
detect particles of combustion. Smoke particles of varying
number and size are produced in all fires.
Ionization technology is generally more sensitive than photo-
electric technology at detecting small particles, which tend
to be produced in greater amounts by flaming fires, which
consume combustible materials rapidly and spread quickly.
Sources of these fires may include paper burning in a
wastebasket, or a grease fire in the kitchen.
Photoelectric technology is generally more sensitive than
ionization technology at detecting large particles, which tend
to be produced in greater amounts by smoldering fires, which
may smolder for hours before bursting into flame. Sources
of these fires may include cigarettes burning in couches or
bedding.
For maximum protection, use both types of Smoke Alarms on
each level and in every bedroom of your home.
INTRODUCTION
Thank you for choosing First Alert
Monoxide Alarm needs. You have purchased a state-of-the-art
Smoke & Carbon Monoxide Alarm designed to provide you with early
warning of a fire or Carbon Monoxide. Key features include:
Smoke & Carbon Monoxide Combination Alarm. One
alarm protects against two deadly household threats.
Exclusive Voice Warning with Location will tell you the preprogrammed
location of the initiating unit and danger detected. Programmable up
to 11 locations (ex. "basement"). When alarms sounds, if programmed
for basement it will say "Warning, evacuate, smoke in basement".
Spread Spectrum Horn Tone. Lower and varying horn frequency
makes it easier for elderly with normal age related hearing loss
to hear horn. Sweeps through the 2200 – 3400 Hz range.
Smart Interconnect can be interconnected to BRK Smoke, CO, and Heat
Alarms. One interconnect wire carries both smoke and CO alarm signals.
Optipath 360 Technology
of direct access to the smoke sensor.
Single Button Test/Silence eliminates confusion. Depending on
what mode the alarm is in, pushing the button provides different
functions such as testing the alarm, silencing the alarm, re-testing
the alarm when in silence and clearing the Latching features.
Two Silence Features. Temporarily silence low battery
chirp for up to eight hours before replacing low battery
or silence an unwanted alarm for several minutes.
Two Latching Features. Alarm Latch: Easily identifies initiating
alarm even after alarm condition has subsided. Low Battery
Latch: Identifies which unit is in low battery condition.
Perfect Mount System includes a gasketless base for easy installation
and a mounting bracket that keeps the alarm secure over a wide
rotation range to allow for perfect alignment.
Dust Cover is included to keep the alarm clean during construction.
Easy Installation/Maintenance features include a large opening in
the mounting bracket for easy access to wiring. A battery pull
tab that keeps the battery fresh until the home is occupied. A
Side Load Battery Drawer allows for easy battery replacement
without removing the alarm from the ceiling or wall.
End of Life Signal. Provides audible confirmation
alarm needs to be replaced.
Improved UV Resistance keeps the alarm from discoloring over time.
ELECTRICAL SHOCK HAZARD. Turn off the power to the area
where the Smoke Alarm is installed before removing it from the
mounting bracket. Failure to turn off the power first may result in
serious electrical shock, injury or death.
• This unit will not alert hearing impaired residents. It is
recommended that you install special units which use
devices like flashing strobe lights to alert hearing impaired
residents.
• Installation of this unit must conform to the Canadian
Electrical Code and any other local or building codes that
may apply. Wiring and installation must be performed
by a licensed electrician. Failure to follow these
guidelines may result in injury or property damage.
• This unit must be powered by a 24-hour, 120VAC pure
sine wave 60Hz circuit. Be sure the circuit cannot be
turned off by a switch, dimmer, or ground fault circuit
interrupter. Failure to connect this unit to a 24-hour circuit
may prevent it from providing constant protection.
• This Alarm must have AC or battery power to operate.
If the AC power fails, battery back-up will allow the
alarm to sound for at least 4 minutes. If AC power
fails and the battery is weak, protection should last
for at least 7 days. If AC power fails and the battery
is dead or missing, the alarm cannot operate.
• Never disconnect the power from an AC powered unit to
stop an unwanted alarm. Doing so will disable the unit and
remove your protection. In the case of a true unwanted
alarm open a window or fan the smoke away from the
unit. The alarm will reset automatically when it returns to
normal operation. Never remove the batteries from a battery
operated unit to stop an unwanted alarm (caused by cooking
smoke, etc.). Instead open a window or fan the smoke
away from the unit. The alarm will reset automatically.
• Connect this unit ONLY to other compatible units. See "How
To Install This Smoke Alarm" for details. Do not connect it to
any other type of alarm or auxiliary device. Connecting
anything else to this unit may damage it or prevent it from
operating properly.
• This Smoke/CO Alarm has a battery drawer which resists
closing unless a battery is installed. This warns you the
unit will not operate under DC power without a battery.
• Do not stand too close to the unit when the alarm is
sounding. It is loud to wake you in an emergency. Exposure
to the horn at close range may harm your hearing.
• Do not paint over the unit. Paint may clog
the openings to the sensing chambers and
prevent the unit from operating properly.
• "This carbon monoxide alarming device is designed to detect
carbon monoxide gas from ANY source of combustion. It is
NOT designed to detect smoke, fire, or any other gases".
BRK Brands, Inc. is a subsidiary of
•
www.firstalert.ca
•
Smoke Alarms conform to regulatory
®
™ provides 360 degrees
CERTIFIED TO
ULC STD S531 &
CSA STD 6.19-06
Distributed by BRK
•
Customer Service Team:
•
www.brkcanada.ca
•
for your Smoke and Carbon
®
Model
SC7010BVA
