ATTENTION! Do not u
ATTENTION! Do not use the machine before you have read and understood the Instructions for Use Manual.

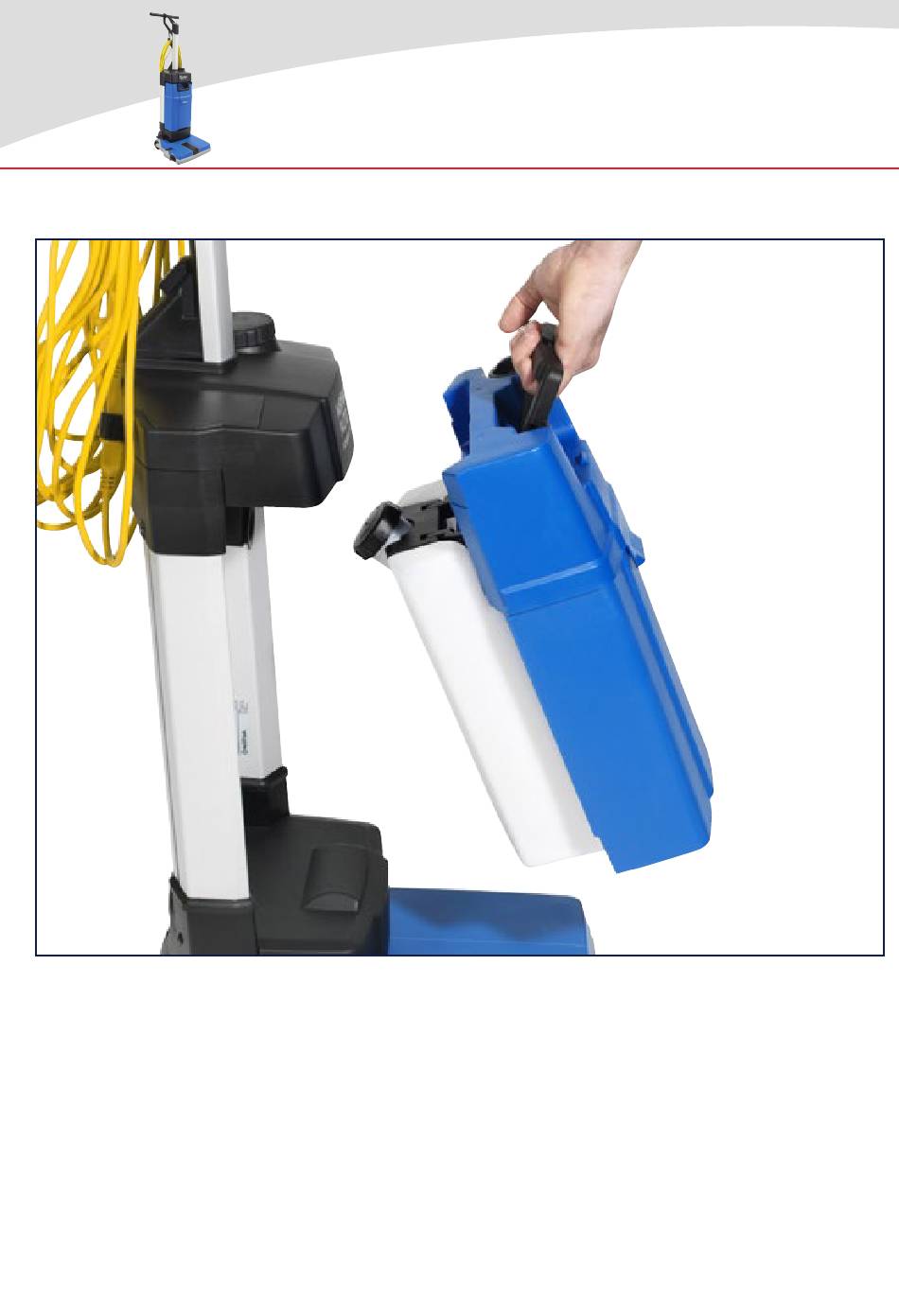

1. Release the handle to remove the
tank assembly.
7. Press the start/stop switch to start
the machine.
11. To use the manual suction hose,
press the power switch to start the
machine in upright position. Turn the
hose connection to ON and use the
suction tube. When done, turn hose
connection to OFF. (**)
1. Release the handle to remove the
tank assembly.
16. Remove the cylindrical brush by
turning the side knob clockwise.
(*)
ALWAYS FOLLOW THE DETERGENT DOSING RECOMMENDATION ON THE LABEL OF THE CHEMICAL PRODUCT USED.
(**) THE MANUAL SUCTION HOSE IS AN OPTIONAL ACCESSORY.
9435 Winnetka Avenue North
•
Brooklyn Park, MN 55445
Phone: 800.253.0367
•
Fax: 800.825.2753
240 Superior Boulevard
•
Mississauga, Ontario, Canada L5T 2L2
Phone: 800.668.8400
•
Fax: 800.263.5111
2. Fill the solution tank with clean
water, not to exceed 100° F.
8. Press the solution switch to start
the solution flow.
When finished using
12. Park the machine in the upright
position and turn off the power
switch.
17. Remove the squeegee bars.
Operating Guidelines
3. The tank cap can be used for
dosing the detergent. One full cap
is 30 ml giving 1% detergent of the
0.8 gal (3 L) tank capacity. (*)
9. Move the machine with the handle
and start cleaning the floor.
13. Disconnect the power plug from
the electrical socket and rewind
the cord, starting at the machine,
and place it in the cord holder.
18. Clean the squeegee bars and
the cylindrical brush with water.
Check for wear and replace
when necessary.
MA10
4. Connect the power plug to an
electrical socket.
6. For double scrubbing, flip the
pedal to lift/lower squeegees.
14. Empty the recovery and solution
tank. Clean them with water.
19. Wipe down the machine using a
damp cloth, and where needed
use a neutral cleaning product.
Then store the machine in a clean
and dry place.
12E
™
5. Press the black pedal to put the
machine in working position.
10. When necessary, empty the
recovery tank and refill the
solution tank to continue working.
15. Check and clean the solution and
vacuum filter regularly.
Advertisement
Related Manuals for Clarke MA10 12E
Summary of Contents for Clarke MA10 12E
- Page 1 Operating Guidelines ATTENTION! Do not u MA10 ™ ATTENTION! Do not use the machine before you have read and understood the Instructions for Use Manual. 1. Release the handle to remove the 2. Fill the solution tank with clean 3. The tank cap can be used for 4.
- Page 2 2. Fill the solution tank with clean water, not to exceed 100° F.
- Page 3 3. The tank cap can be used for dosing the detergent. One full cap is 30 ml giving 1% detergent of the 0.8 gal (3 L) tank capacity. (*)
- Page 4 4. Connect the power plug to an electrical socket.
- Page 5 5. Press the black pedal to put the machine in working position.
- Page 6 7. Press the start/stop switch to start the machine.
- Page 7 8. Press the solution switch to start the solution flow.
- Page 8 9. Move the machine with the handle and start cleaning the floor.
- Page 9 6. For double scrubbing, flip the pedal to lift/lower squeegees.
- Page 10 10. When necessary, empty the recovery tank and refill the solution tank to continue working.
- Page 11 11. To use the manual suction hose, press the power switch to start the machine in upright position. Turn the hose connection to ON and use the suction tube. When done, turn hose connection to OFF. (**)
- Page 12 When finished using 12. Park the machine in the upright position and turn off the power switch.
- Page 13 13. Disconnect the power plug from the electrical socket and rewind the cord, starting at the machine, and place it in the cord holder.
- Page 14 14. Empty the recovery and solution tank. Clean them with water.
- Page 15 15. Check and clean the solution and vacuum filter regularly.
- Page 16 16. Remove the cylindrical brush by turning the side knob clockwise.
- Page 17 17. Remove the squeegee bars.
- Page 18 18. Clean the squeegee bars and the cylindrical brush with water. Check for wear and replace when necessary.
- Page 19 19. Wipe down the machine using a damp cloth, and where needed use a neutral cleaning product. Then store the machine in a clean and dry place.
- Page 20 The machine as it should? (*) For these causes the maintenance procedure must be performed by an authorized Clarke Service Center. doesn’t work 1. Check if the power supply cord is 2. The switches are broken. (*) For further information refer to the damaged, faulty or disconnected Service Manual.
- Page 21 1. Check if the power supply cord is damaged, faulty or disconnected from the electrical mains.
- Page 22 Instructio 2. The switches are broken. (*) (*) For these causes the maintenance procedure must be performed by an authorized Clarke Service Center. For further information refer to the Service Manual.
- Page 23 The suction doesn’t work as it should?
- Page 24 1. If applicable, check if the manual suction hose connection is turned to “OFF”.
- Page 25 2. Check if the recovery tank is full.
- Page 26 3. Check if the squeegee bars are dirty or the blades are worn or damaged.
- Page 27 4. Check if the inspection compartment is dirty. Check if the recovery vacuum hose is disconnected or dirty.
- Page 28 The machine doesn’t clean as it should?
- Page 29 1. Check if you have pressed the solution switch or the solution tank is empty.
- Page 30 2. Check if the solution filter is dirty. Clean it if needed.
- Page 31 3. Check if the holes in solution dispensers are clogged. Remove them and clean if needed.
- Page 32 The brush doesn’t work as it should?
- Page 33 Operating Guidelines MA10 ™ ATTENTION! Do not use the machine before you have read and understood the Instructions for Use Manual. 1. Release the handle to remove the 2. Fill the solution tank with clean 3. The tank cap can be used for 4.
