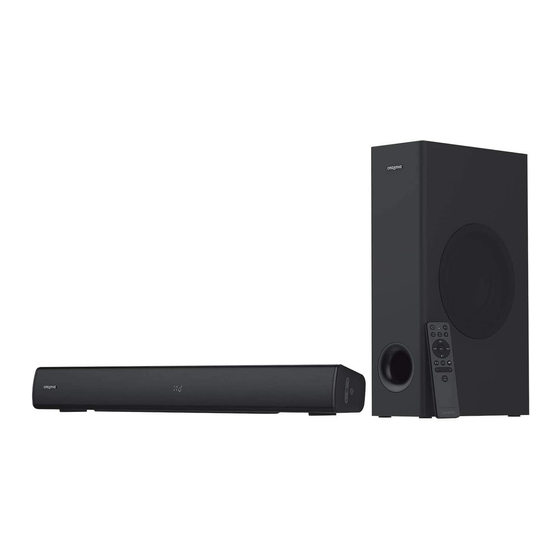

- Page 1 STAGE 2.1 Soundbar with Clear Dialog and Surround Audio Processing Quick Start Guide 使用产品前请阅读使用说明 Model No. / 型號 / 型号: MF8375 PN: 03MF837500000 Rev C...
- Page 2 1. Overview USB-C Port Optical-in Port TV (ARC) Port To Subwoofer AUX-in AC IN Wall Mount Brackets Volume + Button Power Button Volume - Button Subwoofer LED Display LED Indicator Bluetooth Button ® 2. IR Remote Control Power Button Previous Track Button Press and hold 2s to power off soundbar Press once to return to previous track (Applicable in USB and Bluetooth modes only)
-
Page 3: Surround Off
3. Source Selection and Display – AUX-in – Bluetooth Mode – Optical-in – TV (ARC) Mode – USB Audio Mode – Standby Press the respective buttons on the provided IR remote control to select preferred audio source. – Clear Dialog On –... -
Page 4: Bluetooth Pairing Mode
Press and hold the Bluetooth button on either the soundbar or IR remote control for 2s to enter Bluetooth Pairing mode. Built-in LED will start blinking in blue. Select “Stage V2” from the list of discovered Bluetooth devices to pair. Once paired with a device, soundbar’s LED will remain blue in static state. - Page 5 5. TV (ARC) / Optical / AUX Connectivity i) USB-C to USB-A Cable iv) Optical Cable 1. TV Audio Output: Optical ii) TV (ARC) Cable 2. Digital Audio format: PCM 1. TV Audio Output: ARC 2. Digital Audio format: PCM iii) AUX Cable Not included.
- Page 6 6. Wall Mount 560 mm / 22.05” i) Wall Mount Brackets 3.5–4 mm 4 mm ii) Screw into wall > 43 mm WARNING Screws are optional and not included. To prevent injury, this apparatus must be Select corresponding screws that match securely attached to the wall in accordance the dimensions provided in this manual with the installation instructions...
-
Page 7: Technical Specification
Frequency Response: 55–20,000 Hz SNR: ≥ 75 dB Operating Temperature Range: 0–45ºC Other Information Please visit creative.com/compliance/Stagev2 for the user guide, safety and regulatory information, and ErP information where applicable. Please visit creative.com/support/Stagev2 for all other support related to your product. 【EN】... -
Page 8: Register Your Product
Ltd in the United States and/or other countries. The Bluetooth® word mark and logo are owned by the Bluetooth SIG, Inc. and any use of such marks by Creative Technology Ltd is under license. All other trademarks are the property of their respective owners and are hereby recognized as such.
