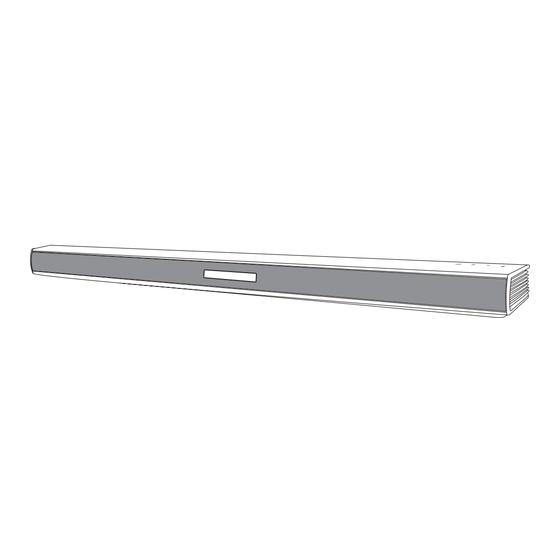

SIMPLE MANUAL
Wireless
Sound Bar
Please read this manual carefully before operating your set
and retain it for future reference.
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner's Manual.
Some of the content in this manual may differ from your unit.
MODEL
SH4D
www.lg.com
*MFL70241008*
Copyright © 2017 LG Electronics Inc. All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SH4D and is the answer not in the manual?

Questions and answers

Related Manuals for LG SH4D

Summary of Contents for LG SH4D

  • Page 1 To view the instructions of advanced features, visit http://www.lg.com and then download Owner's Manual. Some of the content in this manual may differ from your unit. MODEL SH4D www.lg.com *MFL70241008* Copyright © 2017 LG Electronics Inc. All Rights Reserved.

  • Page 2: Rear Panel

    Front Panel Front Panel Place the wi The buttons are located on the rear. The buttons are located on the rear. follow steps Connec and sou Turn on The sou automa · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·Standby / On green L ·...

  • Page 3: Subwoofer Connection

    Subwoofer Connection Place the wireless subwoofer near the speaker and follow steps below. Connect the power cord of wireless subwoofer and sound bar to the outlet. Turn on the main unit : The sound bar and wireless subwoofer will be automatically connected.
  • Page 4 TV Connection Connect the sound bar to the TV using Optical cable. Set up [External Speaker (Optical)] on your TV setting menu. Additional Device Connection Connect to the external device as follows. (Set-top Box, Player etc.) Set the input source by pressing F on the remote control or unit repeatedly.

  • Page 5: Remote Control

    Remote control Selects the sound effect. ASC/STANDARD/CINEMA: Turns down the volume at night. NIGHT ON/OFF: Adjusts the volume level of WOOFER LEVEL +/-: subwoofer. Automatically turns on by an AUTO POWER ON/OFF: input source. Replacement of battery...

  • Page 6: Additional Information

    Additional Information Specification Refer to the main label. Power Networked standby : 0.5 W consumption (If all network ports are activated.) y Model : DA-38A25 y Manufacturer : Asian Power Devices Inc. y Input : AC adapter 100 - 240 V ~ 50 - 60 Hz 1.2 A y Output : 25 V 0 1.52 A Approx.
  • Page 7 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’...
  • Page 8 This device is equipped with a portable battery or accumulator. How to Safely remove the battery or the battery pack from the equipment: To remove the old battery or battery pack, follow the assembly steps in reverse order. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated...
  • Page 9 4. For more detailed information about disposal of your old batteries/ accumulators, please contact your city office, waste disposal service or the shop where you purchased the product. (http://www.lg.com/global/ sustainability/environment/take-back-recycling/ global-network-europe)

  • Page 10: Declaration Of Conformity

    Declaration of Conformity Hereby, LG Electronics declares that the radio equipment type Wireless Sound Bar is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.lg.com/global/support/cedoc/cedoc# For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
  • Page 11 2. The dealer (or his service agent) who sold the product will be reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from the original date of purchase. These claims must be made in accordance with the published scale of service charges and relevant claims procedure.
