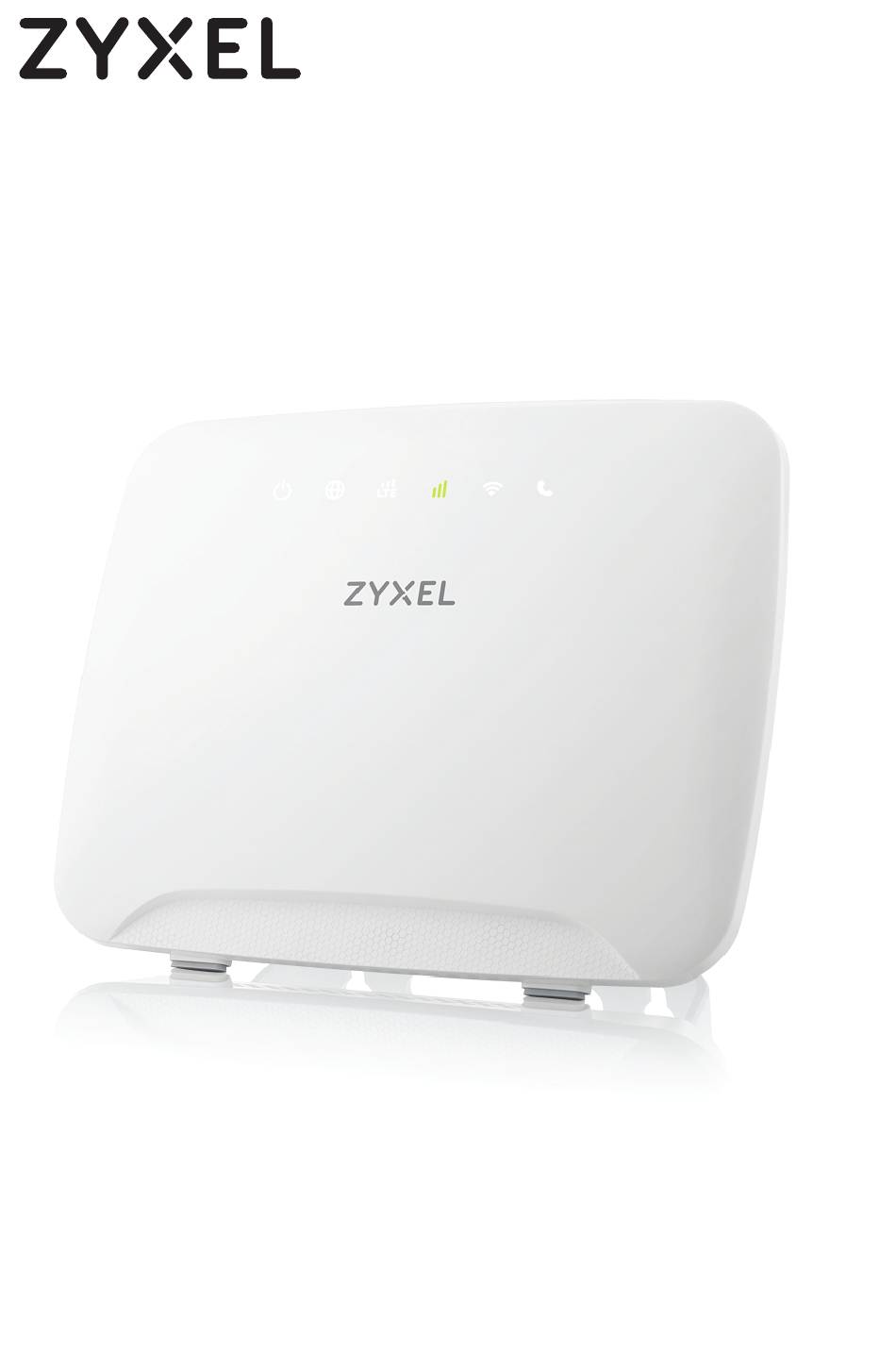

- Page 1 LTE3316 Series 4G LTE-A Indoor IAD Quick Start Guide ENGLISH | DEUTSCH | ESPAÑOL | FRANÇAIS...
-
Page 2: Package Contents
Package Contents Device Ethernet Cable Power Cable Declaration of Conformity Safety Warning Warranty Card * Do not wall-mount this device over the height of 2 m. -
Page 3: Hardware Installation
Hardware Installation *Insert a Micro SIM card into the slot with the chip facing down and the beveled corner in the top left corner. Check that the LTE3316 is turned off. Insert your SIM card (Micro-SIM card) to the SIM card slot for LTE network access as shown, and put the cover back in place after the installation. - Page 4 POWER RESET POWER DC IN LAN1/WAN LAN2 LAN3 LAN4 PHONE *Please see the last page for more information about LEDs. On - Power on Blinking - Starting up Power Use the included power adaptor to connect the power socket to a power outlet. Press the POWER button to turn on the LTE3316.
-
Page 5: Network Connection
Network Connection WiFi 2.4G (SSID) : Zyxel_XXXX WiFi WiFi 5G (SSID) : Zyxel_XXXX_5G Zyxel_XXXX WiFi Key : XXXXXXXXXXXXX Connect Scan the QR code on the device label to see the SSID and WiFi Key on your smartphone. within minutes WiFi setup Press for seconds... - Page 6 RESET POWER DC IN LAN1/WAN LAN2 LAN3 LAN4 PHONE Configure LTE3316 http://192.168.1.1 http://192.168.1.1 LTE3316 User Name: admin User Name admin 1234 Password: Password 1234 (default) Login Wizard Step Wizard Step 1 Step 2 Step 3 Use an Ethernet cable to connect a computer to one yellow LAN port of the LTE3316.
-
Page 7: Accessories (Optional)
Accessories (Optional) Install external antennas (not included). Turning On/Off WiFi (Optional) Press the WPS button (WiFi hot key) to enable/disable WiFi. Press for seconds Turn On WiFi On - 2.4 GHz WiFi ready WLAN On - 5 GHz WiFi ready... -
Page 8: Troubleshooting
Troubleshooting Power and Hardware Connections - Make sure the SIM card is correctly installed in the LTE3316. - Make sure the power jack is connected correctly. LTE3316 Access and Login - Make sure you are using the correct IP address. •... - Page 9 LEDs On - IP connection ready but no traffic Blinking - Transmitting IP traffic Internet On - 4G network ready Blinking (slow) - 3G network ready On - Ethernet WAN connection ready On - Good On - Fair Signal On - Poor Strength Blinking (slow) - No signal Blinking (fast) - Transmitting data via...
- Page 10 EU Importer Zyxel Communications A/S Gladsaxevej 378, 2. th. 2860 Søborg, Denmark http://www.zyxel.dk US Importer Zyxel Communications, Inc 1130 North Miller Street Anaheim, CA 92806-2001 http://www.us.zyxel.com Copyright © 2018 Zyxel Communications Corp. All Rights Reserved.
