B&G NEMESIS Installation Manual

Hide thumbs Also See for NEMESIS:

Advertisement

Table of Contents

NEMESIS™ HUB
INSTALLATION GUIDE
*988-12791-001*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEMESIS and is the answer not in the manual?

Questions and answers

Related Manuals for B&G NEMESIS

Summary of Contents for B&G NEMESIS

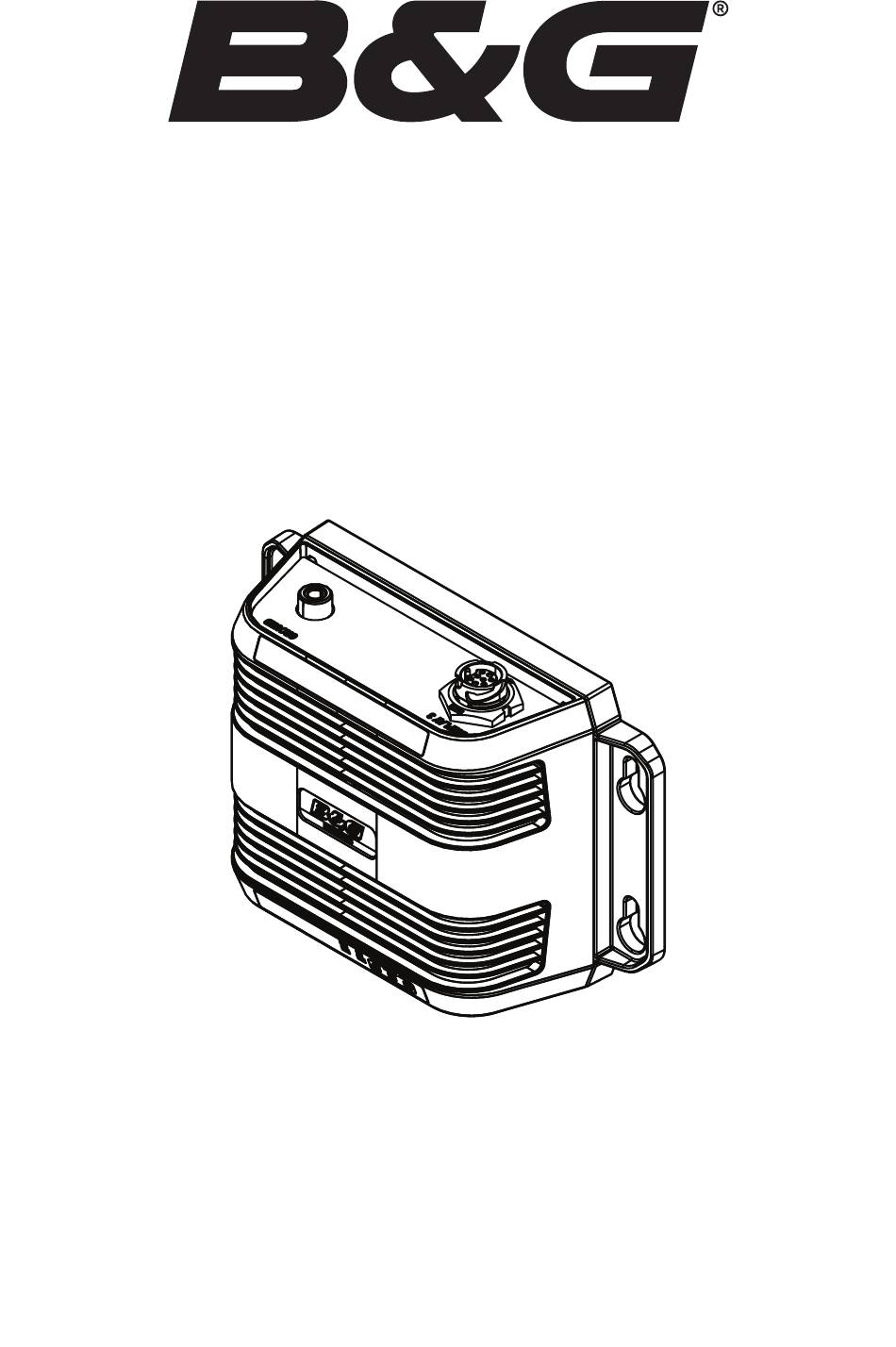

  • Page 1 NEMESIS™ HUB INSTALLATION GUIDE *988-12791-001*...
  • Page 2 Mounting...

  • Page 3: Parts Included

    Parts included A. Ethernet switch B. Fastening set C. Display connection cable D. Blanking caps (not shown in the illustration) Accessories (sold separately) A. Power and Ethernet cable B. Display connector cable...
  • Page 4 Ethernet and power wiring A. Shield B. Ethernet connector (RJ45) C. Not used, yellow D. +12/24 V DC, red E. DC negative, black Power The unit is designed to be powered by 12 or 24 V DC system. It is protected against reverse polarity, under voltage, and over voltage (for a limited duration).

  • Page 5: Connectors Overview

    Connectors overview Bottom connectors ETHERNET DISPLAY 1 DISPLAY 2 Top connectors DISPLAY 3 GROUND A. Ethernet - Power and Ethernet connection B. Display connector 1 C. Display connector 2 D. Display connector 3 E. Ground, M4...

  • Page 6: Display Wiring

    Display wiring DISPLAY A. Ethernet switch, display port 1-3 B. Display power and Ethernet cable C. Display...
  • Page 7 Grounding It is recommended to ground the unit. 1.5 mm2 (16 AWG) wire. Screw M4 (max 7 mm (0.27”))

  • Page 8: Led Indicators

    LED indicators DISPLAY A. Power (PWR) The power indicator is lit when the unit is powered. B. Ethernet (ETH) The Ethernet indicator blinks while data is transferred between the hub and the vessels Ethernet network. C. Display 1-3 The display indicators blinks while data is transferred between the hub and the connected display.
  • Page 9 Dimensional drawing 52.75 mm 151.64 mm (2.08”) (5.97”) 275.8 mm 98.61 mm (10.86”) (3.88”) 187.5 mm (7.38”)

  • Page 10: Technical Specification

    Technical specification Environmental Storage temperature -15°C to +55°C (5°F to 131°F) Operating temperatur -20°C to +60°C (4°F to 140°F) Waterproof rating IPX 6 and 7 Electrical Power supply 12/24 V DC 12/24 V DC (10 - 31.2 V DC Operating voltage min - max) 2 W + power distributed to Power consumption - Max...

  • Page 11: Compliance Statement

    Compliance statement Declarations The relevant Declaration of Conformity is available on the following websites: www.bandg.com • Europe Navico declares under our sole responsibility that the product conforms with the requirements of: CE under EMC Directive 2014/30/EU • United States of America ¼...
