Summary of Contents for LeapFrog LF915HD

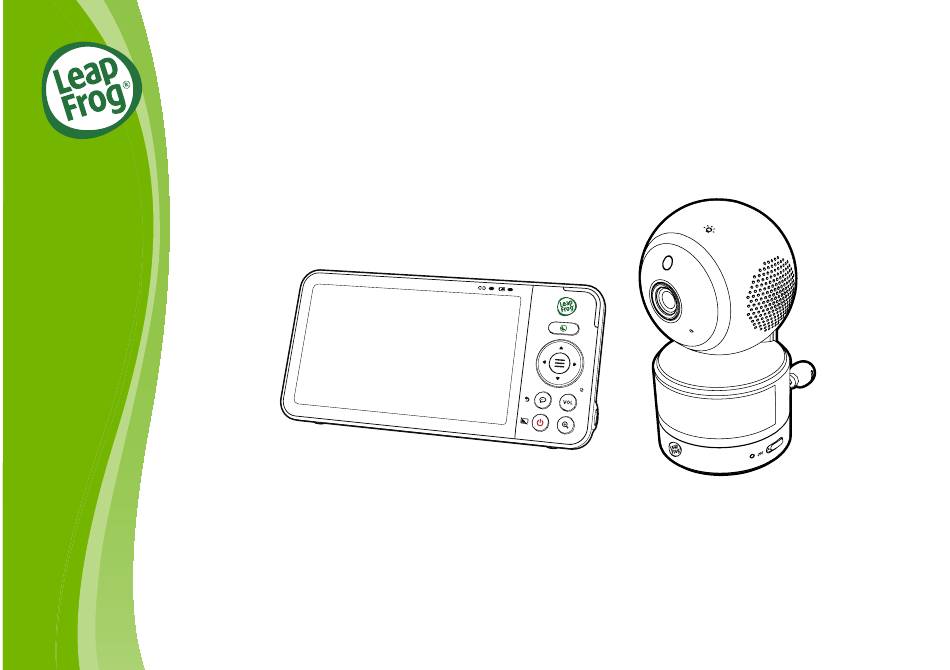

- Page 1 LF915HD 5” High Definition 5” High Definition LF915-2HD Pan & Tilt Monitor Pan & Tilt Monitor Parent Guide Need help? This guide contains important information. Visit leapfrog.com/support Please keep it for future reference.
-
Page 2: Important Safety Instructions
Important Safety Instructions The applied nameplate is located at the bottom of the Baby Unit’s base. When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. - Page 3 8. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. 9. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. 10.
- Page 4 WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using wireless devices. Electromagnetic fields (EMF) This LeapFrog product complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user’s manual, the product is safe to be used based on scientific evidence available...
-
Page 5: What's Included
What’s Included Parent Guide 1 set for LF915HD 2 sets for LF915-2HD... -
Page 6: Key Features
Key Features Color and B&W Humidity and Lullabies and Automatic Night Vision Soothing Sounds Temperature Sensor Thanks to the latest starlight Comforting and engaging your Rest assured of the environment sensor and noise suppression baby can be done easily and your baby is in with the technology, you can check in on built-in real-time temperature... -
Page 7: Get Started
Get Started 1. Connect the Baby Monitor Notes: • The rechargeable battery in the Parent Viewer is built-in. • Use only the power adapters supplied with this product. • Make sure the Parent Viewer and the Baby Unit are not connected to the switch controlled electric outlets. •... - Page 8 Charge the Parent Viewer battery before use When you connect and turn on the Parent Viewer, the battery charges automatically. Notes: • Before using the baby monitor for the first time, charge the Parent Viewer battery for 12 hours. When the Parent Viewer battery is fully charged, the battery icon becomes solid •...
- Page 9 2. Power On or Off the Baby Monitor 2. After the Parent Viewer is fully charged, 1. Slide the On/Off switch to ON to power press and hold until the welcome screen on your Baby Unit. appears. Long press 3. Status Check Once your Baby Unit and Parent Viewer are powered on, your Parent Viewer displays image from the Baby Unit, and the...
- Page 10 4. Positioning the Baby Monitor > 3ft (1m) > 3ft (1m) < 3ft (1m) Note: • To avoid interference from other electronic devices, place your baby monitor at least 3 feet (1 meter) away from devices such as wireless routers, microwaves, cell phones and computers.
- Page 11 Overview - Parent Viewer Arrow Keys Link LED light Zoom • On when the Parent Viewer Menu / Select is linked to the Baby Unit. Power / LCD Off • Flashes when the link to the Talk Return Microphone Baby Unit is lost. •...
-
Page 12: Overview - Baby Unit
Overview - Baby Unit Light sensor POWER LED Light Camera On / Off switch Infrared LEDs Temperature sensor • Position the sensor horizontally for Microphone optimal usage. Night light Power jack Night light control key Wall mount holes • Press to turn the night light on or off. PAIR / Reset key •... - Page 13 Basic Operation - Parent Viewer Adjust Parent Viewer’s speaker volume 1. Press to open the volume adjustment bar. 2. Press to increase the speaker volume to decrease the speaker volume. Talk to your baby via the Baby Unit 1. Press and hold the key.
-
Page 14: Use The Menu
Turn on/off the Parent Viewer screen You can turn on or off the Parent Viewer screen without powering off the Parent Viewer. You will still be able to hear sounds from the Baby Unit. • Press on the Parent Viewer to turn off the screen. -
Page 15: Night Light
Parent Unit Icons Main Menu Icons Monitoring mode (For LF915-2HD only) • Baby unit 1 in Single mode • Baby unit 2 in Single mode • Split mode • Patrol mode Night light • Turn On/Off night light. • Select Auto Brightness mode ( or ) •... -
Page 16: Lcd Settings
Detection (continued) Motion • Turn on/off Motion Alert. • Select motion Sensitivity level. (See Motion Detection section to learn more) Temperature • Turn on/off Temperature Alert. When you turn it on, the parent unit beeps whenever the room temperature detected by the baby unit falls outside the set temperature range. -
Page 17: Battery Level Indicator
Status Bar Icons Current view status • The Baby Unit number that is being viewed when in: - Single Baby Unit mode. - Patrol mode (* For LF915-2HD or pairing with LF920-0HD) - Split mode (* For LF915-2HD or pairing with LF920-0HD) Split mode (* For LF915-2HD or pairing with LF920-0HD) Patrol mode... - Page 18 Parent Viewer Icons (continued) Alert Icons • Displays when Parent Viewer’s battery is low and needs charging. • Displays when motion is detected by Baby Unit. • Displays when sound is detected by Baby Unit. • Displays when the temperature detected by Baby Unit exceeds the set maximum.
- Page 19 Sound Detection and Auto Wake Up Adjust Sound Detection Sensitivity You can turn on Sound Detection Alert and adjust the Baby Unit’s Sound Sensitivity to only detect your desired level of sounds. When the Baby Unit detects sounds that exceed the chosen level, the Parent Viewer screen turns on if it has been switched off or dimmed, and the Baby Unit transmits the detected sounds to the Parent Viewer.
-
Page 20: Motion Detection
Motion Detection Adjust Motion Detection Sensitivity You can turn on Motion Alert and adjust the Baby Unit’s Motion Sensitivity to only detect your desired level of motion. When the Baby Unit detects motions that exceed the chosen level, the Parent Viewer screen turns on if it has been switched off or dimmed, and the Baby Unit displays the live video feed. - Page 21 Night Vision (B&W and Color) The Baby Unit has infrared LEDs that allow Night Vision Description you to see your baby clearly at night or in a Mode dark room. When the Baby Unit being viewed B&W Night Vision detects low light levels, the infrared LEDs switch on automatically.
- Page 22 Sound Activated Screen and Audio - Auto Wake-Up When Auto Wake-Up is turned on, the Parent Viewer screen stays off to save power when the Baby Unit detects no sound. Once the Baby Unit detects sounds that are louder than the chosen sound sensitivity level, the Parent Viewer screen and speaker turn on automatically.
- Page 23 Night Light Want a softer hue from the Baby Unit’s night light to relax your little one? You can control the brightness of its glow remotely from your Parent Viewer, or directly on the Baby Unit. Adjust the night light with the Parent Viewer Adjust the night light with the Baby Unit •...
-
Page 24: Dim Mode
Dim Mode The Parent Viewer display will dim to conserve energy after 5 minutes of inactivity, in which there were neither any key pressed nor alert received from the Baby Unit. 5 minutes of inactivity Press any button For LF915-2HD and Pairing with LF920-0HD Only Monitoring mode Single CAM mode Select Baby Unit 1... - Page 25 Mount the baby unit on a dry wall (optional) Notes • Check for reception strength and the Baby Unit’s viewing angle before drilling the holes. • The types of screws and anchors you need depend on the composition of the wall. You may need to purchase the screws and anchors separately to mount your Baby Units.
- Page 26 Troubleshooting Symptom Try this Why does the baby Try the following (in the order listed) for a common cure: monitor not respond 1. Disconnect the power to the the Baby Unit(s) and Parent Viewer. normally? 2. Wait a few seconds before connecting power back to the Baby Unit(s) and Parent Viewer. 3.
-
Page 27: Fcc And Ic Regulations
The RBRC seal The RBRC seal on the Li-ion battery indicates that VTech Communications, Inc. is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States and Canada. The program provides a convenient alternative to placing used Li-ion batteries into the trash or municipal waste, which may be illegal in your area. -
Page 28: Disclaimer And Limitation Of Liability
LeapFrog and its suppliers assume no responsibility for any damage or loss resulting from the use of this handbook. the bottom to secure the bottom to secure LeapFrog and its suppliers assume no responsibility for any loss or claims by third parties that may arise through the use of the Baby Unit. the Baby Unit. Align this software. -
Page 29: Technical Specifications
Technical Specifications Frequency control Crystal controlled PLL synthesizer Baby Unit: 2412-2462MHz Transmit frequency Parent Viewer: 2412-2462MHz Channels 5’’ Color LCD (IPS 1280x720 pixels) Maximum power allowed by FCC and IC. Actual operating range Nominal effective range may vary according to environmental conditions at the time of use. Parent Viewer: 3.7V 5000mAh Lithium-ion battery Power requirements Baby Unit power adapter: Output: 5V DC @ 1.5A... - Page 30 Visit our website for more information about our products, downloads, resources and more. leapfrog.com leapfrog.com Read our complete warranty policy online at leapfrog.com/warranty. LeapFrog Enterprises, Inc., a subsidiary of VTech Holdings Limited. TM and © 2021 LeapFrog Enterprises, Inc. All right reserved.
