EN
REMOTE
Terma Sp. z o.o. | Czaple
CONTROLLER
DTIR1
TECHNICAL DATA
Voltage: 2 x 1,5 V (alkaline batteries AA (LR03))
Storage temperature: –10-70°C
Operating temperature: 0-40°C
Dimensions: 80 x 80 x 23 mm
Protection degree: IP30
Radius of action: 12 m
Angle of emission: 40°
DTIR1 multifunctional remote controller is
equipped with an IR transmitter that allows the
user to control a number of TERMA-IR equipped
heating elements fitted to radiators in one room
at the same time. A built-in temperature sensor
enables control and regulation of ambient tem-
perature and it's modern construction guaranties
easy installation and use. Equipped with a 24 hr
timer this controller uses an advanced regulation
algorithm to control the temperature requirements
to suit all of your current needs.
GENERAL INFORMATION
Optimal location for the fitting of the device:
• Recommended height on the wall ~1.5-1.8 m
• Min. 20 cm from the door and away from all
drafts
• Cold walls can decrease displayed ambient
temp.
• Best position is the wall opposite to the
TERMA-IR heating element.
• Before final installation check the connection
quality using hints from 'Signal confirmation'.
• Do not cover the device with towels, clothes etc.

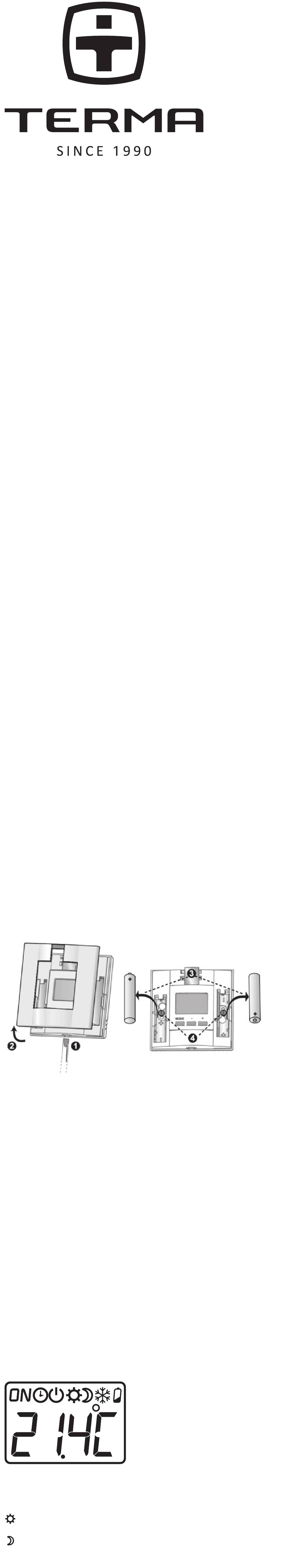

To see mounting holes take off the front panel and
take the batteries out.
pic. 1
SIGNAL CONFIRMATION
IR transmitter emits special control signal:
• in cycles — every 10 minutes,
• when user presses any key,
• every time when modes are changed (i.e. AUTO
changed to ANTIFREEZE).
Every TERMA-IR equipped heating element
placed within the controller's reach and working
in the remote mode will confirm every correctly
received signal on its front panel (see details in the
manual of your heating element).
OPERATING
DTIR1 remote controller has an LCD display and 3
keys for operation and configuration (MODE, +, -).
The user can define 2 levels of ambient tempera-
ture identified by easily remembered symbols:
COMFORT (Higher temperatures)
ECONOMY (Lower temperatures)
pic.3
