Boss WAZA CRAFT Delay Owner's Manual

Main Features
This is a "WAZA CRAFT series" e ect unit featuring analog circuitry painstakingly designed in every detail for the best possible sound.
This is a painstakingly designed analog delay using carefully selected BBD components.
In addition to the sound of the original DM-2, you'll enjoy a custom tone that's been fully tuned-up by BOSS engineers.

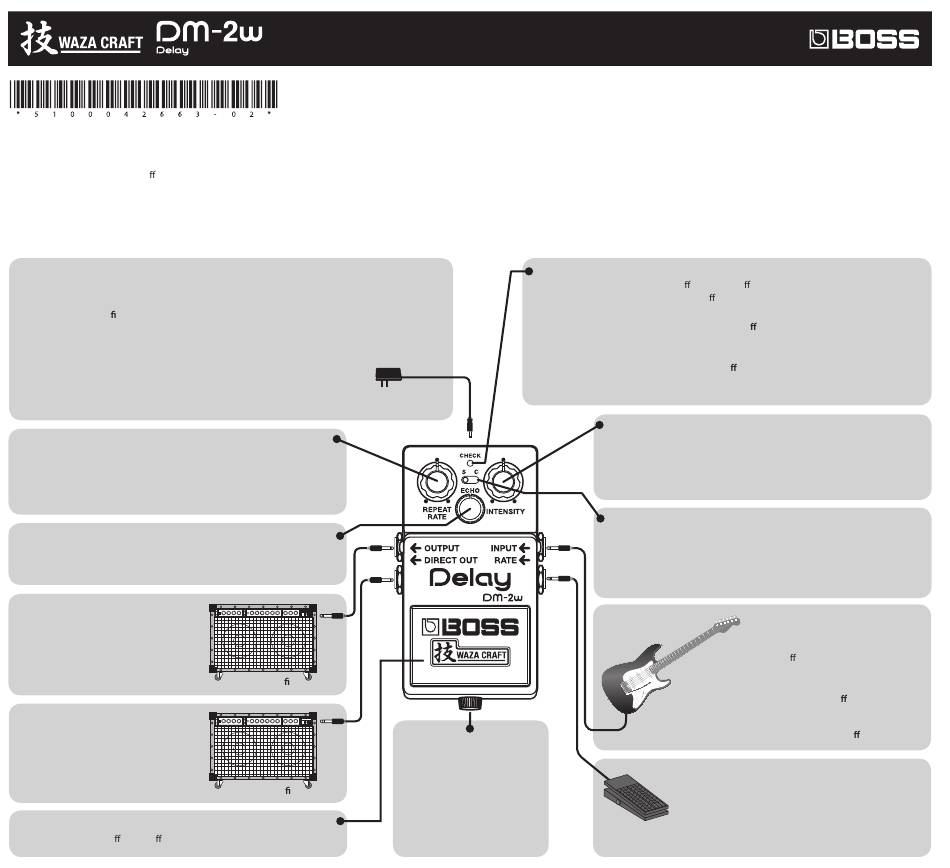

Panel Descriptions
DC IN jack
Accepts connection of an AC Adaptor (PSA series; optional). By using an AC Adaptor, you can play
without being concerned about how much battery power you have left.
* Use only the speci ed AC adaptor (PSA series; optional), and connect it to an AC outlet of the
correct voltage. Do not use any other AC adaptor, since this may cause malfunction.
* If the AC adaptor is connected while a battery is installed, the power
supply is drawn from the AC adaptor.
* We recommend that you keep batteries installed in the unit even
though you'll be powering it with the AC adaptor. That way, you'll be
able to continue a performance even if the cord of the AC adaptor gets
accidently disconnected from the unit.
REPEAT RATE knob
Adjusts the delay time. Turning the knob toward the right shortens the
delay time.
* Delay time (maximum)
S (standard): 300 ms, C (custom): 800 ms
ECHO knob
Adjusts the volume of the delay sound. Turning the knob toward the right
makes the delay sound louder. If you turn the knob all the way to the left,
only the direct sound is heard.
OUTPUT jack
The direct sound and delay sound are
mixed and output from this jack.
If a plug is inserted in the DIRECT OUT
jack, only the delay sound is output from
this jack.
DIRECT OUT jack
Only the direct sound is output from
this jack.
Pedal switch
This switch turns the e ect on/o .
Owner's Manual
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (supplied on a separate sheet). These
sections provide important information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, this manual should be read in its
entirety. The manual should be saved and kept on hand as a convenient reference.
AC Adaptor
(PSA series: optional)
Guitar Ampli er
Thumbscrew
When this screw is loosened, the
pedal will open, allowing you to
change the battery.
Guitar Ampli er
* For instructions on changing
CHECK indicator
This indicator shows whether the e ect is on or o , and also doubles as the battery check
indicator. The indicator lights when the e ect is on.
* If you're powering the unit with a battery and the CHECK indicator goes dim— or
doesn't light at all—when you try to turn the e ect on, the battery is near depletion
and should be replaced. For instructions on changing the battery, refer to "Changing
the Battery."
* The CHECK indicator shows whether the e ect is being applied or not. It does not
indicate whether the power to the device is on or not.
the battery, refer to "Chang-
ing the Battery."
English
INTENSITY knob
Adjusts the number of delay repeats. Turn this knob toward the right to
increase the number of repeats. If you turn the knob all the way to the left,
a single delay is heard.
* If you turn the knob all the way to the right, oscillation might occur.
Mode switch
Switches the tonal character.
S (standard): The original tone of the DM-2.
C (custom): A clear, customized tone with an extended delay time.
INPUT jack
Electric Guitar
This jack accepts signals coming from
a guitar or other musical instrument, or
another e ects unit.
* The INPUT jack doubles as the power switch. Power
to the unit is turned on when you plug into the
INPUT jack; the power is turned o when the cable
is unplugged. To prevent unnecessary battery
consumption, be sure to disconnect the plug from
the INPUT jack when not using the e ects unit.
RATE jack
If you connect an expression pedal (Roland EV-5) to
this jack, you can use it to control the delay time.
* Refer to "Caution When Using the RATE Jack."
Roland EV-5
