Epson PowerLite EB-800F Quick Setup Manual

PowerLite
Quick Setup
IMPORTANT: Before using this product, make sure you read these instructions
and the safety instructions in the online User's Guide.
Note: Your product may differ from the illustrations on this sheet, but the
instructions are the same.

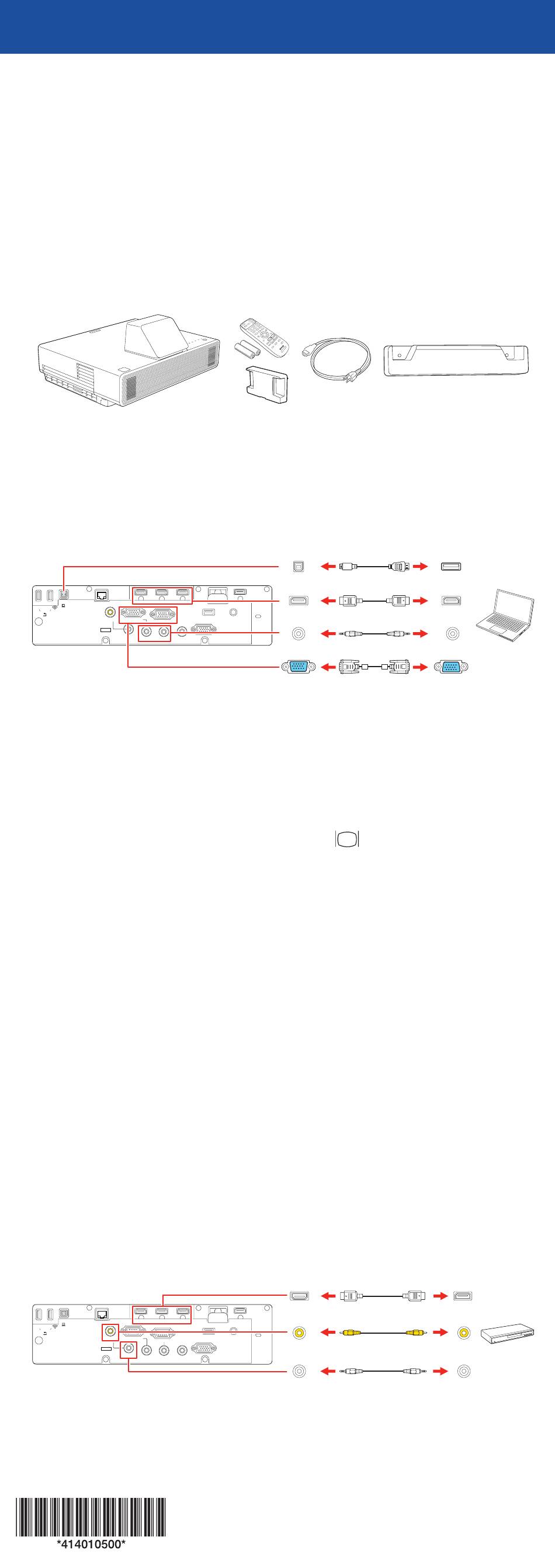

Contents
Make sure your projector box includes all of these parts:
Connect the projector
Choose from the following connections. See the sections below or the online
User's Guide for details.
Computer
USB-B
LAN
1 2
USB-A
Computer1
Video
Audio
HDMI port
Connect one end of an HDMI cable to one of the projector's HDMI ports and
the other end to an HDMI port on your computer.
Computer port
Connect one end of a VGA cable to one of the projector's Computer ports
and the other end to your laptop or computer's
to switch your laptop to external display (see "Troubleshooting" on the back
of this sheet). You can also connect an audio cable to the Audio port that
corresponds with the Computer port you are using.
USB port
Connect the square end of a USB cable to the projector's USB-B (square) port.
Connect the flat end of the cable to any USB port on your computer.
Windows 7 or newer: After turning on the projector, follow the on-screen
®
instructions to install the Epson
on first connection). If the software screen does not display automatically, open
My Computer, Computer, or This PC, then double-click EPSON_PJ_UD.
OS X 10.8.x or higher: After turning on the projector, the setup folder for
USB Display appears in the Finder. Double-click USB Display Installer and
follow the on-screen instructions to install the Epson USB Display software
(only on first connection). If the software screen does not display automatically,
double-click EPSON_PJ_UD, then double-click USB Display Installer.
Video device
Connect multiple video devices and use the Source Search button on the
projector or remote control to switch between them. For more information on
playing sound through the projector, see the online User's Guide.
USB-B
LAN
1 2
USB-A
Video Computer1
Audio
EB-800F/EB-805F
®
HDMI 1 HDMI 2 HDMI 3 HDMI Out
HDBaseT
Monitor Out
DC Out (2.0A)
Computer2
RS232C
Audio1 Audio2 Audio Out
USB Display software (EMP_UDSE.EXE; only
®
HDMI 1 HDMI 2 HDMI 3 HDMI Out
HDBaseT
Monitor Out
DC Out (2.0A)
Computer2
RS232C
Audio1 Audio2 Audio Out
USB cable
HDMI cable
Audio cable
VGA cable
monitor port. Make sure
Remove the two
HDMI cable
RCA video cable
(composite video)
Audio cable
