Multinational Enterprise Topology Design
Figure 9.11. Server Topology for Example Corp. Europe
The data master for Example Corp.'s extranet is in Europe. This data is replicated to two consumer
servers in the US data center and two consumer servers in the Asia data center. Overall, Example
Corp. requires ten servers to support the extranet.

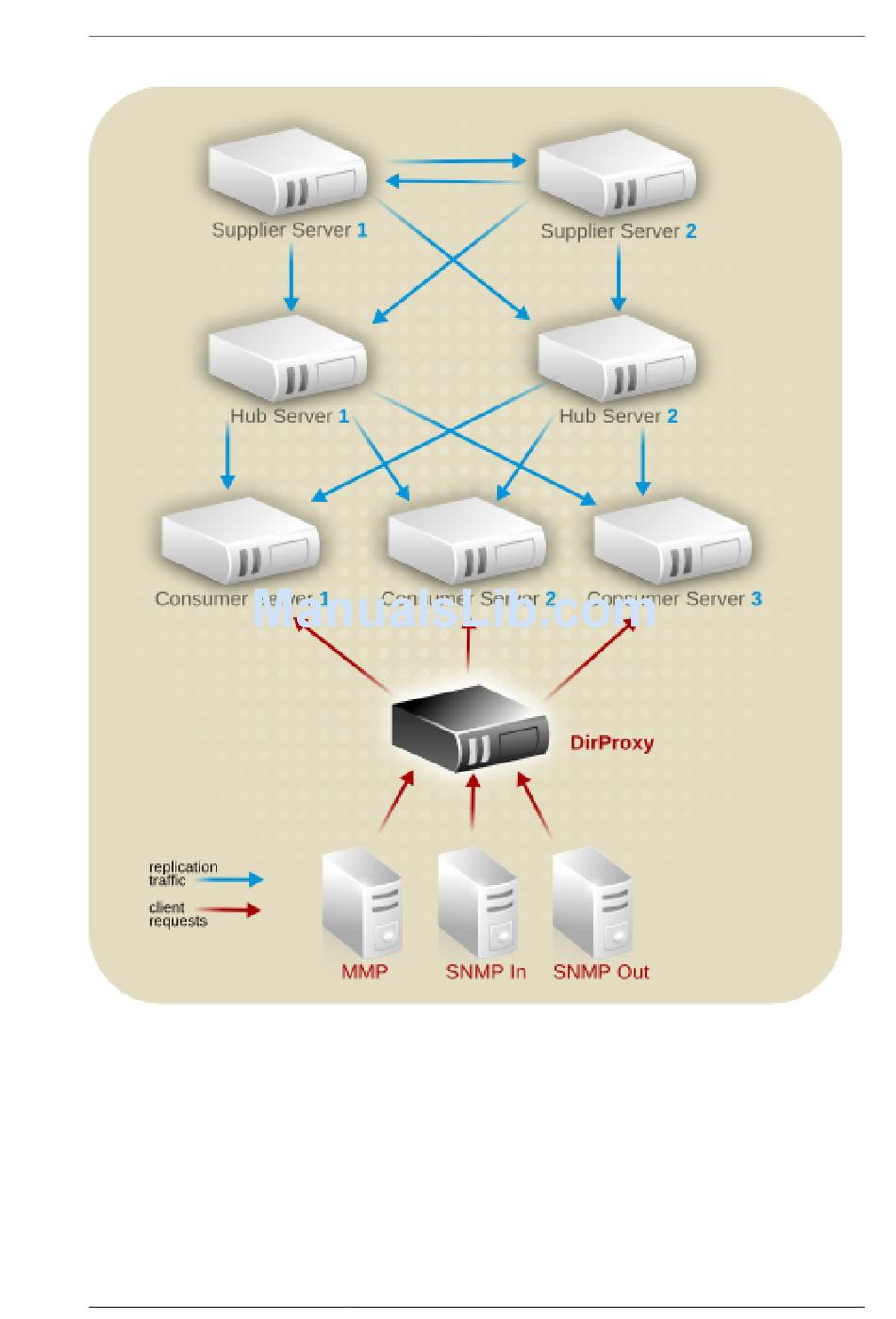

The following diagram illustrates the server architecture of Example Corp.'s extranet in the European
data center:
