Designing Synchronization; Windows Synchronization Overview - Red Hat DIRECTORY SERVER 8.1 - DEPLOYMENT Deployment Manual

Chapter 7.

Designing Synchronization

An important factor to consider while conducting the site survey for an existing site
"Performing a Site Survey") is to include the structure and data types of Active Directory directory
services. Through Windows Sync, an existing Windows directory service can be synchronized and
integrated with the Directory Server, including creating, modifying, and deleting Windows accounts
on the Directory Server or, oppositely, the Directory Server accounts on Windows. This provides an
efficient and effective way to maintain directory information integrity across directory services.

7.1. Windows Synchronization Overview

The synchronization process is analogous to the replication process: it is enabled by a plug-in and
configured and initiated through a synchronization agreement, and a record of directory changes is
maintained and updates are sent according to that log.

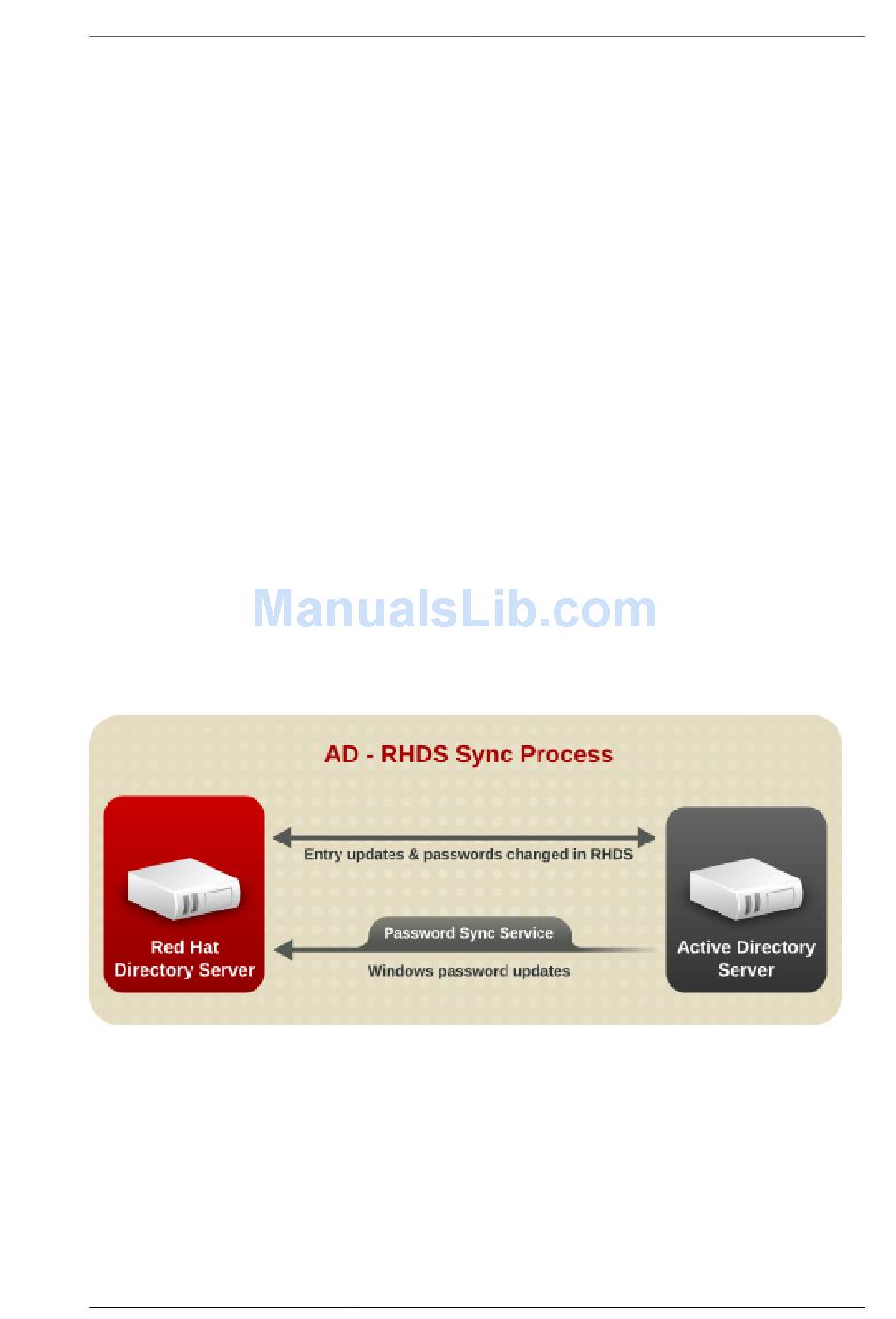

There are two parts to the complete Windows Synchronization process:
• User and Group Sync. As with multi-master replication, user and group entries are synchronized
through a plug-in, which is enabled by default. The same changelog that is used for multi-master
replication is also used to send updates from the Directory Server to the Windows synchronization
peer server as an LDAP operation. The server also performs LDAP search operations against its
Windows server to synchronize changes made to Windows entries to the corresponding Directory
Server entry.
• Password Sync. This application captures password changes for Windows users and relays those
changes back to the Directory Server over LDAPS. It must be installed on the Active Directory
machine.
7.1.1. Synchronization Agreements
Synchronization is configured and controlled by one or more synchronization agreements . These
are similar in purpose to replication agreements and contain a similar set of information, including
the hostname and port number for the Windows server and the subtrees being synchronized. The
Directory Server connects to its peer Windows server via LDAP or LDAP over SSL to both send and
receive updates.
(Section 2.3,
99
