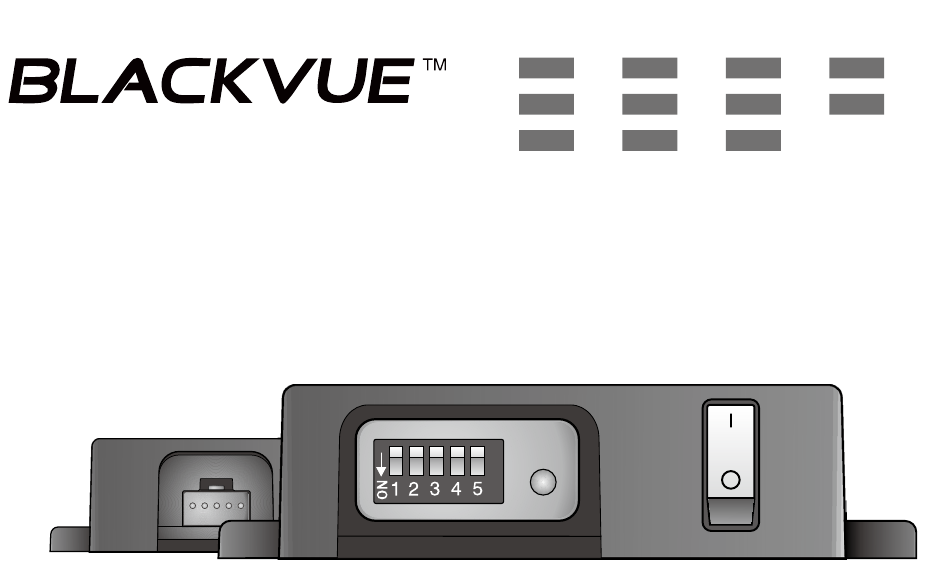

- Page 1 Hardwiring Kit for Parking Mode English Français Tiếng Việt 中文 日本語 Español Deutsch ภาษาไทย Power Magic Pro Manual Pусский Italiano Indonesian...
-
Page 2: Double-Sided Tape
Contents 1 2 3 4 5 Power Magic Pro Double-Sided Tape Wire Harness Screws... - Page 3 Wire Harness Power Magic Pro BATT(+) to Constant Power fuse slot to ground point DASHCAM ACC(+) to BlackVue dashcam to Switched fuse slot...
- Page 4 Parking Mode Switch OFF Parking mode disabled When the ignition is off: The Power Magic Pro blocks power from your dashcam. Driving mode enabled When the ignition is on: The Power Magic Pro powers your dashcam in driving mode.
- Page 5 Cut-Off Voltage Settings For regular cars: For heavy vehicles: 12.5V 22.8V 23.2V (±0.1V) (±0.1V) (±0.1V) (±0.1V) 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 Photos Example fuse panel diagram Red ACC(+) wire connected Red ACC(+) and yellow BATT(+) Ground (GND) wire connected...
- Page 6 Configurable Voltage Cut-Off and Timer Settings | Parking Mode Switch The Power Magic Pro powers your dashcam when the engine is off by hardwiring it to the car battery. A low voltage power cut-off function and a parking mode timer protect your car battery from discharge.
