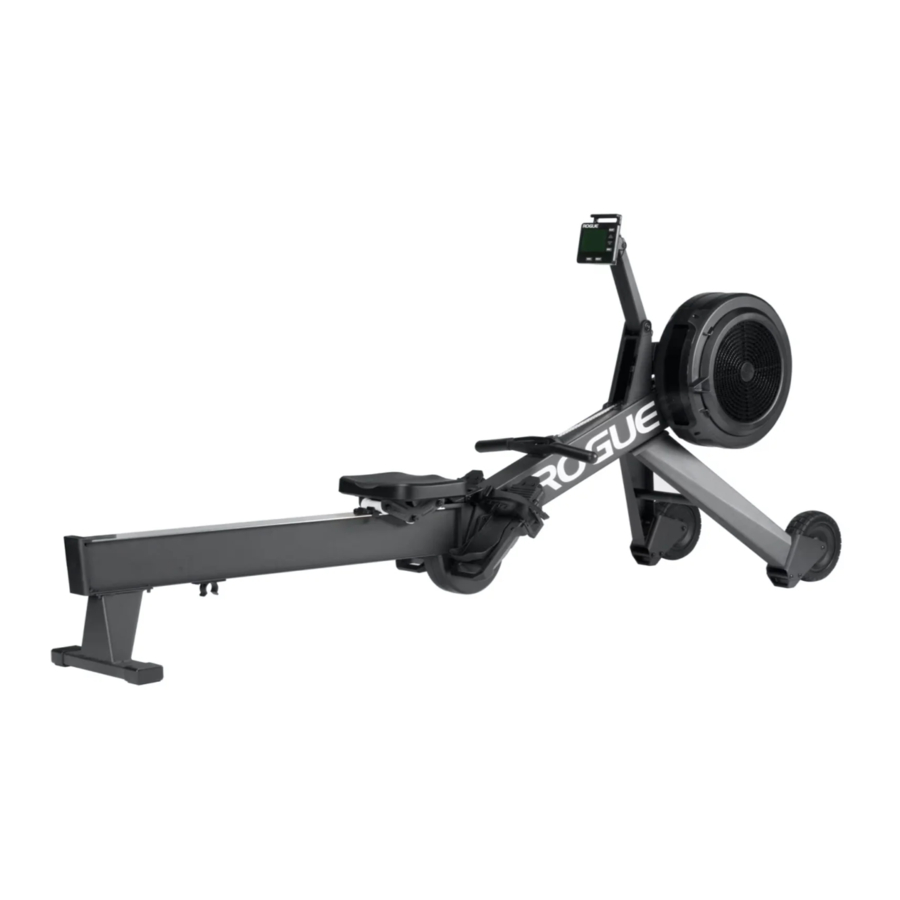

ROGUE ECHO Manual

PARTS AND TOOLS USED

ASSEMBLY

1. • TAKE OUT THE FRAME (80)
   • USE THE WRENCH (S27) IN THE HARDWARE KIT TO REMOVE THE 6 SCREWS ON THE PROTECTION BOARD
2. ASSEMBLE THE END CAP (33) ONTO THE FRAME (80)

3. FIX THE TURF TIRE WHEELS (L) AND (R) ONTO THE FRONT FOOT TUBE ASSEMBLY (56) USING M10 HEX NUTS (32)

4. 1. • SPREAD ROWER APART BY 12 INCHES
      • INSERT ROUND CROSS BAR OF LEG ASSEMBLY (56) INTO PLASTIC RECEIVER BASE (80)
      • PUSH ROWER BACK TOGETHER ALL THE WAY UNTIL YOU SEE THE BOLT HOLES OF THE LEGS LINE UP WITH THREADED HOLES OF BASE
        * RECOMMENDED TO USE TWO PEOPLE FOR THIS STEP

   2. • STAND THE FRAME VERTICALLY
      • USE THE M8 * 20 (57) HEX HEAD BOLT TO FIX THE FRONT FOOT TUBE ASSEMBLY TO THE FRAME (80)


5. FIX THE LEFT (L) AND RIGHT (R) FOOT PEDAL ASSEMBLIES TO THE FRAME (80) USING A 1/4-20 FULL THREAD SCREW (83) (PAN HEAD SCREW)

6. • FIX THE REAR FOOT TUBE ASSEMBLY (108) TO THE FRAME (80) USING 1/4-20 X16MM SOCKET HEAD SCREWS (111)
   • LOCK IT WITH WRENCH (S27)

7. • FIX THE SEAT CUSHION (123) TO THE SEAT BRACKET ASSEMBLY (122) USING A 20MM FULL THREAD (20) SOCKET PAN HEAD SCREW (3/16-24)
   • SEE ORIENTATION IN IMAGE FOR CORRECT SEAT ALIGNMENT (123)

8. • HOLD TIRE WITH YOUR FOOT WHEN UNFOLDING THE UNIT BY SEPARATING THE REAR MAIN FRAME ASSEMBLY FROM THE FRONT FOOT TUBE ASSEMBLY
   • PLACE HORIZONTALLY


9. • FIRST, LIFT THE LATCH HANDLE (94) ALL THE WAY FORWARD UNTIL IT CATCHES ON THE HOOK (98)
   • PULL THE HANDLE (94) BACK DOWN AND PUSH IT FIRMLY CLOSED.

10. LIFT THE REAR LATCH (95) UP BY HAND, AND THE ENTIRE BUCKLE WILL BE RELEASED, ALLOWING THE FRONT AND REAR FRAMES TO FOLD UP

11. • INSTALL THE BATTERIES BEFORE ASSEMBLING THE CONSOLE WITH THE ROWER
    • REMOVE THE SCREWS AND NUTS FROM THE CONSOLE AND INSTALL THE CONSOLE ONTO THE ROWER
    • MAKE SURE THE TAB ON THE ROWER GOES INSIDE THE CURVED POCKET OF THE CONSOLE
    • MAKE SURE THE WIRE CANNOT GET PINCHED
      *IF THE WIRE CAN BE PINCHED, YOU DO NOT HAVE THE ROWER TAB INSIDE THE CURVED POCKET
    • TIGHTEN THE SCREWS WITH A WRENCH (S27)
    • INSERT THE SIGNAL WIRE INTO THE CONSOLE.

12. • CHECK TO MAKE SURE THE ROWER IS STABLE, AND FUNCTIONS PROPERLY
    • ROW EASY AT FIRST TO CONFIRM FUNCTION
