1

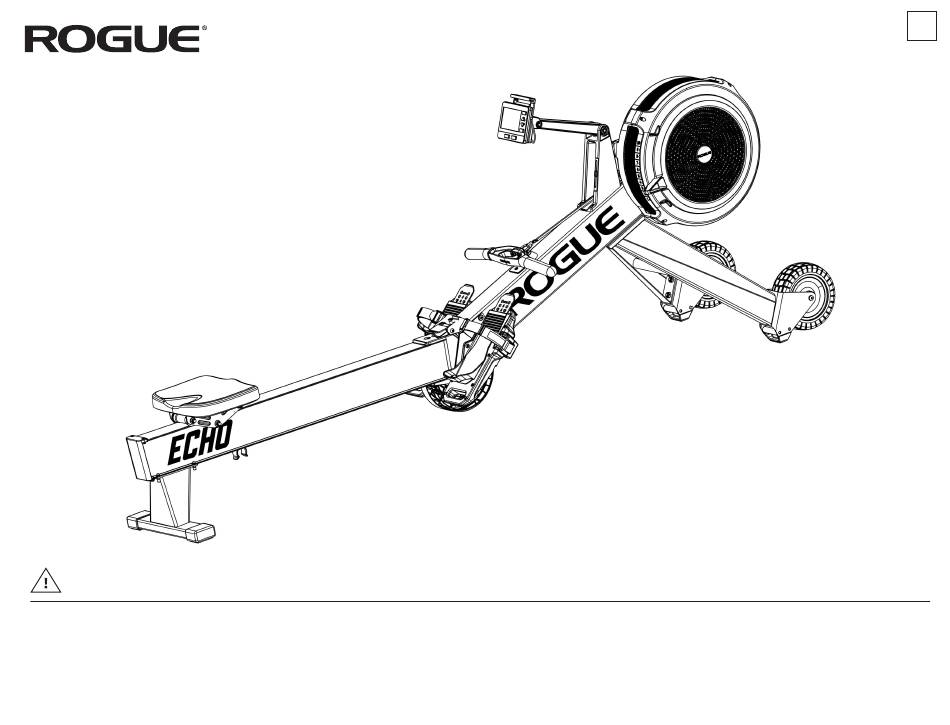

ECHO ROWER
IMPORTANT SAFETY INFORMATION
WARNING:
MISUSE OF THIS CAN RESULT IN SEVERE INJURY.
Both Rogue Fitness and buyer disclaim any express or implied warranty, including, without limitation, warranties or merchantability and/
or fitness for a particular purpose with respect to the equipment. Buyer assumes all liability to use of equipment.
Rogue Fitness • 545 E 5th Ave. Columbus, Ohio 43201 • Customer Service: 614-358-6190 • Team@RogueFitness.com
Advertisement
Related Manuals for ROGUE ECHO ROWER
Summary of Contents for ROGUE ECHO ROWER
- Page 1 MISUSE OF THIS CAN RESULT IN SEVERE INJURY. Both Rogue Fitness and buyer disclaim any express or implied warranty, including, without limitation, warranties or merchantability and/ or fitness for a particular purpose with respect to the equipment. Buyer assumes all liability to use of equipment.
- Page 2 PARTS AND TOOLS USED...
- Page 3 STEP 1 • TAKE OUT THE FRAME (80) • USE THE WRENCH (S27) IN THE HARDWARE KIT TO REMOVE THE 6 SCREWS ON THE PROTECTION BOARD...
- Page 4 STEP 2 • ASSEMBLE THE END CAP (33) ONTO THE FRAME (80)
- Page 5 STEP 3 • FIX THE TURF TIRE WHEELS (L) AND (R) ONTO THE FRONT FOOT TUBE ASSEMBLY (56) USING M10 HEX NUTS (32)
- Page 6 STEP 4-1 • SPREAD ROWER APART BY 12 INCHES • INSERT ROUND CROSS BAR OF LEG ASSEMBLY (56) INTO PLASTIC RECIEVER BASE (80) • PUSH ROWER BACK TOGETHER ALL THE WAY UNTIL YOU SEE THE BOLT HOLES OF THE LEGS LINE UP WITH THREADED HOLES OF BASE * RECOMMENDED TO USE TWO PEOPLE FOR THIS STEP...
- Page 7 STEP 4 • STAND THE FRAME VERTICALLY • USE THE M8 * 20 (57) HEX HEAD BOLT TO FIX THE FRONT FOOT TUBE ASSEMBLY TO THE FRAME (80)
- Page 8 STEP 5 • FIX THE LEFT (L) AND RIGHT (R) FOOT PEDAL ASSEMBLIES TO THE FRAME (80) USING A 1/4-20 FULL THREAD SCREW (83) (PAN HEAD SCREW)
- Page 9 STEP 6 • FIX THE REAR FOOT TUBE ASSEMBLY (108) TO THE FRAME (80) USING 1/4-20 X16MM SOCKET HEAD SCREWS (111) • LOCK IT WITH WRENCH (S27)
- Page 10 STEP 7 • FIX THE SEAT CUSHION (123) TO THE SEAT BRACKET ASSEMBLY (122) USING A 20MM FULL THREAD (20) SOCKET PAN HEAD SCREW (3/16-24) •SEE ORIENTATION IN IMAGE FOR CORRECT SEAT ALIGNMENT (123)
- Page 11 STEP 8 • HOLD TIRE WITH YOUR FOOT WHEN UNFOLDING THE UNIT BY SEPARATING THE REAR MAIN FRAME ASSEMBLY FROM THE FRONT FOOT TUBE ASSEMBLY • PLACE HORIZONTALLY ⚠ CAUTION | PINCH POINT WARNING KEEP YOUR HANDS CLEAR OF THE HINGE- DO NOT PUT FINGERS ON THE LATCH WHEN CLOSING...
- Page 12 STEP 9 • FIRST, LIFT THE LATCH HANDLE (94) ALL THE WAY FORWARD UNTIL IT CATCHES ON THE HOOK (98) • PULL THE HANDLE (94) BACK DOWN AND PUSH IT FIRMLY CLOSED. ⚠ CAUTION PINCH POINT WARNING...
- Page 13 STEP 10 • LIFT THE REAR LATCH (95) UP BY HAND, AND THE ENTIRE BUCKLE WILL BE RELEASED, ALLOWING THE FRONT AND REAR FRAMES TO FOLD UP ⚠ CAUTION PINCH POINT WARNING...
- Page 14 STEP 11 • INSTALL THE BATTERIES BEFORE ASSEMBLING THE CONSOLE WITH THE ROWER • REMOVE THE SCREWS AND NUTS FROM THE CONSOLE AND INSTALL THE CONSOLE ONTO THE ROWER • MAKE SURE THE TAB ON THE ROWER GOES INSIDE THE CURVED POCKET OF THE CONSOLE •...
- Page 15 STEP 12 • CHECK TO MAKE SURE THE ROWER IS STABLE, AND FUNCTIONS PROPERLY • ROW EASY AT FIRST TO CONFIRM FUNCTION...
